Container Gantry Cranes
Container Gantry Cranes

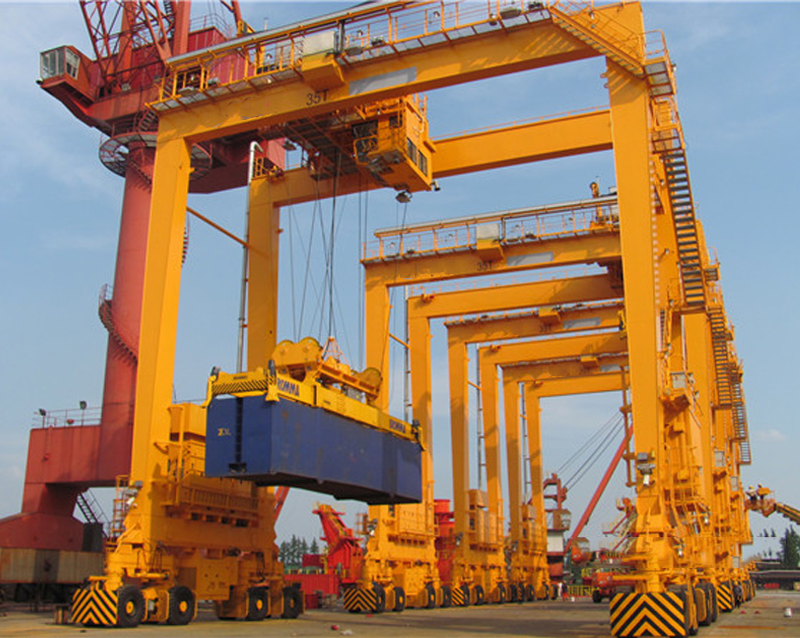

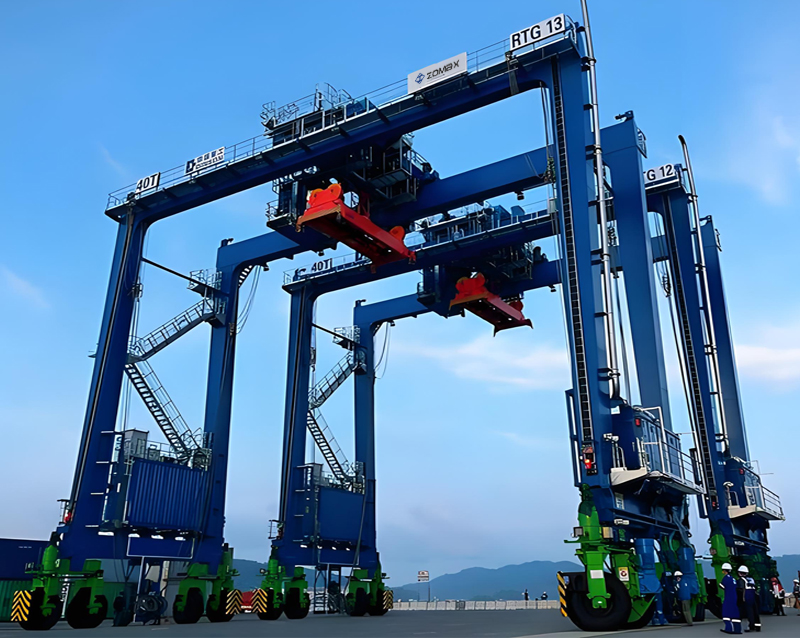

Zomax RTG cranes are designed for space-efficient operations in container ports, terminals, and logistics, offering top container handling performance. They are equipped with the latest core lifting components (reducers, motors, controllers). The cranes are versatile and maneuverable, supported on pneumatic rubber tires making them less sensitive to ground unevenness.
A key feature of Zomax RTG cranes is that they can travel straight, sideways, 0-90 degree turns and rotate in place. They are available with diesel, hybrid, all-electric or battery power, and optional multi-function variable frequency anti-sway micro-motion system and electronic anti-sway system to enhance container stability and reduce sway during operations.
Durable rubber tires provide excellent traction on various terrains
Multiple power options available, including diesel engines, mains electricity, and low-power diesel engines combined with lithium batteries, offering energy-efficient and environmentally friendly solutions
Equipped with a two-way flexible resistance anti-sway system, with optional multi-functional variable frequency anti-sway micro-motion and electronic anti-sway systems. These systems provide significant anti-sway effects, ease of maintenance, and improved container stability.
CMS intelligent service management system allows real-time monitoring of the crane's operational status.
Equipped with vector frequency conversion, power feedback (when using mains electricity or lithium batteries), and torque balance control technology for energy efficiency, convenience, and high performance
Features automatic fault detection and real-time data display for enhanced safety and reliability.
Advanced large-vehicle correction and fine-tuning technology enables personalized steering, jacking, and anti-rollover design for large vehicles.
Offers a variety of operational modes, including manual, semi-automatic, automatic, and remote operation, ensuring stable performance and cutting-edge technology.
With automatic operation positioning, intelligent box-to-box, intelligent trajectory control, intelligent safety protection and other core technologies
Comprehensive safety features such as strong wind alarms and dynamic safety scanning are integrated.
Equipped with full safety indicators and overload protection devices to ensure maximum safety for both operators and equipment.
The electric drive system incorporates advanced full-digital AC frequency conversion technology and PLC-controlled speed regulation for flexible and precise control.
| Lifting capacity | 30 tons to 350 tons |
| Lifting height | Tailored |
| Span | 18m to 50m |
| Cantilever | Tailored |
| Lifting mechanism | Open winch trolley |
| Rated voltage： | 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC |
| Temperature | Standard temperature: -25 - +40°C |
| Control options | Cabin |
| Working class | A6 |
| Safety functions | Two-way flexible resistance anti-sway systemFully digital AC frequency conversion and PLC-controlled speed regulationCMS intelligent service management systemAutomatic positioning and intelligent systems including box-to-box handling, trajectory control, and intelligent safety protectionWind alarm and safety dynamic scanningEtc. |
Versatile functionality with a broad operating range
Excellent performance, high efficiency
Safe, stable and reliable
User-friendly design, easy maintenance, and long service life
Low sensitivity to ground unevenness
Go straight, sideways and turn 0-90 degrees and rotate in place.
Flexible control and high precision
Main Structure: Comprises the main beam (box-type, load-bearing), support legs connected by rods for lateral rigidity, and ground beams (box-type) linked to the large vehicle via a pin shaft.
Hoisting Mechanism: Includes steel wire ropes, drums, brakes, and motors for lifting.
Trolley Mechanism: Consists of the operator's cabin, trolley frame, and hoisting equipment, with smooth operation via a rack-and-pinion or dual/single-axis drive. The operator controls the crane with four limit positions.
Main Car Mechanism: Supported by 4, 8, or 16 tubeless tires, with the travel mechanism either four-wheel or two-wheel drive. Includes a manual correction system and anti-collision devices, plus a 0° to 90° steering mechanism for easy on-site operation.
Power Transmission System: Includes diesel engine-electric mode (driving a DC motor) and diesel engine-hydraulic mode (driving a hydraulic motor). The electric mode is preferred due to simpler maintenance.
Safety Features: Features overload protection, overspeed protection, high water temperature and low oil pressure indicators, wind speed indicators, anti-typhoon anchoring, emergency stop buttons, and limit switches.
Zomax rubber-tyred container gantry cranes provide comprehensive and advanced solutions for your material handling needs. Its sturdy structure, excellent lifting capacity and advanced automation features make it an ideal choice for various industries from construction, ports, terminals, logistics, etc.
