Container Gantry Cranes
Container Gantry Cranes

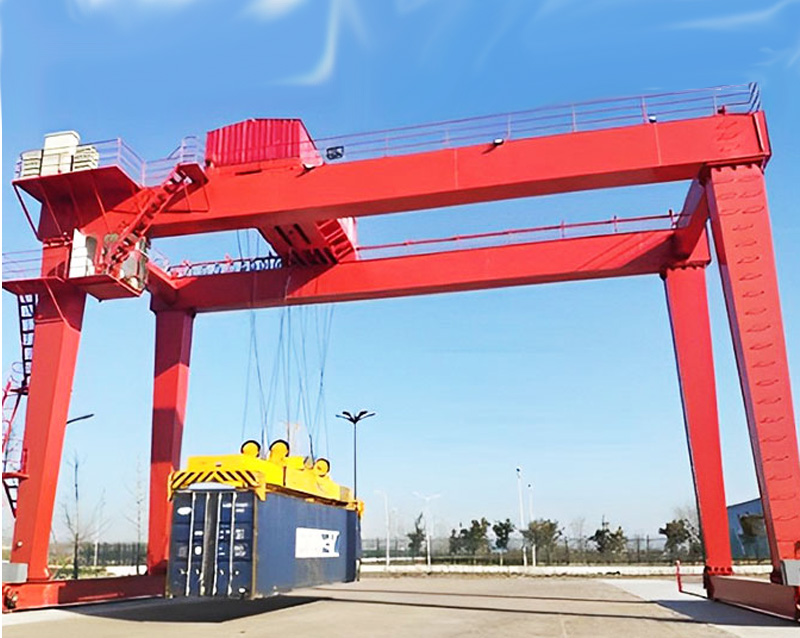

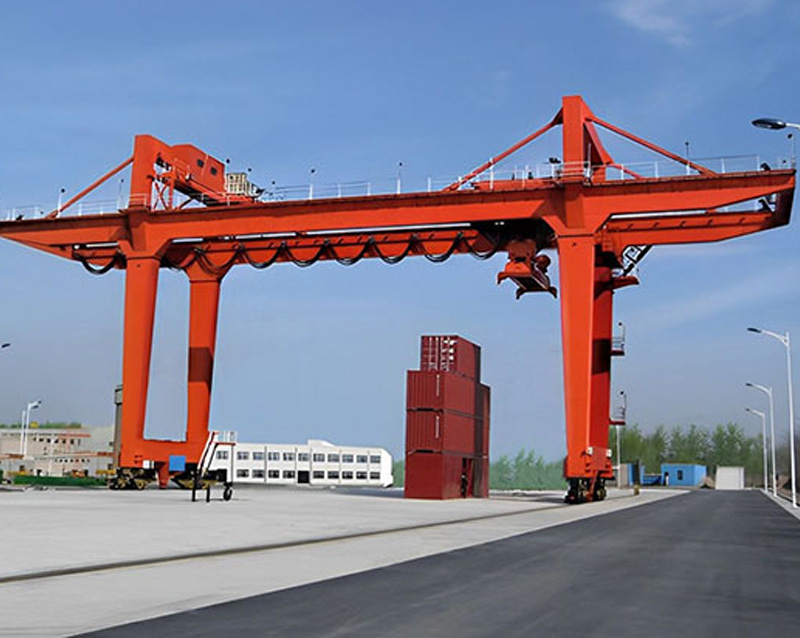

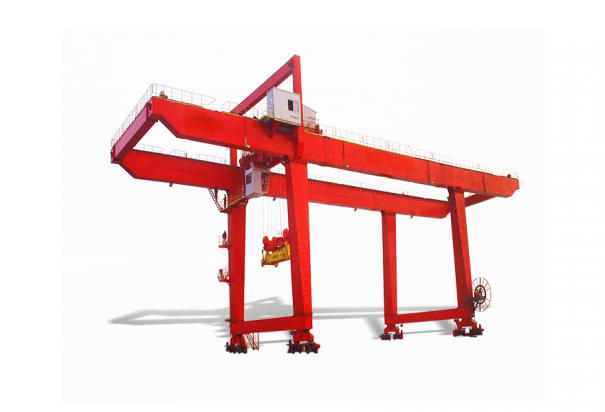

Zomax Rail-Mounted Gantry Crane (RMG crane) is the product of decade years of crane design experience and professional knowledge. The cranes offer accurate, smooth, and efficient container handling in high throughput intermodal yards.
Operating on rails supported by multiple sets of steel wheels, a range of features are equipped to meet each individual specific demand, such as telescopic container spreaders for handling containers of various sizes, operator cabins for remote operation with with a comprehensive view, rotation mechanism that allow the spreader to rotate containers freely, etc. Zomax cranes are an unmissable choice for your operational needs. we can customize RMG cranes to meet your unique requirements.
Telescopic container spreaders are available to accommodate containers of various sizes
Upward rotation (trolley rotation) and downward rotation (hanger rotation) are optional to meet different rotation requirements
Cantilevered and non-cantilevered designs are available to suit specific application needs.
Multiple operation modes are supported, including manual, semi-automatic, automated, and remote operation
Equipped with a two-way flexible resistance anti-sway system, with optional multi-functional variable frequency anti-sway micro-motion and electronic anti-sway systems. These systems provide significant anti-sway effects, ease of maintenance, and improved container stability.
The electrical drive uses fully digital AC frequency conversion and PLC-controlled speed regulation for enhanced precision and flexible control.
CMS intelligent service management system allows real-time monitoring of the crane's operational status.
Automatic positioning and intelligent systems including box-to-box handling, trajectory control, and intelligent safety protection, are available
A comprehensive range of safety measures include strong wind alarm and safety dynamic scanning ensure optimal safety.
| Lifting capacity | 30 tons to 60 tons |
| Lifting height | 20m to 40m |
| Span | 9m to 18m |
| Cantilever | Tailored |
| Lifting mechanism | Open winch trolley |
| Rated voltage： | 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC |
| Temperature | Standard temperature: -25 - +40°C |
| Control options | Cabin |
| Working class | A6-A8 |
| Safety functions | Two-way flexible resistance anti-sway systemFully digital AC frequency conversion and PLC-controlled speed regulationCMS intelligent service management systemAutomatic positioning and intelligent systems including box-to-box handling, trajectory control, and intelligent safety protectionWind alarm and safety dynamic scanningEtc. |
Versatile functionality with a broad operating range
Excellent performance, high efficiency
Safe, stable and reliable
User-friendly design, easy maintenance, and long service life
Precise and flexible control
Energy saving and environmental protection
Effective anti-sway capabilities
Main Beam: A frame beam composed of two box-shaped end beams, supported by both rigid and flexible legs.
Suppport Legs: Both rigid and flexible legs adopt a box-shaped structure.
Travel Mechanism: Comprises the main travel mechanism for overall crane movement and the trolley travel mechanism for lateral movement.
Hoisting Mechanism: Responsible for lifting and lowering, with either a wire rope or rigid hoisting system. Anti-sway is achieved through damping in the wire rope system and rigid components in the rigid system.
Electrical System: Consists of the electrical room and the operating trolley, which are separated to reduce the load on the trolley.
Operating System: Includes the operator’s cab, which is used to control various crane operations.
Other Components: Includes precision-positioning rotating trolleys, automatic telescopic hoisting devices, and spatial eight-rope anti-sway mechanisms, all of which contribute to enhancing the operational accuracy and stability of the crane.

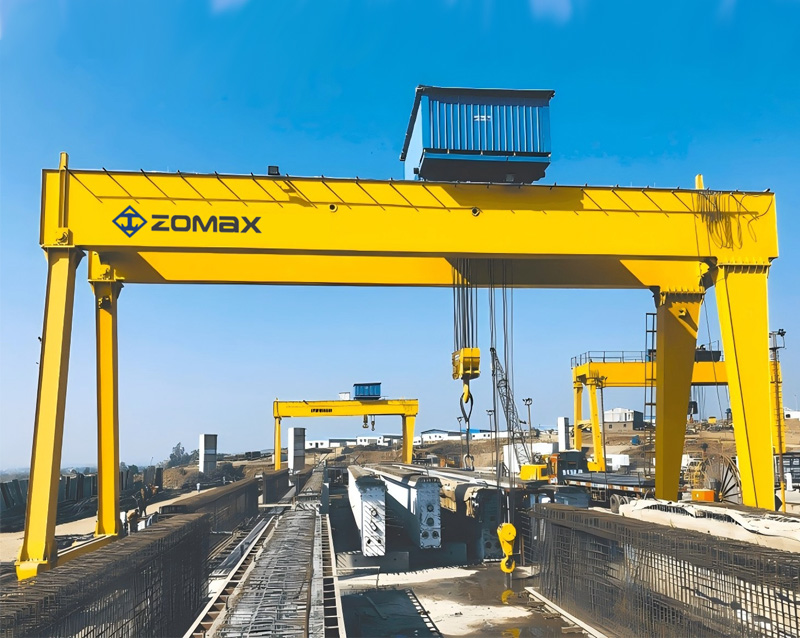

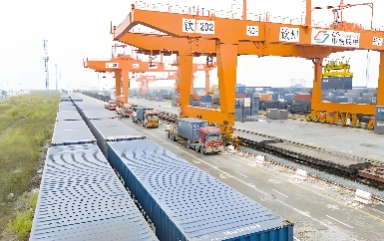

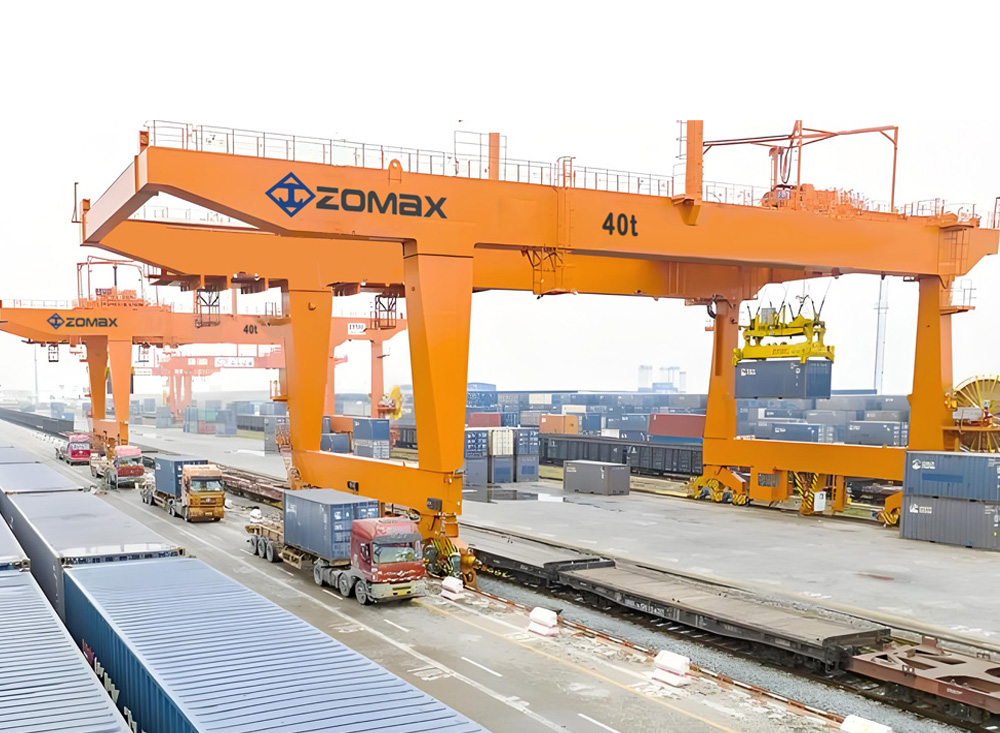

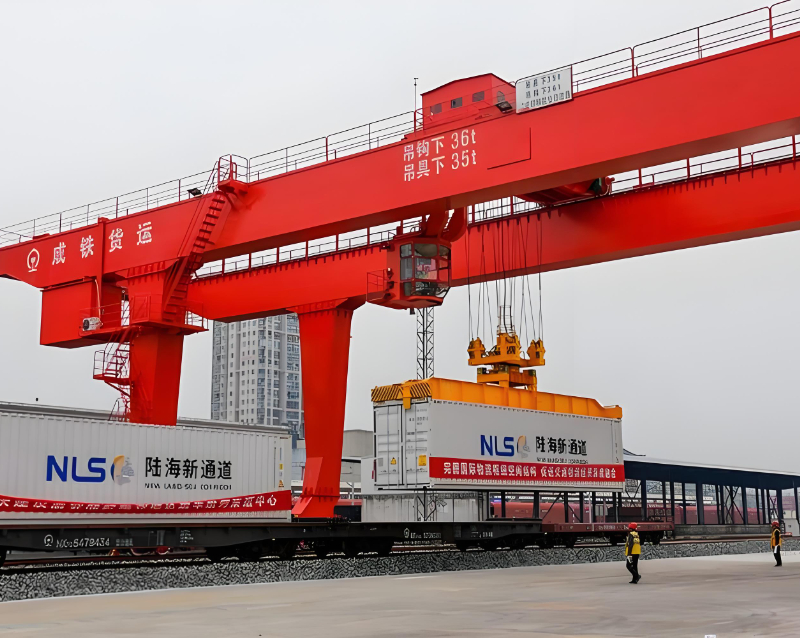

Zomax RMG cranes are ideal for container loading and unloading operations in container yards, ports, terminals, railways, and intermodal facilities. They can also be used in port infrastructure projects to handle heavy materials such as steel beams, concrete blocks and precast panels.They are also employed in shipyards and ship repair facilities to lift and move large ship components. Furthermore,They can also be used for bulk material handling efficiently managing materials like coal, grain and ore. When equipped with specialized grabs or buckets, they offer swift and efficient lifting and movement of large quantities of bulk material.
