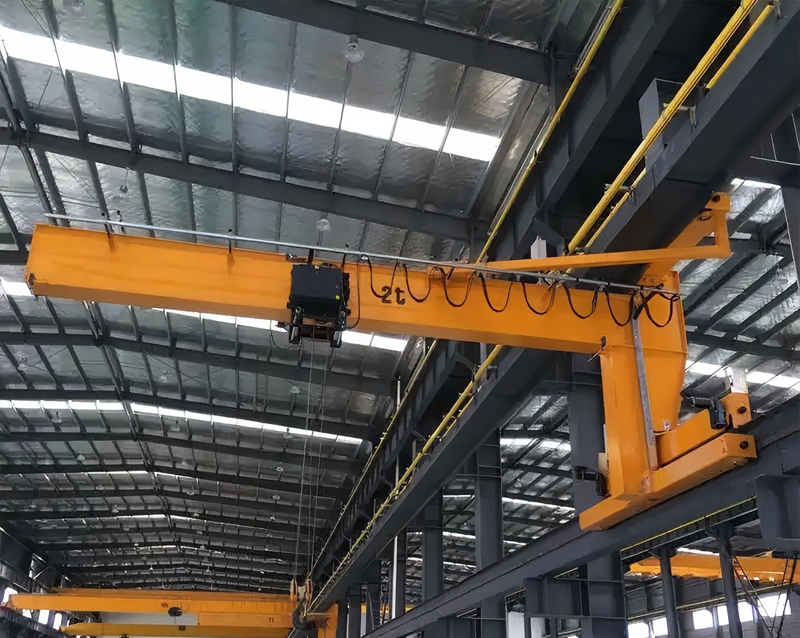

Zomax 5 tons wall travelling jib crane provide an economical, practical and space-saving solution for material handling. Mounted on building walls, they can operate independently or travel below the level of the overhead crane on crane rails that overlap on the building wall, providing a profitable supplement to the overhead crane.
we provide flexible and optional solutions to meet individual user needs. Various cantilever designs are available. Also a selection of lifting mechanisms is for option.
Contact us for more information. Our engineers work closely with you to deliver a crane solution precisely tailored to meet your specific needs.
Zomax wall travelling jib cranes offer a compact, cost-efficient, and highly adaptable solution for modern material handling. Mounted directly to building walls or supporting structures, they are ideal for maximizing workspace without the need for additional floor or foundation installation. Designed to operate below overhead cranes, they serve as a flexible and profitable supplement to existing systems.

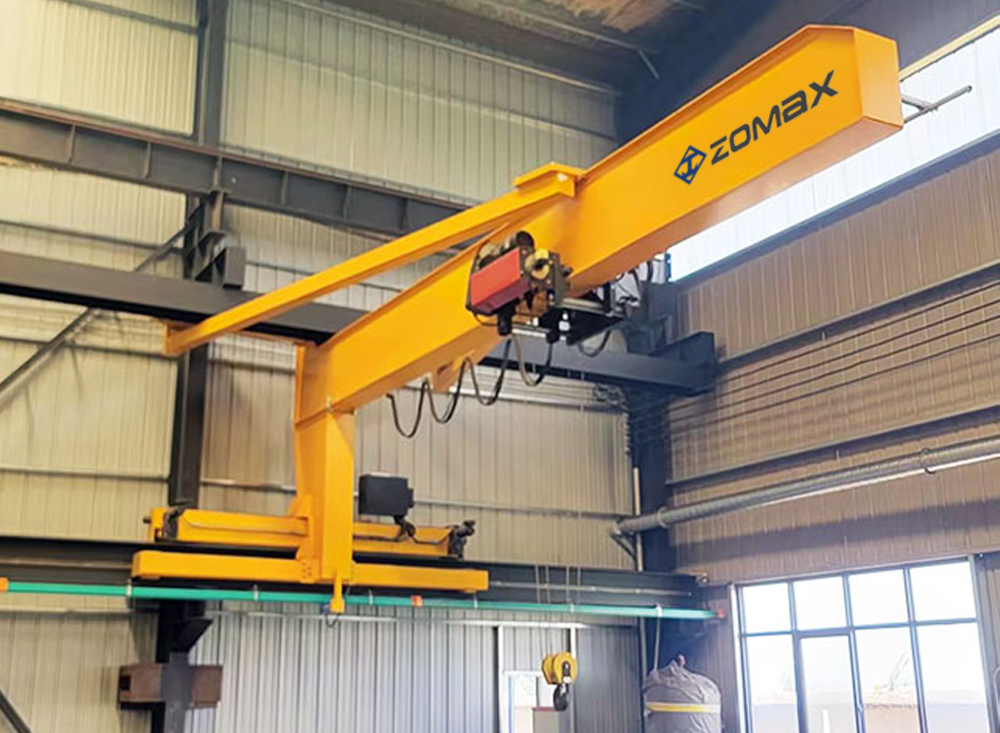

Wall travelling jib cranes operate by combining a fixed wall-mounted track system with a cantilever arm and a hoisting mechanism:
Fixed Bracket & Track: Installed on building walls or vertical supports, guiding the crane along a straight horizontal path.

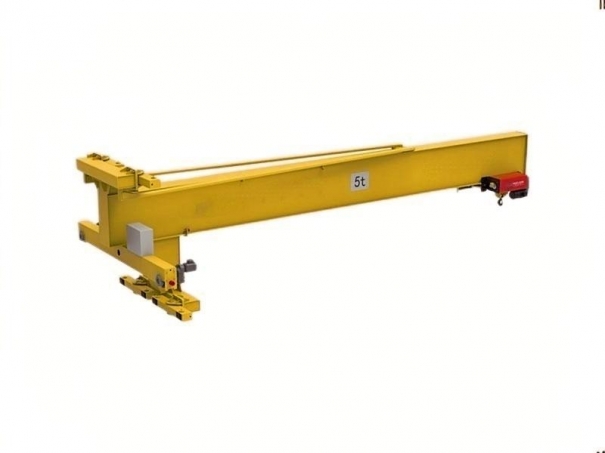

Cantilever Arm: Connected to the bracket, available in multiple designs (I-beam, box beam, or tie rod) to suit different lifting heights and clearance needs.
Hoisting Mechanism: Includes manual chain hoists, electric chain hoists, or wire rope hoists for vertical lifting.
Control Options: Operated via pendant or wireless remote, depending on site conditions and user preferences.
This crane type travels closer to the ceiling than many others, enabling better overhead space utilization.
| Feature | Wall Travelling Jib Crane | Pillar-Mounted Jib Crane | Overhead Crane |
|---|---|---|---|
| Mounting | Wall-mounted | Floor-mounted | Ceiling-mounted |
| Space Efficiency | Excellent | Moderate | Moderate |
| Installation Cost | Low | Medium | High |
| Flexibility | High for side-wall use | Fixed-area only | Whole facility coverage |
| Ideal Use | Supplementary/local handling | Local lifting | Large-scale lifting |
Zomax wall travelling jib cranes are designed with operator safety and equipment longevity in mind:
High-strength steel structure ensures durability and load stability.
Reliable cable carrier system provides smooth and safe power transmission.
Multiple voltage compatibility: 220V–660V, 50–60Hz, 3-phase AC.
Built-in limit switches and overload protection prevent unsafe operation.
Certified components and industrial-grade hoists for long-term, safe usage.
Installation Requirements: Must be installed on a structurally sound wall or support.
Capacity & Span: Supports lifting up to 5 tons with spans up to 10 meters.
Operational Environment: Suitable for both indoor and sheltered outdoor use, within -20°C to +40°C.
Hoist Type: Choose based on load, frequency of use, and precision needs (manual, electric chain, or wire rope).
Workspace Layout: Best suited for facilities needing localized lifting near walls or in long, narrow bays.
Multiple cantilever designs,I beam cantilever, box cantilever , & tie rod cantilever to meet different requires in terms of lifting height, overhead clearance, or other special needs, etc.
High-strength steel provide robust structure to ensure longlife service
Hoist options: manual, electric chain, and wire rope hoist, to meet different load requirements and operational preferences.
Robust festooning and easy running with reliable cable carriers
The supporting structure or the walls of the building need to offer anchor point and counterbalance weight
Travelling closer to the ceiling than many other types of travelling cranes.
| Lifting capacity | Up to 5tons |
| Span | Up to 10m |
| Jib Cantilever | I beam cantilever, box cantilever or tie rod cantilever |
| Hoist options | Manual chain, electric chain, and wire rope hoist |
| Rated voltage： | 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC |
| Crane type | Wall mounted travelling crane |
| Temperature | Standard temperature: -20 - +40°C |
| Control options | Pendant / remote |
| Environment | Indoors and outdoors |
| Working class | A3 |
Simple structure, cost-efficient
Fast and precise tools for material handling
Easily adapts to your multipurpose facility with a wide range of options
Enhanced safety and productivity
Efficient and accurate load handling up to 5 tons
Simple to install and relocate
Longer lifecycle with low maintenance requirements
Easy serviceability minimizes downtime
Durability and Reliability

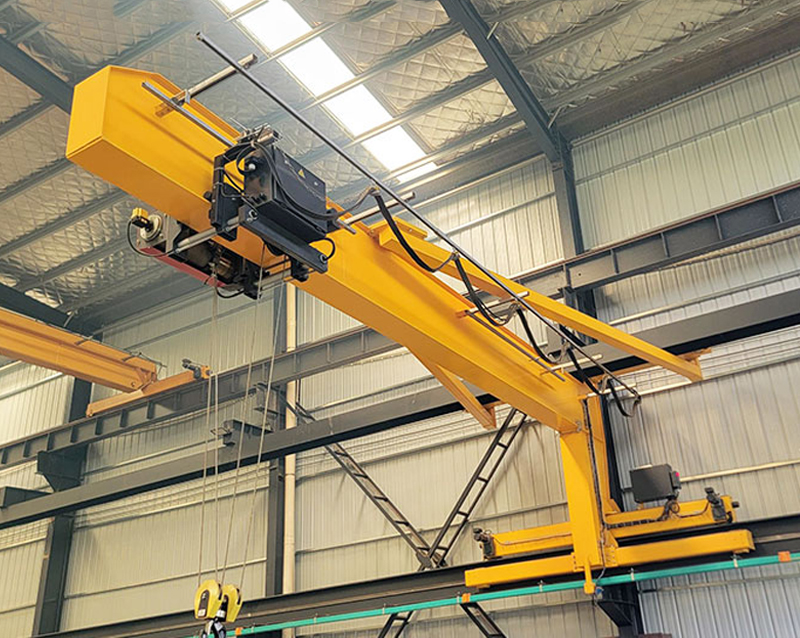

Fixed Bracket and Track: Installed on walls or other supporting structures, supporting the entire crane and guiding its movement along the track.
Cantilever: Connected to the fixed bracket, rotatable and extendable, used for lifting objects.
Electric Hoist: Installed on the jib, responsible for the vertical lifting and lowering of materials.

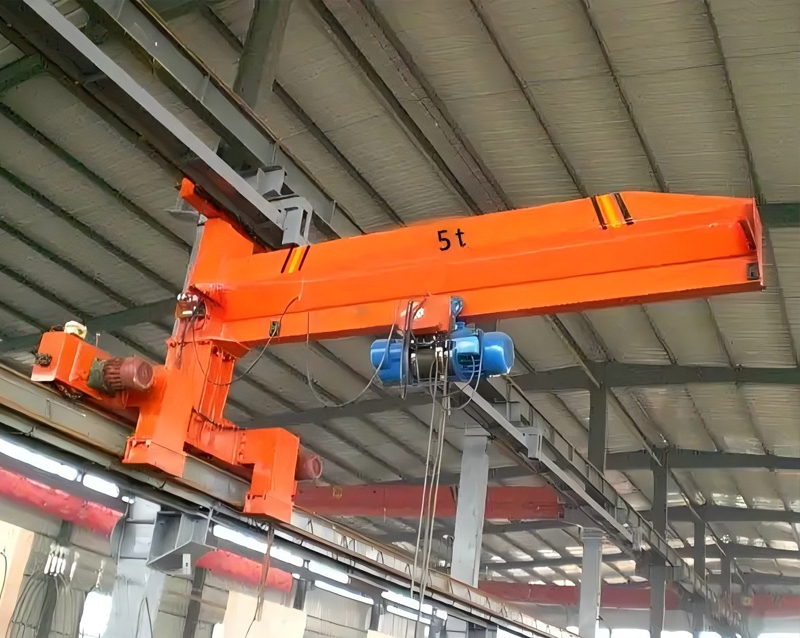

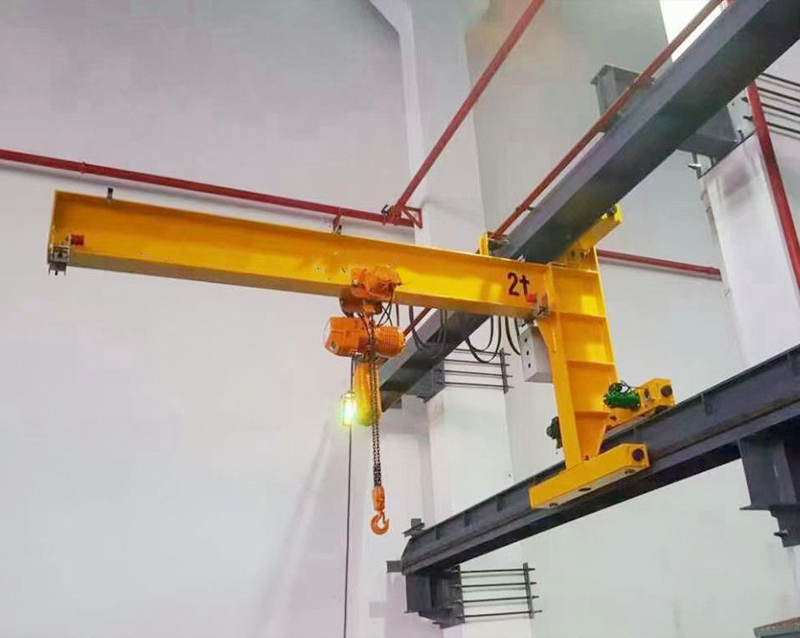

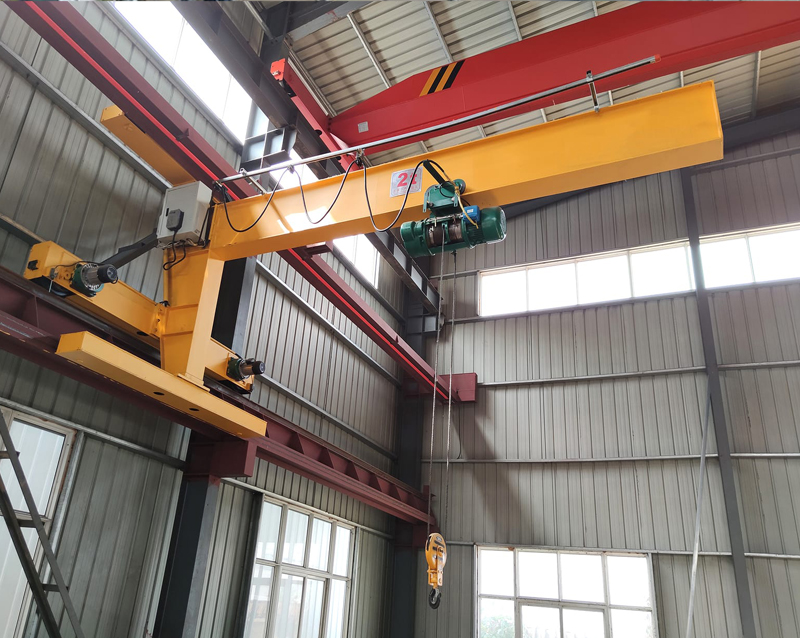

Zomax wall travelling jib crane, equipped with various hoists, is ideal for light-duty material handling and also can serve as complements of overhead bridge cranes. It is particularly suited for workshops with low ceilings or limited overhead space, providing efficient lateral material handling across long distances.
Commonly used in machine manufacturing, assembly, maintenance, and warehouses, this crane offers a cost-effective, customizable solution to meet specific lifting needs.
Ideal for:
Assembly lines and workstations requiring repetitive lifting
Maintenance bays, tooling areas, and small-part storage zones
Warehouses, logistics facilities, or production cells
Any site needing a secondary crane to support overhead crane operations
Low maintenance design due to fewer moving parts
Quick serviceability thanks to open structure and accessible components
Standardized components simplify replacements and reduce downtime
Minimal energy consumption, especially when using electric chain hoists
Long service life with proper lubrication and regular inspection
