Zomax wall mounted jib cranes feature a simple structure, light weight design, no need to occupy your floor space. They can be mounted on workshop walls, columns or other suitable support structure without many changes to your building. These cranes are suitable for handing light duty lifting tasks,with the capacity up to 5tons.
we provide flexible and optional solutions to meet individual user needs. Various cantilever designs are available. Both manual and electric rotation options are offered, with rotation angles of 180 or 220 degrees(articulating is exception). Also a selection of lifting mechanisms is for option.
Contact us for more information. Our engineers work closely with you to deliver a crane solution precisely tailored to meet your specific needs.

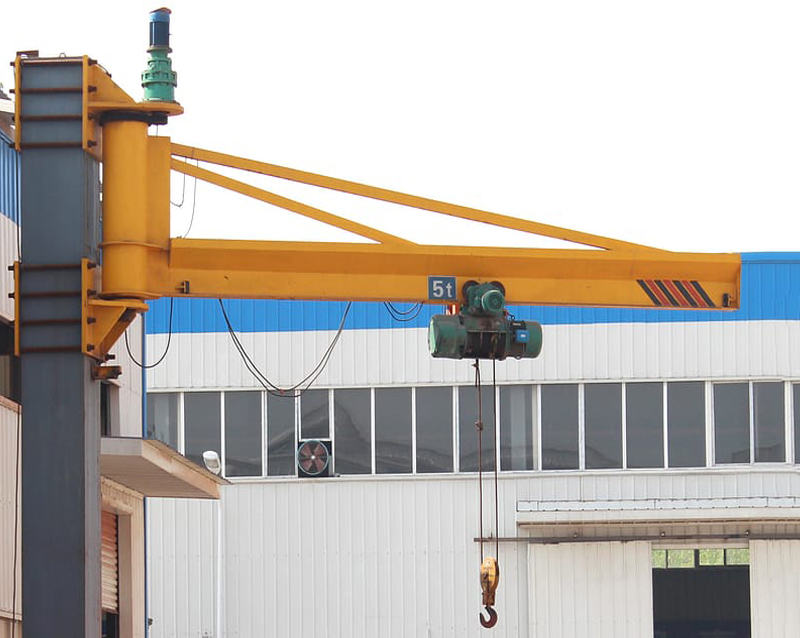

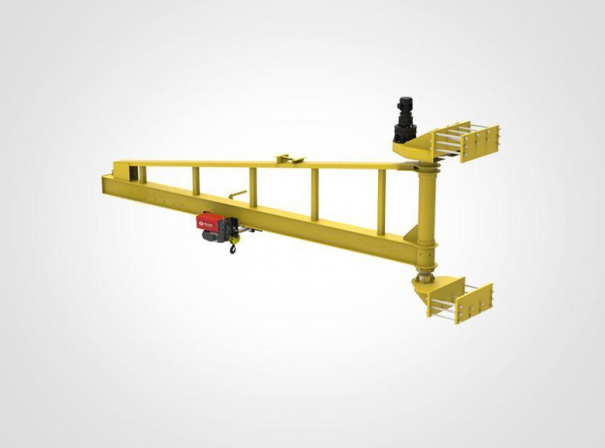

Multiple cantilever designs,I beam, tie rod type , kbk track, or articulating jib,offers flexibility to suit various lifting needs and structural setups.
High-strength steel provide robust structure to ensure longlife service.

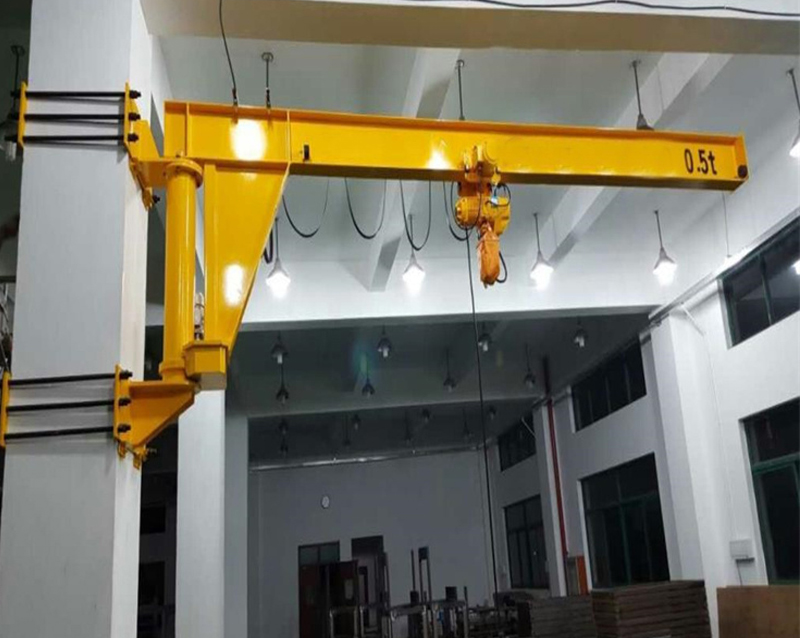

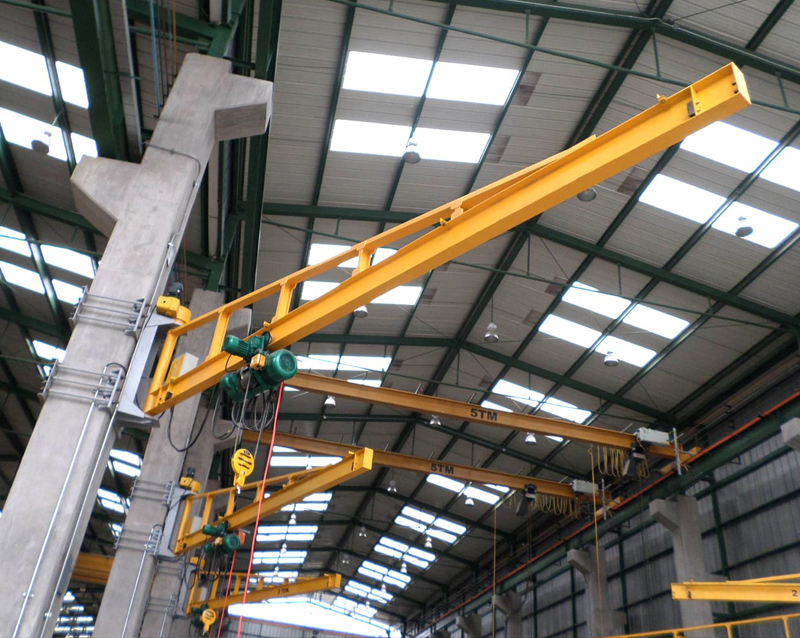

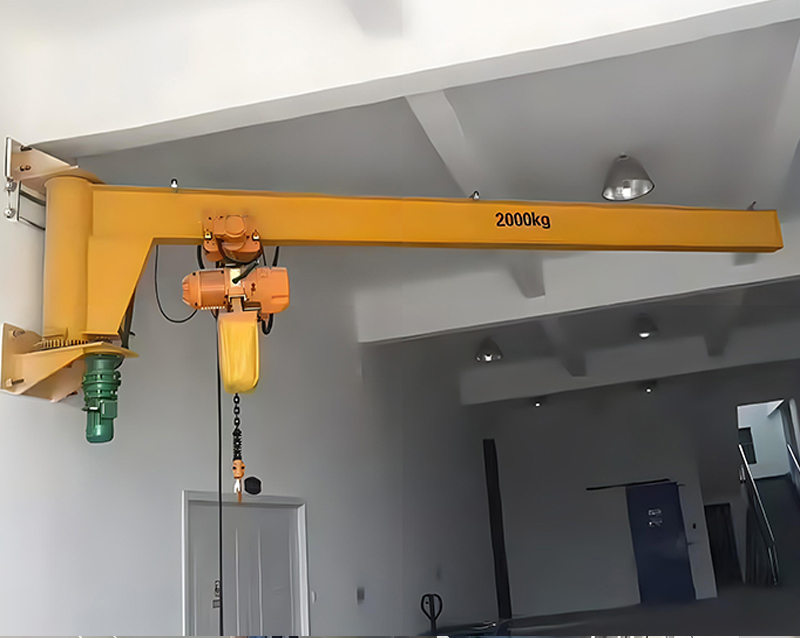

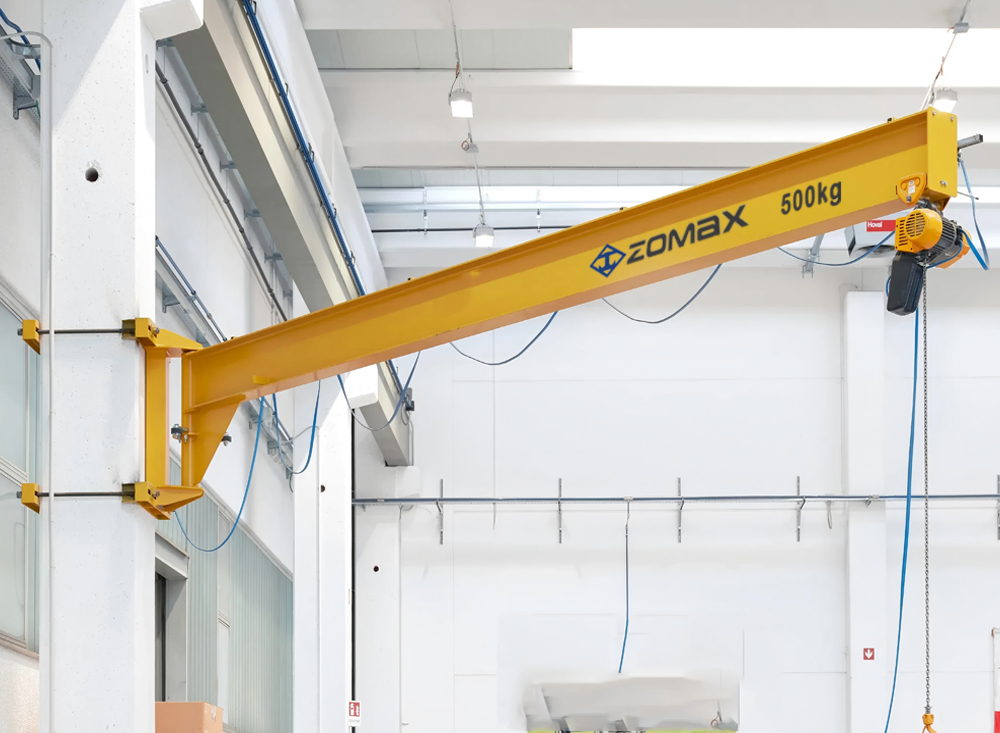

Mounting options: mounted on workshop walls, columns,steel structure or tailored, adapt to different workshop layouts for maximum efficiency.
Rotation design：180°and 220°(articulating is exception),with manual or electric operation,enhances flexibility in load handling
Hoist options: manual, electric chain, and wire rope hoist, to meet different load requirements and operational preferences.

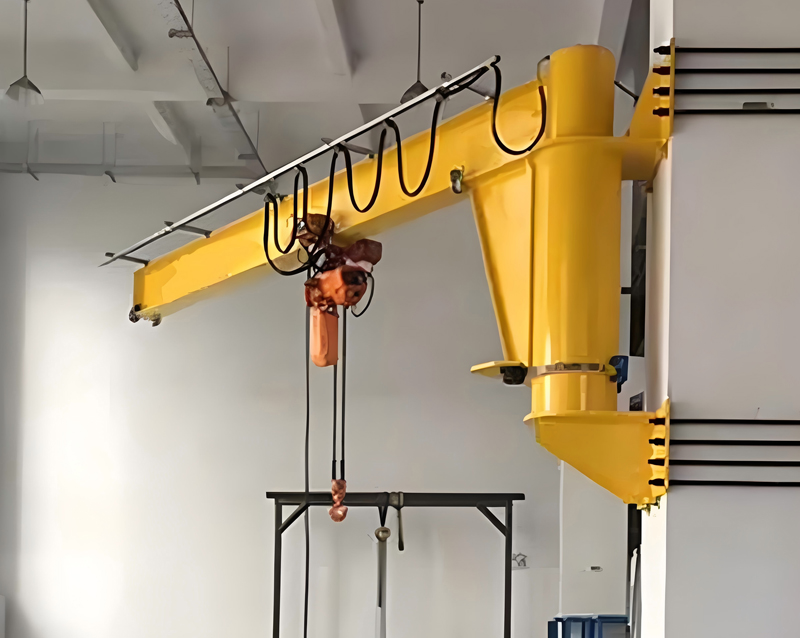

Robust festooning and easy running with reliable cable carriers
Cable routing options: Cables can be routed from below, the side, or above.
| Lifting capacity | Up to 5tons |
| Span | Up to 10m |
| Mounting | on workshop walls, columns,steel structure or tailored |
| Rotation angle | 180°and 220°(articulating is exception) |
| Rotation operation | Manual or electric |
| Jib Cantilever | I beam, tie rod type , kbk track, or articulating jib |
| Hoist options | Manual chain, electric chain, and wire rope hoist |
| Rated voltage： | 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC |
| Crane type | Wall mounted jib crane |
| Temperature | Standard temperature: -20 - +40°C |
| Control options | Pendant / remote |
| Environment | Indoors and outdoors |
| Working class | A3 |
Simple structure, cost-efficient
Fast and precise tools for material handling
Easily adapts to your multipurpose facility with a wide range of options
Enhanced safety and productivity
Efficient and accurate load handling up to 5 tons
Simple to install and relocate
Longer lifecycle with low maintenance requirements
Easy serviceability minimizes downtime
Durability and Reliability
Fixed Bracket: supporting structure for the entire system，a robust steel structure mounted on the wall, providing stability and load-bearing support for the cantilever crane.
Jib: The jib is the key component connected to the fixed bracket, the jib rotates and extends to lift items from various positions.
Electric Hoist: The electric hoist is an essential part of the wall-mounted cantilever crane, responsible for the vertical lifting and lowering of materials.
Control System: Precisely controls the electric hoist for lifting, lowering, and rotating, with safety features like overload and limit protection.
Wall mounted jib crane is usually used for short-distance, frequent and intensive material handling. It can also serve as a complementary solution for overhead travelling bridge cranes and gantry crane applications.
Additionally, the wall mounted jib crane can be used as an alternative when a floor mounted jib crane is impractical, especially in workshops with limited floor space. It can be folded out of the way when not in use, saving valuable space.
This type of crane is widely employed in various settings, including workshops, warehouses, docks, storage areas, ports, assembly lines, and other industrial applications.
