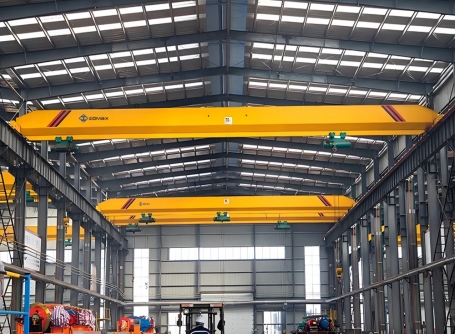

The Zomax FEM/DIN Single Girder Overhead Crane offers an efficient solution for material handling from 1 to 20 tons overhead crane. It features advanced control systems, stepless frequency control, and three-in-one driving mechanisms, enhancing operational efficiency, smoother movements, and reduced maintenance.
Its flexibility and adaptability make it essential for improving productivity and safety in various industrial applications.
Manufactured in strict compliance with DIN, FEM, and ISO standards, the crane ensures high-quality, high-performance, and safety for customers.
20 tons Overhead Crane is a heavy-duty lifting device designed to handle loads up to 20 tons, widely used in industries like manufacturing, warehousing, and metallurgy. Zomax FEM/DIN Single Girder Overhead Crane is a prime example, featuring advanced control systems, stepless frequency control, and a three-in-one drive mechanism for smooth, efficient operation and low maintenance. Built to DIN, FEM, and ISO standards, it ensures high performance, safety, and reliability, making it an essential solution for improving productivity and safety in various industrial applications.
The 20 tons overhead crane operates on a three-motion system:
Lifting – A double-speed hoist motor controls the steel wire rope to lift or lower the load vertically.
Cross Travel – The trolley moves horizontally across the girder, enabling lateral movement of the load.
Long Travel – The entire crane moves along the runway rails installed on the building structure, providing forward and backward movement.
These three movements work together to allow precise and flexible three-dimensional handling of heavy materials across large industrial spaces.
High Efficiency: Automates heavy lifting, reducing manual labor and increasing throughput.
Space Optimization: The low headroom hoist and compact box girder design make it ideal for facilities with limited ceiling height.
Customizable Design: Tailored lifting height and span meet diverse operational needs.
Smooth & Precise Control: Stepless frequency control and three-in-one motor system ensure smooth operation and accurate positioning.
Durability & Reliability: Built with robust materials and finishes, suitable for harsh environments.
According to your actual use of the scene, we support customized services
Zomax 20 tons overhead cranes are equipped with comprehensive safety features, including:
Overload protection – Prevents damage and accidents due to excessive loads
Secondary anti-clamp system – Avoids collisions at crane ends
Sound and light alarms – Provide warnings during operation
Circuit self-check and phase loss protection – Ensures electrical safety and system reliability
Together, these features help minimize risks, protect equipment and personnel, and ensure safe, continuous operation.

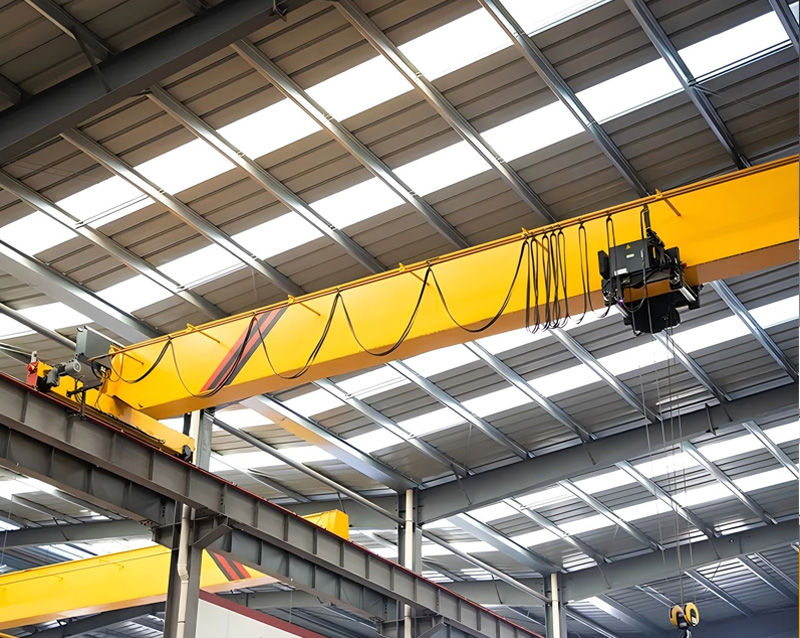

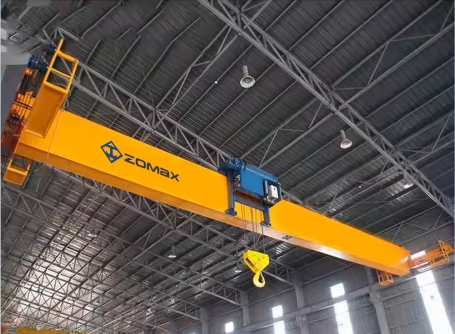

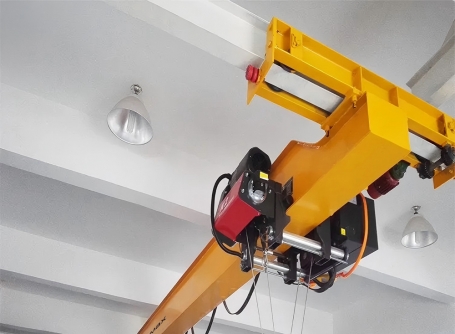

Single girder with top running Configuration makes it suitable for a variety of industrial environments
Lower flange plate serving as the running track for the electric hoist: simplifies the crane's structure and enhances efficiency in hoist movement.
Compact box beam structure ensures high structural integrity while minimize the overall weight of the crane

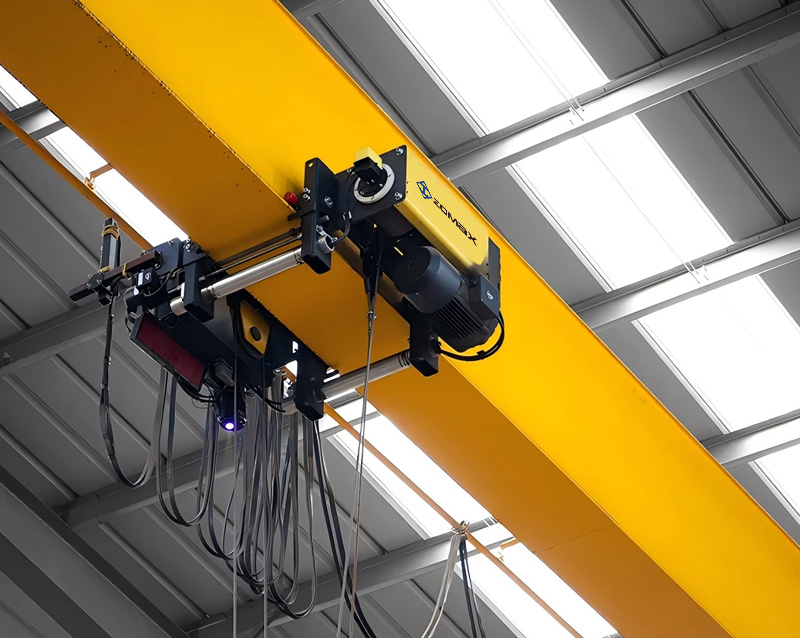

Low head room hoist with three-in-one drive mechanism offers smoother, more efficient operation and simplifies maintenance
Hoist travelling with stepless frequency speed enables safe and precise handling of goods
The design maximizes surrounding space and enhances accessibility
| Lifting capacity | Up to 20 tons |
| Lifting height | Tailored |
| Span | Tailored |
| Rated voltage： | 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC |
| Working class | A5 |
| Temperature | Standard temperature: -20°C … +40°C. |
| Protection | IP55 |
| Insulation | Class F |
| Crane type | Single girder, top-running |
| Girder design | Profile box, compact box |
| Rope | Steel wire rope |
| Hoist motor | Lifting: double speed;Travelling: Stepless frequency speed |
| Paint | One coat of primer and two coats of topcoat, total thickness exceeding 105µm |
| Hooks | DIN 34CrMo4 hook, Class T |
| Trolley type | Low head room hoist |
| Control options | Pendant / remote |
| Environment | Indoors and outdoors |
| protection devices | overload warning, secondary class anti-clamp, sound and light alarm devices, circuit self-check protector, and flow phase lack protection, etc. |
Compact and well-designed structure
Light dead weight, Light wheel load pressure,which lower costs
Dependable performance, easy operation.
Layouts optimize lifting heights and working area
Smart driving, higher efficiency
Stepless Frequency control for trolley and crane travelling
Three-in-one gear motors are lifetime maintenance-free
Smooth and stable travelling
Flexible device suitable for a wide range of industry applications

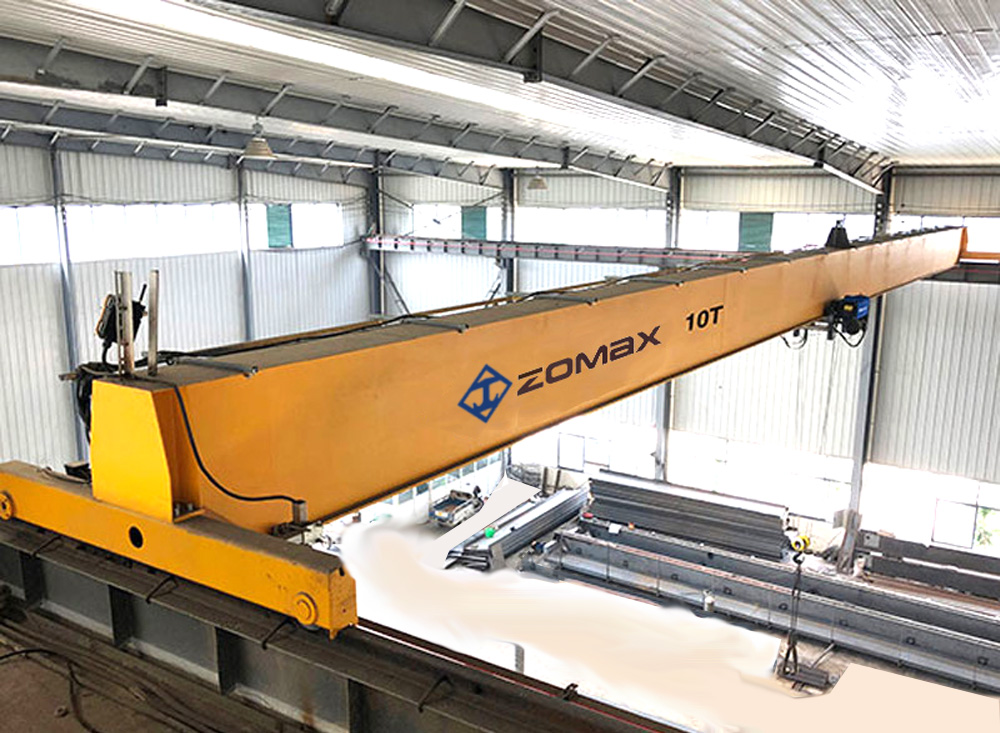

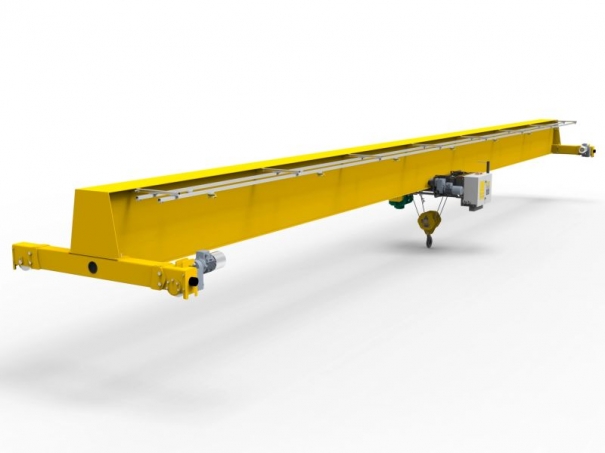

Main Girder: Made of Q235B carbon steel with seamless forming technology for strength and a sleek design.
End Carriage: Two end beams, each with a high-quality driving wheel set and buffers.

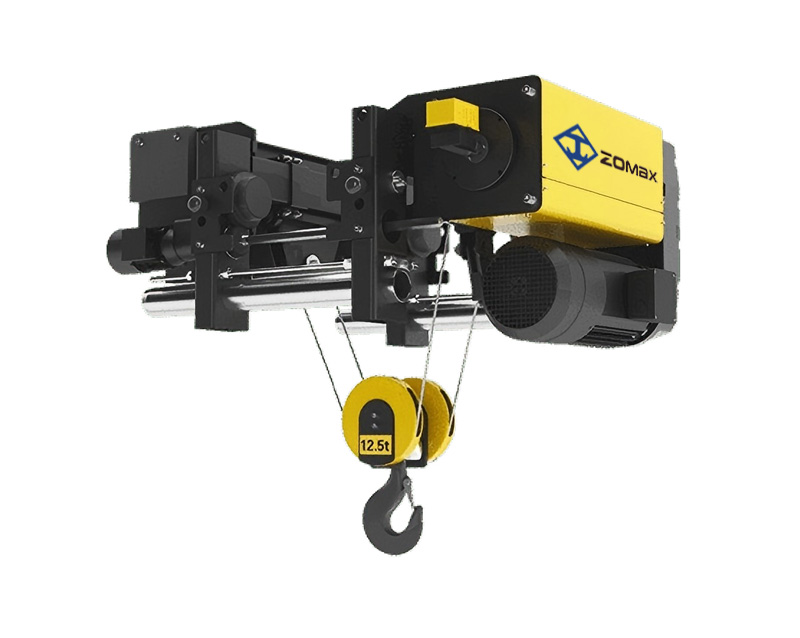

Electric Wire Rope Hoist: Runs along the lower flange of the main beam to maximize hook space. Features a reliable hoist and a trolley with a drive unit and wheel set.
Electrical System: Includes power and control components, supplying energy and signals to the crane. Uses trusted brands like Schneider or Siemens.

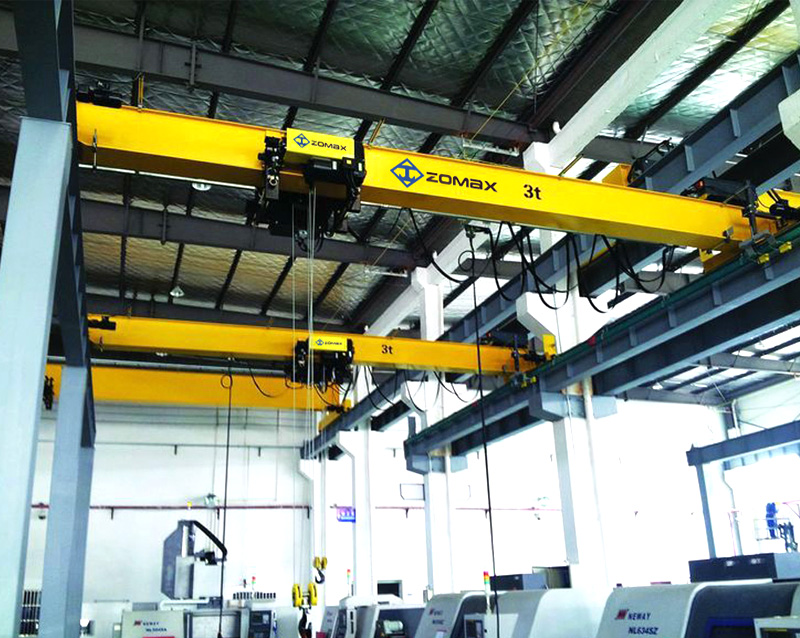

These cranes are widely used in industries such as manufacturing, warehouses, assembly lines, logistics, automotive, aerospace, steel plants, and metalworking. Their advanced design, lightweight structure, and efficient operation streamline workflows, reduce manual labor, and ensure safe handling of heavy components.
Their lightweight design reduces wheel load pressure, minimizing building wear and operational costs.
In summary, these cranes offer a reliable, efficient, and cost-effective solution for precise material handling across various industries, ensuring optimal performance and space utilization.
