Zomax 32 tons overhead crane is designed for light to medium-duty lifting , with load capacity from 0.5 to 32 tons. Equipped with a CD or MD electric hoist , it contribute to a cost-effective and reliable solution for material handling, making it a popular type for various industries.
The 32 tons overhead crane girder is made from high quality I-beam steel and a precision-formed U-shaped channel. The end girders are welded from rectangular steel tubes or high-grade steel.With its compact, well-designed structure and high-quality steel construction, the crane guarantees smooth operation, efficient braking, and a long service life.
Customizable for specialized applications, Zomax accessories provide tailored solutions to meet specific needs.

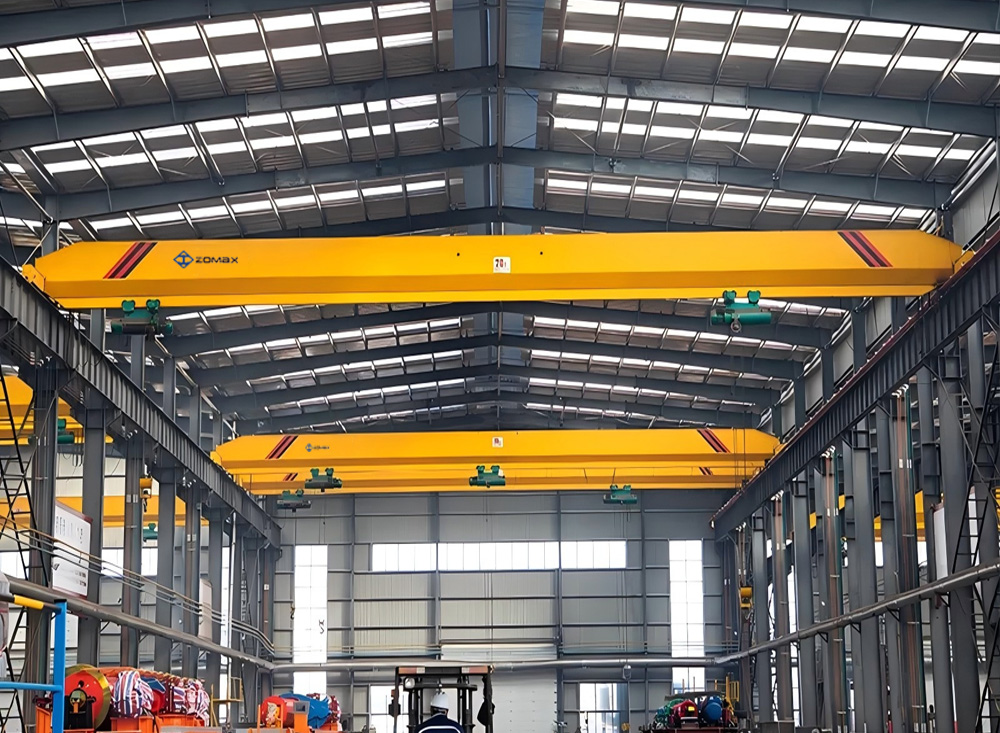

A 32 tons overhead crane is a heavy-duty lifting solution designed for handling large and heavy loads in industrial environments. Typically used in manufacturing plants, warehouses, steel mills, and construction sites, this type of crane provides efficient and reliable material handling across wide spans.
The 32 tons overhead crane is usually built with a single girder structure to support the high load capacity, ensuring stability and durability during operation. It runs on elevated tracks fixed to the building structure and can be equipped with various types of hoists or trolleys depending on the specific application requirements.
With over 20 years of experience in manufacturing high-quality industrial cranes and crane components, Zomax Crane has earned a reputation as a reliable leader in the material handling industry. We specialize in providing tailored crane solutions to meet the unique needs of each customer, ensuring optimal performance, efficiency, and safety in diverse applications.
| Feature | Single Girder | Double Girder |
|---|---|---|
| Number of Girders | 1 main beam | 2 main beams |
| Lifting Capacity | Typically up to 20–32 tons | Up to 200 tons or more |
| Span & Lifting Height | Limited span and height | Greater span and higher lift possible |
| Hoist Position | Hoist runs under the girder flange | Trolley runs on rails between the two girders |
| Structure & Weight | Lighter and simpler structure | Heavier and more robust |
| Cost (Manufacturing & Installation) | Lower | Higher |
| Maintenance & Operation | Easier to maintain and operate | More complex but more powerful |
| Application | Light to medium-duty: workshops, warehouses, small factories | Heavy-duty: steel mills, shipyards, foundries, large industrial plants |
| Cost Efficiency | Economical for moderate lifting needs | Ideal for high loads and frequent use |

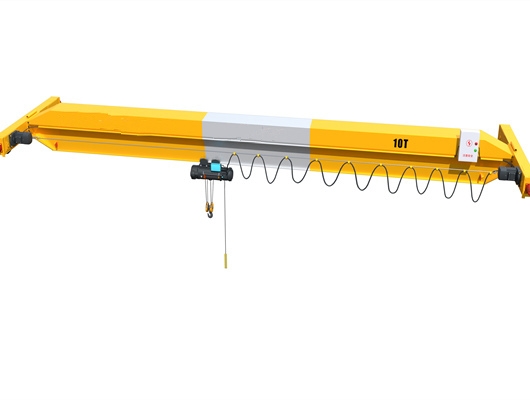

Single girder with top running configuration makes it suitable for a variety of industrial environments

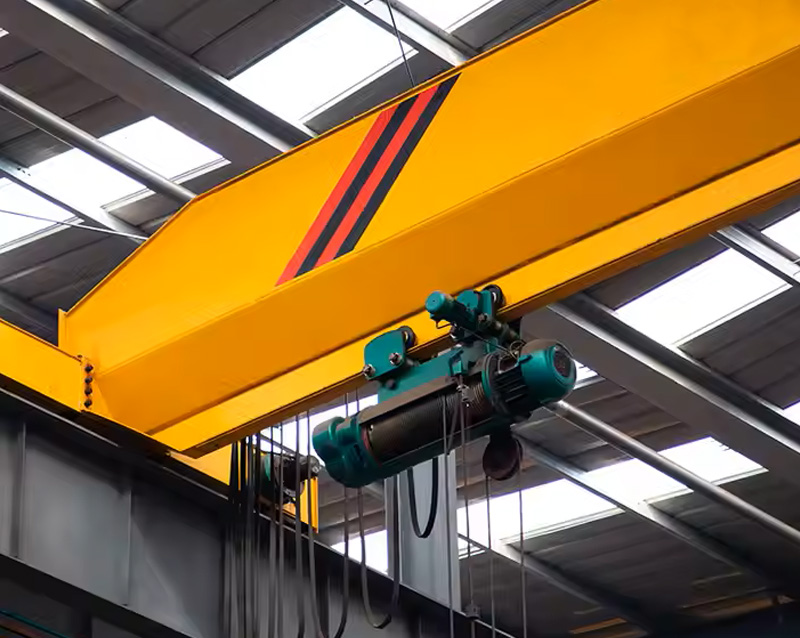

High-quality I-beam steel serving as the running track for the electric hoist enhances its durability and smooth operation
Hoist: CD or MD with wire rope or electric chain hoist
The hoist and main beam mechanisms can be controlled either independently or synchronously: improves efficiency and safety in handling complex loads
Cable available in open or closed styles, with installation on either the left or right side:enhances the crane's adaptability to different workspace configurations
Operation modes: Pendant control or remote control
| Lifting capacity | Up to 32 tons |
| Lifting height | Tailored |
| Span | ≤31.5m or tailored |
| Rated voltage: | 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC |
| Working class | A3.A4 |
| Temperature | Standard temperature: -20°C … +40°C. |
| Protection | IP44/IP54 |
| Crane type | Single girder, top-running |
| Girder design | high-quality I-steel and U-shaped groove |
| Rope | steel wire rope default ,chain option |
| Hoisting motor | Lifting: single-speed or double speedTravelling: single-speed |
| Paint | One coat of primer and two coats of topcoat, total thickness exceeding 105µm |
| Trolley type | Electric wire rope hoists default, chain hoist option |
| Control options | Pendant / remote |

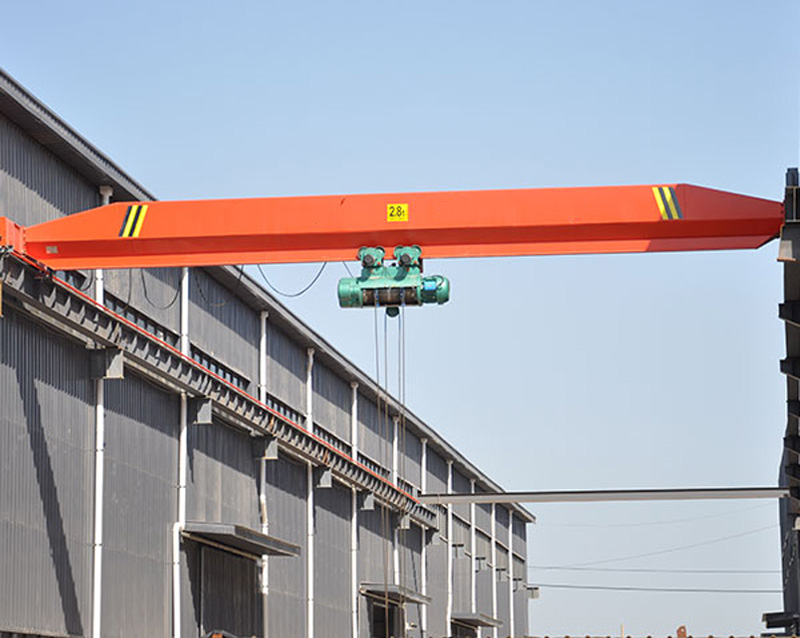

| Environment | Indoors and outdoors |
| protection devices | Anti-collision, sound and light alarm devices, Circuit self-check protector, Flow phase lack protection, etc. |
Cost effective
Compact and well-designed structure, high rigidity
Good craftwork, Strong versatility
Constant speed or double speed regulation, stable travelling
Easy installation
Smooth moving, effective braking, long service life
Main Girder:Box beam structure composed of U-shaped grooves and I-beams, ensuring strength and stability.

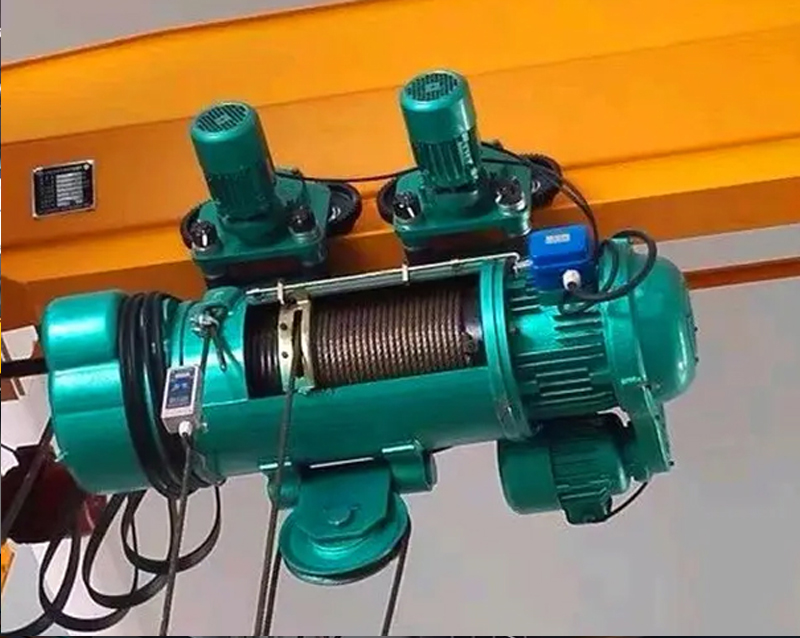

Electric Hoist:CD (single speed) or MD (dual speed) models, for lifting and cross-travel functions.Forged hook with sheaves and safety latch, 360° rotatable, available in single or double hook.
End Carriage:Includes wheels, motor, reducer, and brake for crane movement. Bolted to the main girder for easy transport and installation.
Electrical System:Provides power and control signals, including the power supply system, controller, and cables.

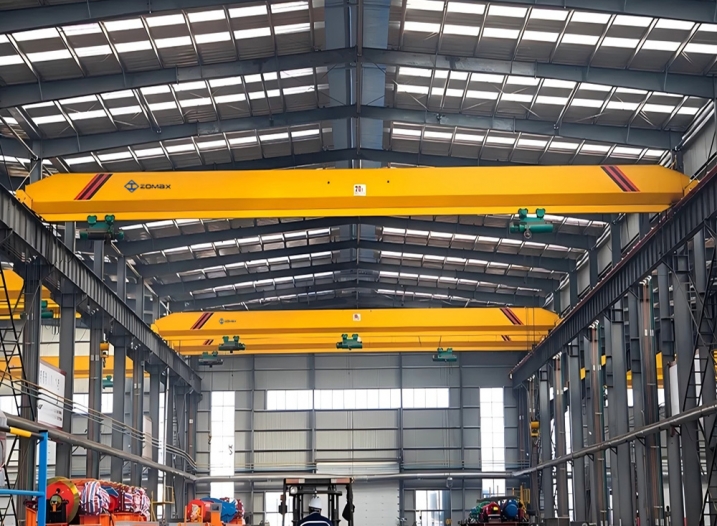

The 32 tons overhead crane is widely used in various industries, including manufacturing, warehousing and logistics, assembly lines, steel mills, metal fabrication, power plants, construction sites, paper mills, and the automotive industry. It is ideal for transporting raw materials, parts, or finished products between workstations, as well as loading, unloading, and moving goods within warehouses. Also, it plays a key role in moving heavy components for assembly, reducing manual labor, and efficiently lifting steel plates, bars, and other metal parts in workshops. In the automotive industry, it assists with the assembly and handling of car parts, such as engines, frames, and body panels.

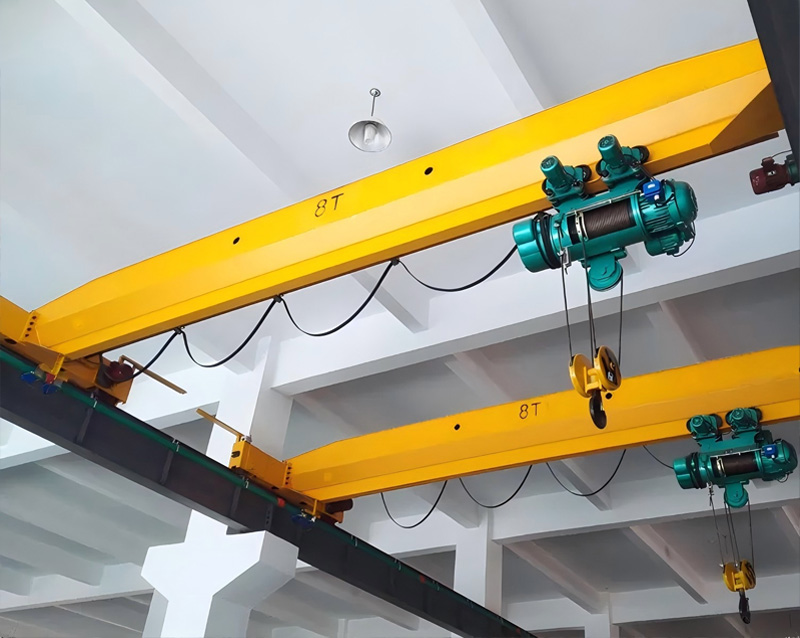

The 32 Ton Overhead Crane is a top running single girder crane designed for heavy material handling in indoor and outdoor industrial environments. It operates through the coordinated motion of the hoisting, trolley and overhead traveling mechanisms.
1.Lifting Mechanism: An electric wire rope hoist (chain hoist optional) lifts loads vertically. Powered by a single-speed or dual-speed motor.
2.Trolley Mechanism: The hoist moves horizontally along the girder for precise positioning.
3.Bridge Travel: The entire crane travels along runway beams to cover the full work area.
4.Control System: Operated via pendant or wireless remote control.
5.Safety Devices: Includes anti-collision, sound/light alarms, circuit self-check, and phase loss protection for safe and reliable operation.
