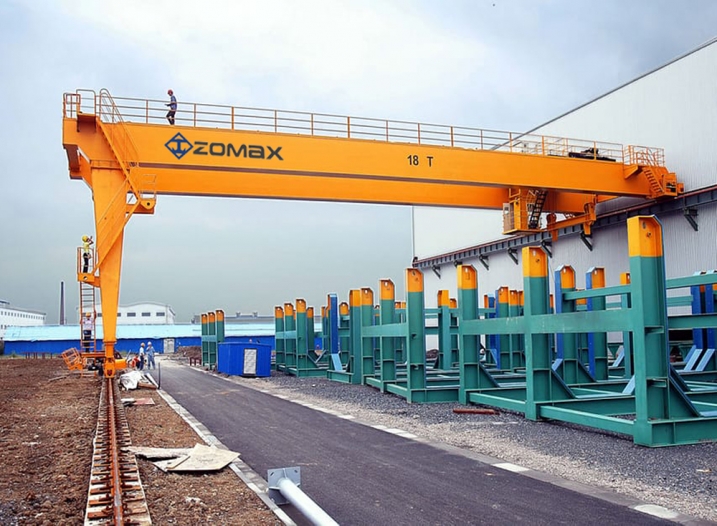

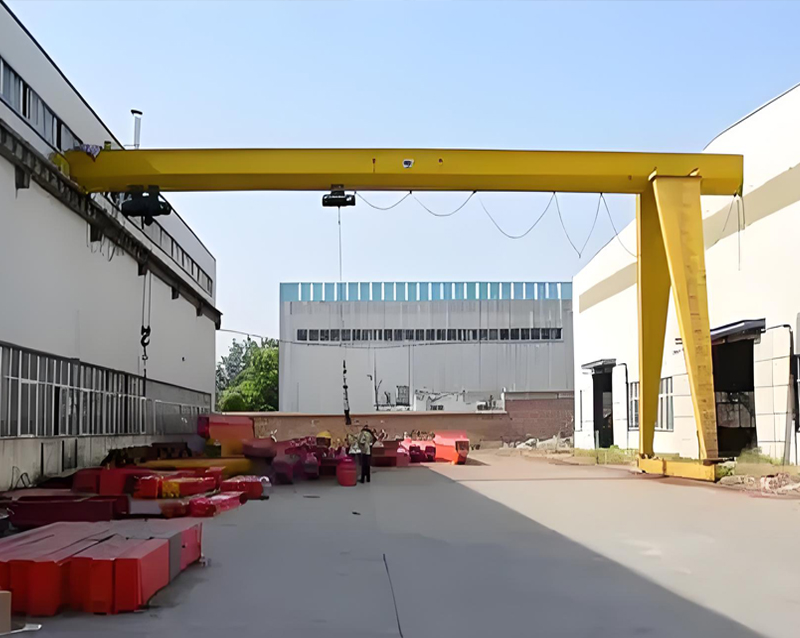

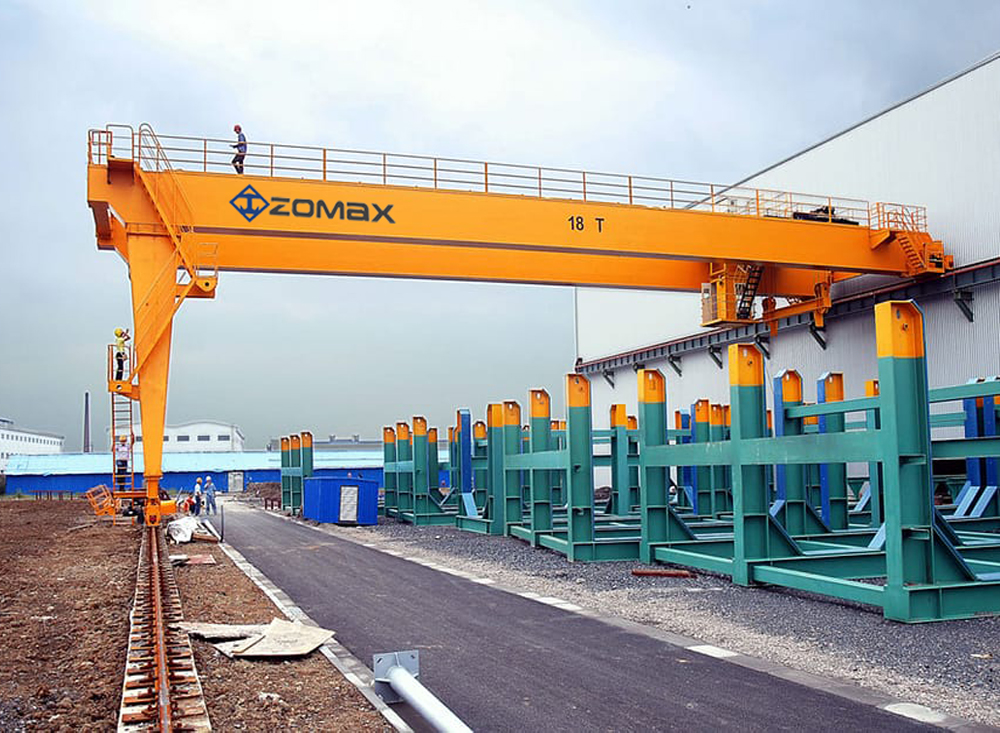

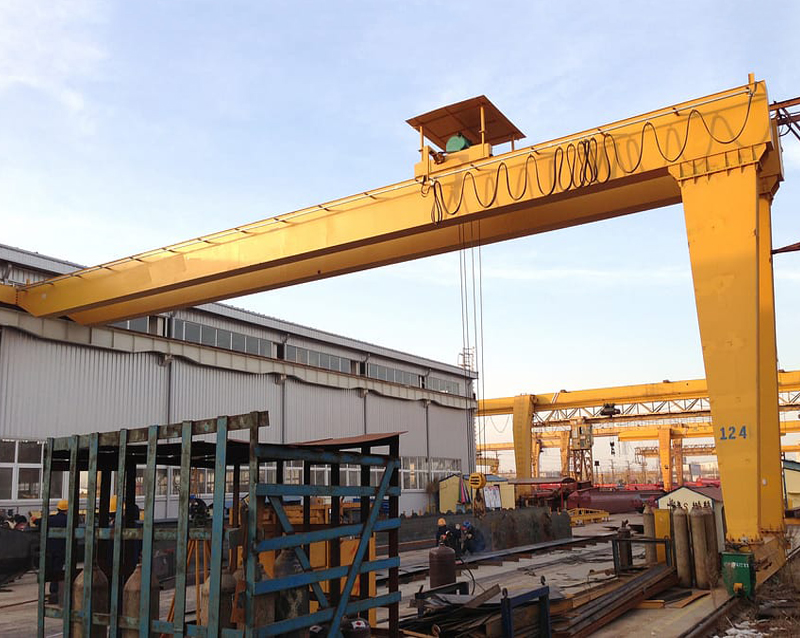

A semi-gantry crane is a combination of an overhead crane and a gantry crane. One side, with a support leg, runs on a ground-running rail; while the other side, without a leg, moves along the overhead track of the factory building. The remaining structure and configuration are consistent with a standard gantry crane. These cranes are typically installed on the structure of indoor workshops or the walls of outdoor workshops.
Users can choose double-beam or single-beam configurations based on their lifting capacity requirements. Zomax single-beam semi-gantry cranes can loads of up to 50 tons. If there is a need to lift heavy or long objects, a double-beam semi-gantry crane is recommended. Zomax provides a maximum lifting capacity up to 320 tons. Depending on your usage environment and special requirements, we can customize high quality and reliable crane solutions that meet your unique needs.
Available in double-beam or single-beam configurations to meet various lifting requirements.
Adaptable for installation in both indoor and outdoor workshops.
The semi-gantry crane design offers significant flexibility and enables a larger operational space.
Lifting spreaders include hook,grab,magnet,etc. to accommodate diverse material lifting needs.
Equipped with a Storm anchoring device for outdoor application and electromechanical overload device for additional safety.
Available with differing speeds for travel and hoisting operations.
End carriages are equipped with a jacking pad, sweeper plate and derailment guard as standard features to maximize safety.
| Lifting capacity | Up to 320 tons |
| Lifting height | Up to 30m |
| Span | Up to 50m |
| Steel structure | Box or truss type |
| Frame | A-shape or U-shape |
| Cantilever | Tailored |
| Lifting mechanism | Hoisting trolley or open winch trolley |
| Rated voltage： | 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC |
| Crane type | Single girder or double girder |
| Temperature | Standard temperature: -20 - +40°C |
| Control options | Pendant / remote/cabin |
| Environment | Indoors and outdoors |
| Working class | A3-A8 |
| Safety functions | Phase failure protectionFire limitCrane travel limitHeavy hammer limit-lifting height limitOverload protectionLow voltage protectionEmergency stop buttonCurrent overload protection system,etc. |
No limitations on headroom for outdoor work.
A stool-up design can be added on the non-leg side to maximize the lift height.
The semi-gantry crane allows for span selection to make the most efficient use of floor space.
Highly adaptable and versatile across various applications
Simple and compact structure, easy installation, high rigidity
Reliable, efficient, high-performance operation
High productivity, time-saving and labor-saving
Built with durable materials , long life service
Cost efficient, energy-saving, and low maintenance

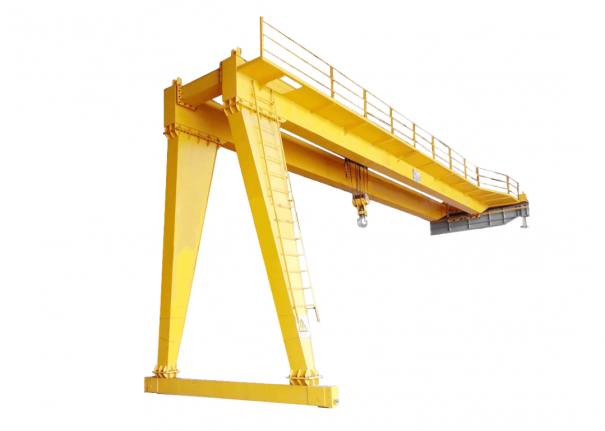

Gantry Structure: the main supporting structure, consisting of the main beam, end beams, support legs, and lower crossbeam. One side of the gantry with support legs runs along the ground track, while the other side without support legs run along the upper track of the factory building.
Lifting Mechanism: Handles load lifting with various hoist options—chain, wire rope, low headroom, or European-style for single-girder cranes; LH, NLH, integrated, or QD trolleys for double-girder cranes.
Traveling Mechanism: Includes long travel (moving the entire crane along the track) and cross travel (moving the trolley along the main beam for precise load positioning).
Electrical Control System: Ensures safe, efficient operation, with hoist power supplied via cable systems and multiple slideway options.
Protective Devices: Includes phase failure protection, fire limit, travel limit, lifting height limit, and overload protection.
Zomax semi-gantry crane is ideal for lifting, transporting, loading and unloading in outdoor operational sites such as stations, wharves, warehouses, construction sites, cement product yards, machinery or structural assembly yards, power stations, and more.

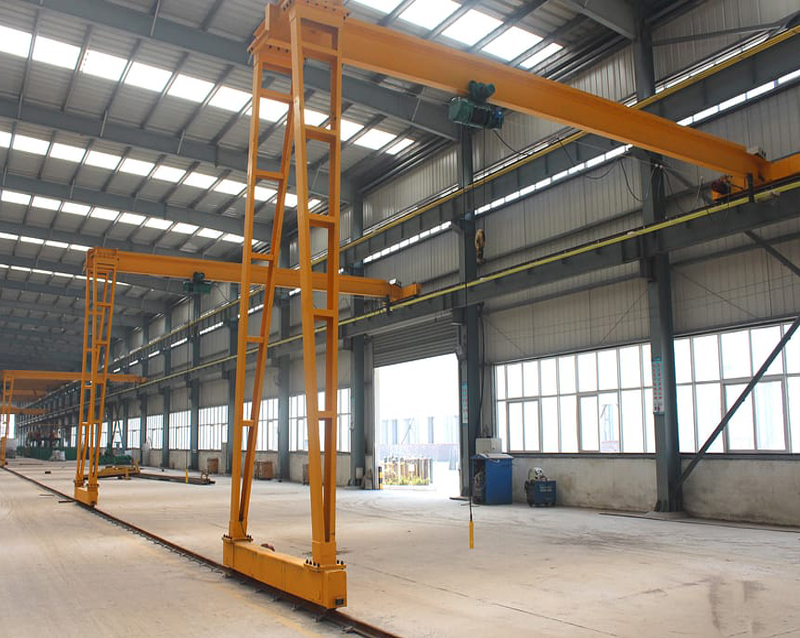

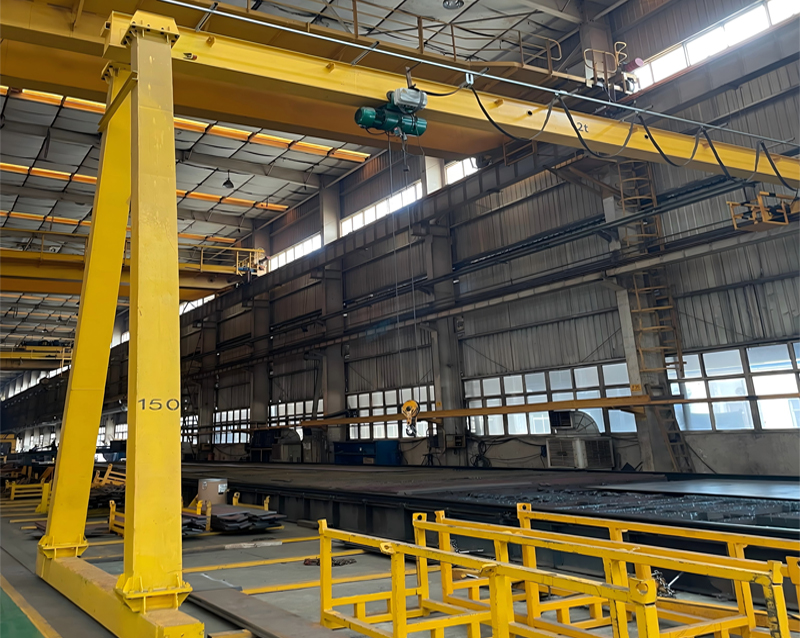

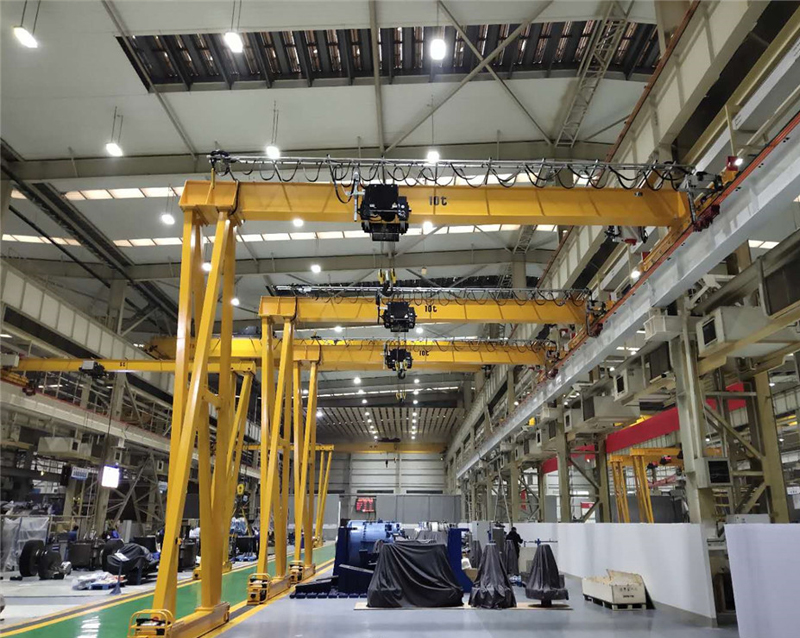

There are two typical applications: indoors, it is often used beneath the existing overhead cranes to add more hooks, thereby improving the productivity of your factory; outdoors, often is employed near buildings, effectively making use of the existing runway structure and improve the cost efficient of your factory or plant.
