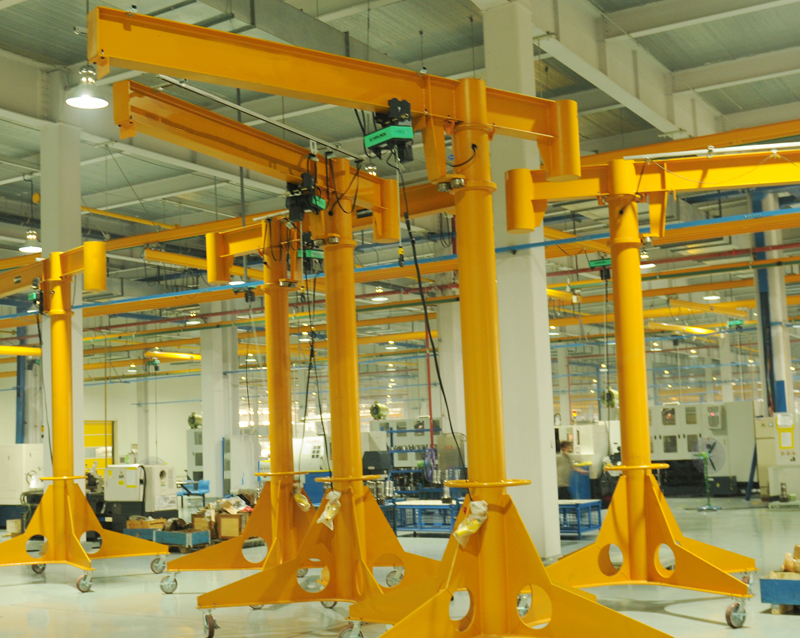

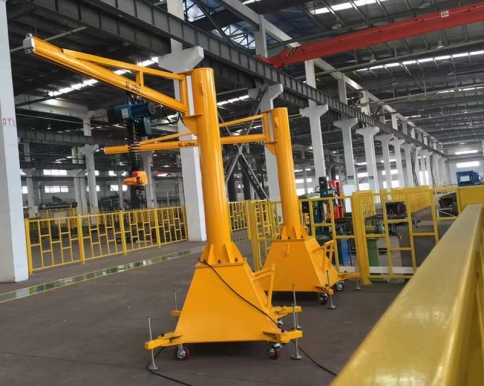

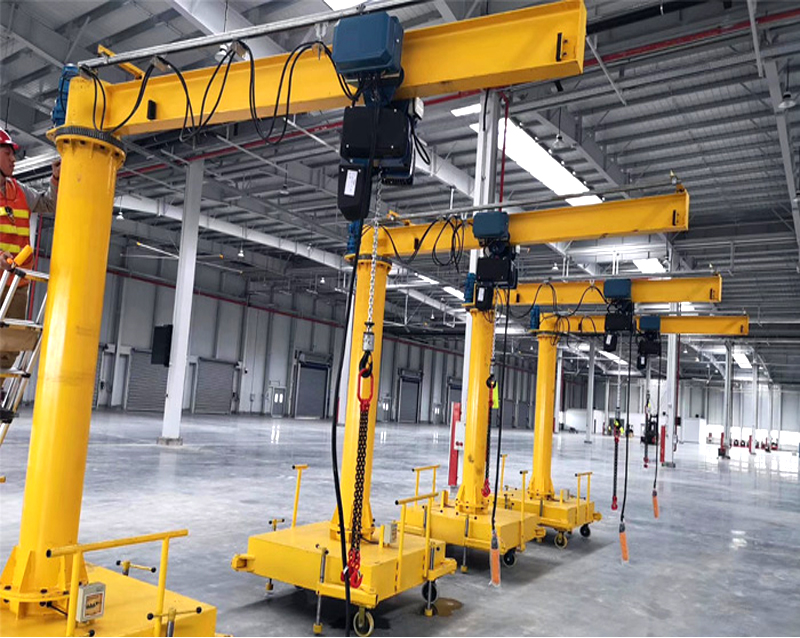

Zomax 2 tons portable jib crane features a unique, self-supporting cantilever design mounted on wheels and rollers, ensuring safe and reliable operation with minimal downtime. Its high flexibility and maneuverability make it ideal for short-distance, centralized material handling and a great alternative for efficient production lines in emergencies.
Its arm length and height are adjustable to accommodate different lifting requirements, with optional cantilever designs and lifting mechanism configurations. we offer customized, affordable solutions for specific applications.
Contact us for more information. Our engineers work closely with you to deliver a crane solution precisely tailored to meet your specific needs.

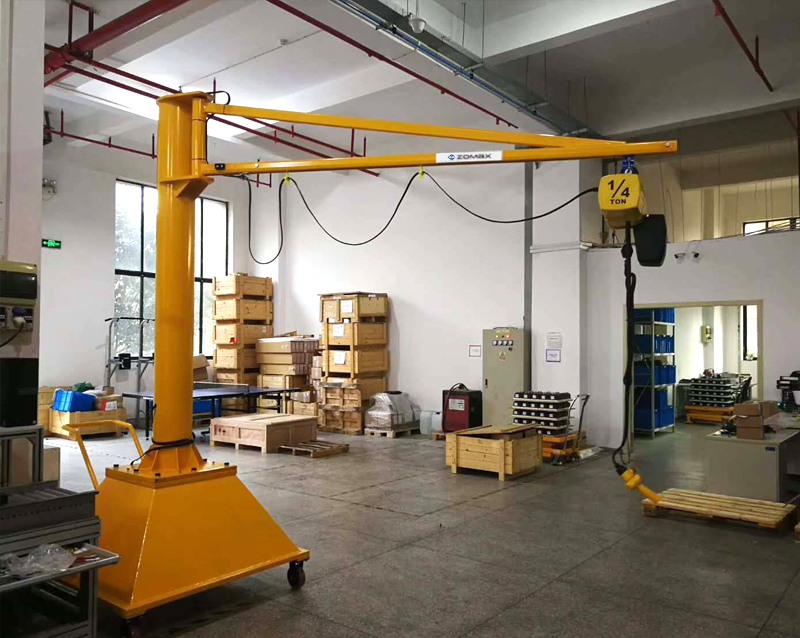

Multiple cantilever designs,including I beam cantilever, box cantilever or tie rod cantilever to meet varying requirements.
High-strength steel ensures a robust structure for long service life.
Hoist options: manual, electric chain, and wire rope hoist, to meet different load requirements and operational preferences.
Work anyplace since the jib arm rotates 360 degrees and the jib hoist moves along the I beam.

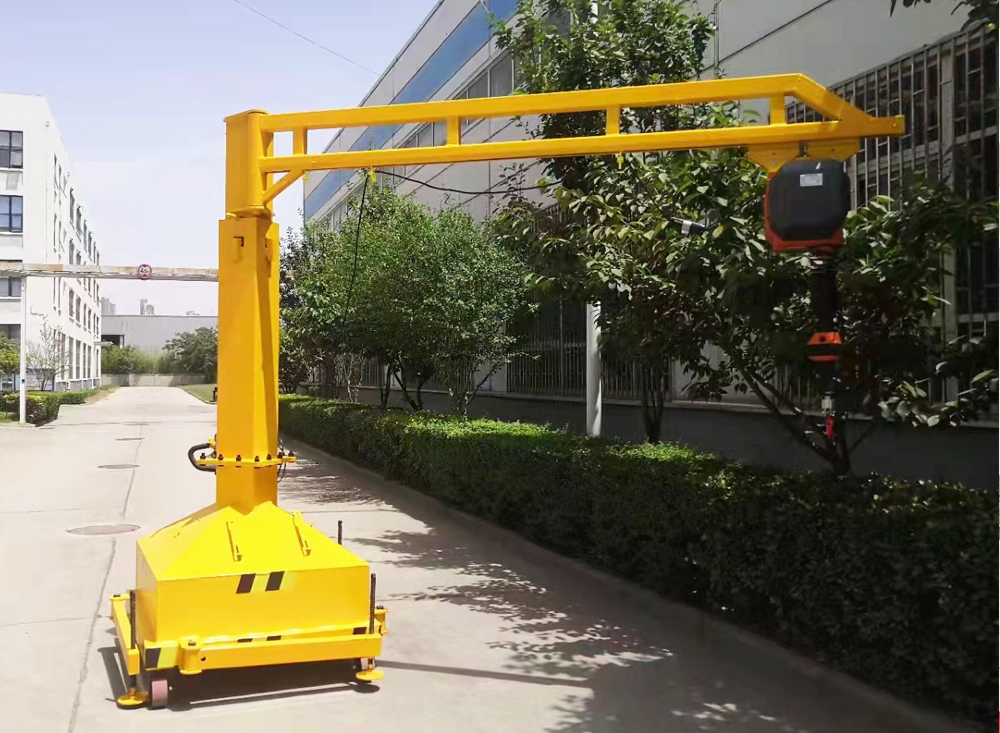

Equipped with wheels and a broad base, the portable jib crane can be moved smoothly and stably in any direction to the desired location.Adjustable Design: They often feature adjustable arm lengths and heights to accommodate different lifting needs.
Its flexibility enhances operational efficiency and adaptability.
| Lifting capacity | 80kg to 2 tons |
| Lifting height | Up to 3m |
| Turning radius | 1-3m |
| Jib Cantilever | I beam cantilever, box cantilever or tie rod cantilever |
| Hoist options | Manual chain, electric chain, and wire rope hoist |
| Rotation angle | 360° |
| Rated voltage： | 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC |
| Crane type | Portable jib cranes on wheels |
| Temperature | Standard temperature: -20 - +40°C |
| Control options | Pendant / remote |
| Environment | Indoors and outdoors |
| Working class | A3 |
Adaptable and mobile
Simple structure, cost-efficient design
Simple to install and relocate
Longer lifecycle with low maintenance requirements
Easy serviceability minimizes downtime
Durable and reliable for long-term use
Compact design and room-saving

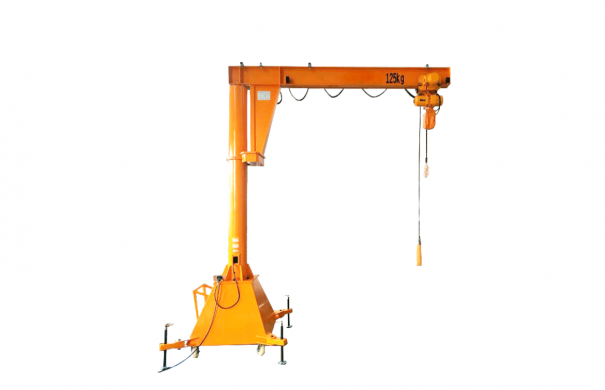

Cantilever: The main structure, which rotates via a rotating motor, covering a circular working area.
Base: The base, equipped with support legs and wheels, supports the above structure and enables horizontal movement.
Rotating Motor: Converts electrical energy into mechanical energy to drive the rotation of the cantilever.
Chain Hoist: Responsible for lifting tasks, it drives the chain up and down using a motor-driven gear mechanism.
Portable jib cranes offer cost-effective solutions due to their flexibility, mobility, quick installation, and ease of use. In the manufacturing industry, they simplify material handling on assembly lines, enhance workflow, and reduce manual lifting. In warehousing, they facilitate the quick loading and unloading of goods, improving inventory management. On construction sites, they are valuable for lifting and positioning materials in temporary settings, while marine and port operations use them for handling equipment and materials near docks.
In summary, portable jib cranes are widely used in factories, mines, workshops, warehouses, production lines, assembly lines, mechanical processing, small equipment installation, and light lifting tasks.
