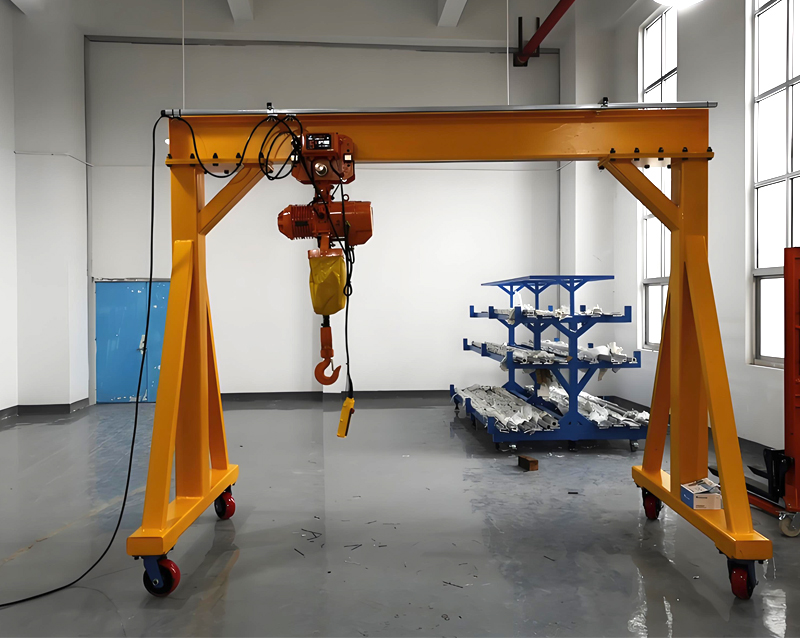

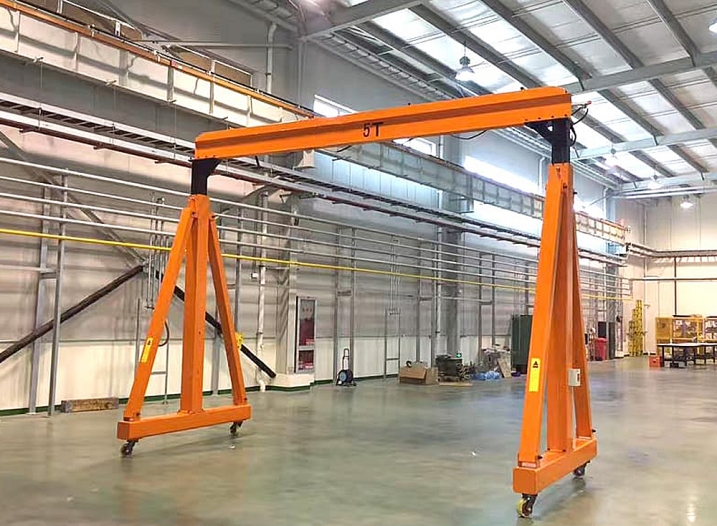

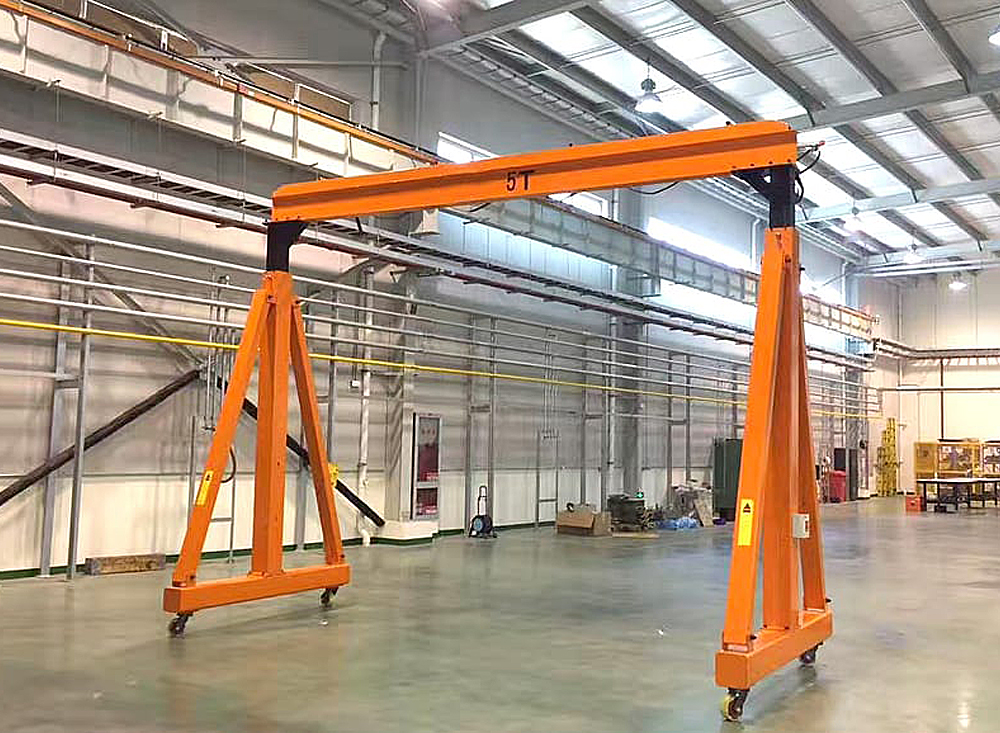

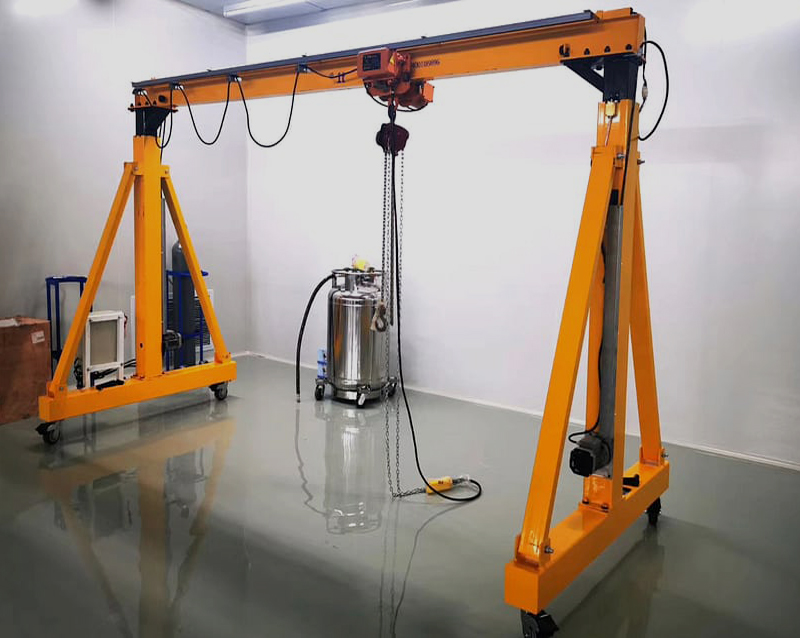

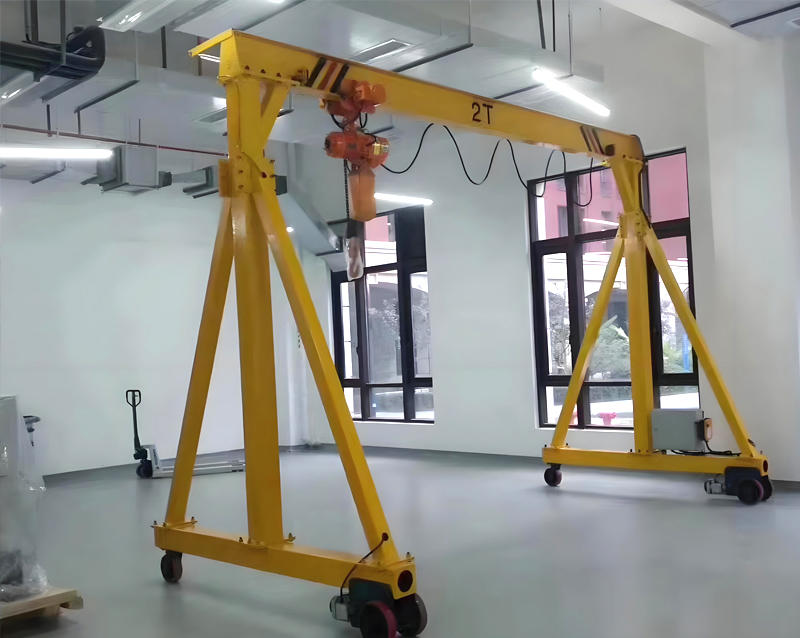

Portable gantry cranes are free-standing gantry cranes equipped with four universal wheels, allowing it to be quickly and easily moved from one location to another. Zomax adopts a simple and innovative design to provide flexible, economical and efficient solutions for a wide range of lifting tasks.With a lifting capacity of up to 10 tons, customized options for 20 tons are available to meet special customer requirements.
Zomax provide different choices of crane configurations based on each users' specific needs,including materials , whether the height is fixed or adjustable and the adjustment method, how the crane is moved, lifting mechanism, etc. We are always with you, committed to providing you with accurate, safe, reliable, and cost-effective crane that suits you.
Two kinds of material are available to satisfy specific demands:
Steel structure are rigidity,reliable and economical;

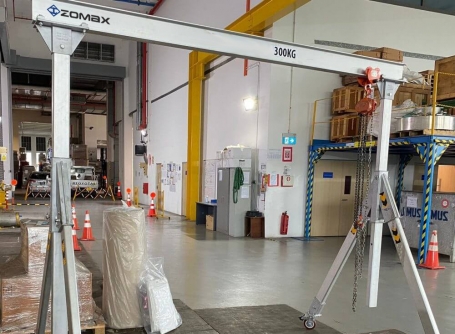

Aluminum structure are corrosion-resistant anodized finish and have light weight
Lifting hoist can be manual chain hoist, electric chain hoist or wire rope hoist to lift different materials

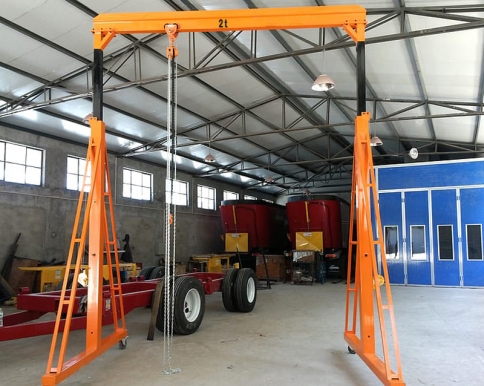

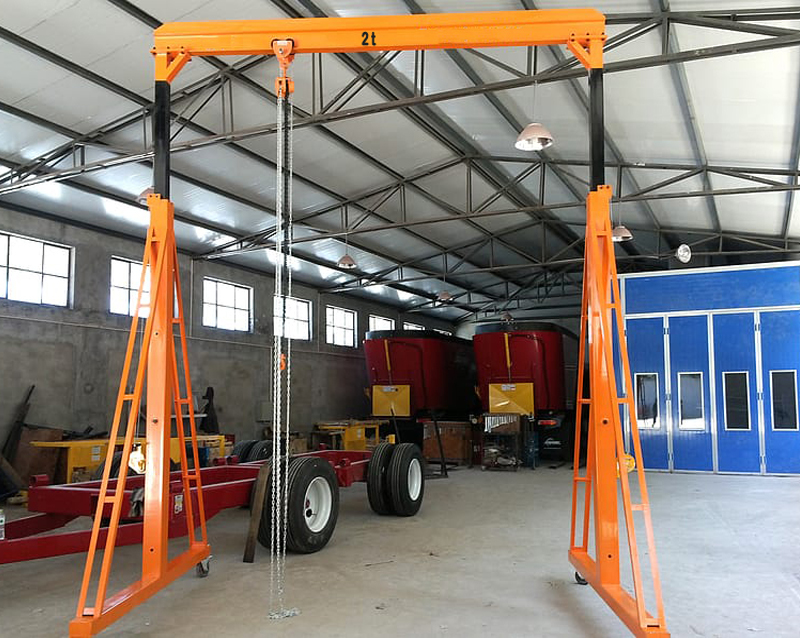

The height and span can be fixed or adjustable, with adjustment options available in three optional ways.
The crane can be moved either manually or using electric drive system to suit different operational needs.
The crane can rotate around the center of the girder or around one leg, either manually or electrically.
Two legs with brakes make it moved to any location and locked in place for lifting.
Bolted structure, lateral beam, and leg bracing features provide total stability for any lifting challenge.
All nuts, bolts, and pins are plated for corrosion resistance.
Can use a generator when electricity is not available.
| Lifting capacity | 0.5 tons to 20 tons |
| Lifting height | Up to 12m |
| Span | Up to 12m |
| Material | Steel or aluminum |
| Lifting hoist | Manual chain hoist, electric chain hoist or wire rope hoist |
| Height and span adjustable | Based on user's needs |
| Crane moving | Manually or electrically |
| Crane rotate | Around the center of the girder or around one leg |
| Rated voltage： | 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC |
| Crane type | Portable single girder |
| Temperature | Standard temperature: -20 - +40°C |
| Power supply | Electricity or battery |
| Environment | Indoors and outdoors |
| Working class | A3 |
Cost-effective lifting solution
Light weight and simple design , quick and easy to assembly
Flexible, reliable and versatile
Be stored compactly, saving space
Lower construction and transportation costs
Reach all corners of your plant
Fast service response and efficient spare parts delivery
Ideal for wide range of industrial applications and business areas

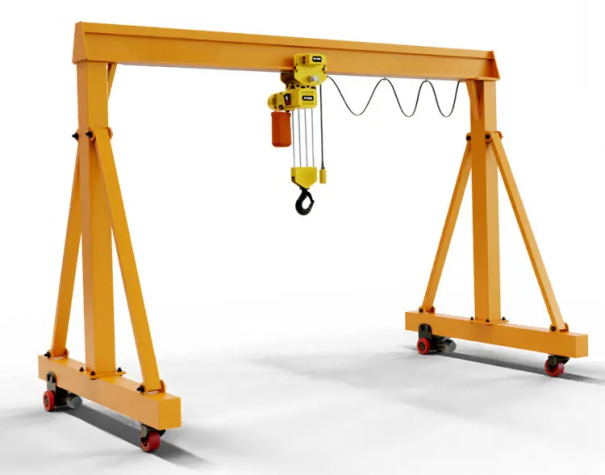

Main Beam: Made of I-beam or H-beam. For large spans, channel steel or square tubes can be added to enhance structural strength.
Columns and Ground Beam: Constructed from square tubes, providing sufficient strength, rigidity, and stability.
Lifting Equipment: Compatible with manual chain hoists, electric chain hoists, wire rope hoists, and European-style electric hoists.
Load-bearing Wheels: Equipped with universal wheels with brakes, allowing 360° rotation for flexible movement.
PU or nylon wheels are optional, offering wear resistance, quiet operation, and lightweight performance, ideal for smooth surfaces.
For higher load capacities, electric travel wheels are recommended for motorized movement.
Portable gantry cranes are lightweight, simple in design, easy to disassemble and reassemble, making them suitable for both indoor and outdoor use and allowing access to every corner of the facility, provided there is adequate space. Zomax designs each lifting equipment to improve the safety and productivity of customer operations. The portable gantry crane is versatile, making it ideal for a wide range of industrial applications and business sectors, including garages, retail shops, workstations,construction,mining,vehicle maintenance, agriculture, natural gas compressor stations, oil exploration, onshore, and offshore drilling.
