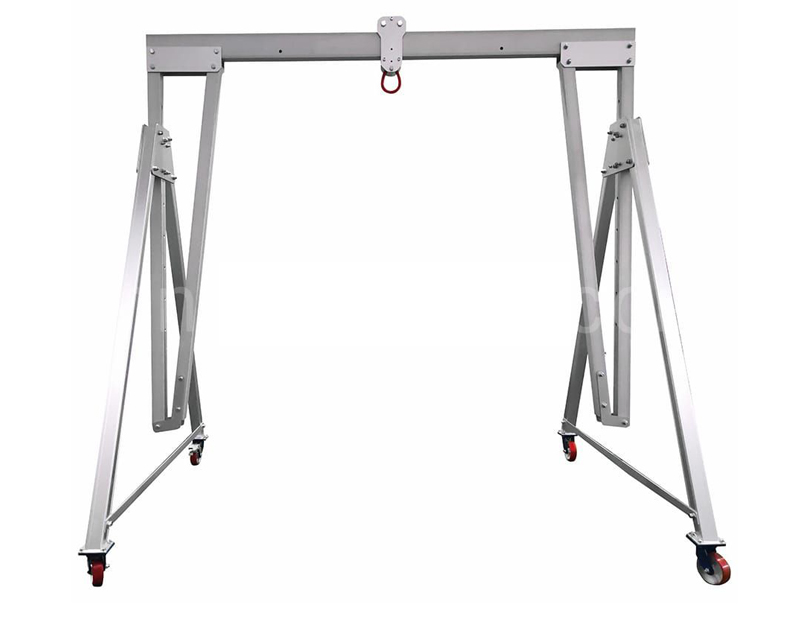

Zomax aluminum gantry cranes are a type of portable gantry crane, known for their light weight, simple design, corrosion resistance, oxidation resistance, flexible operation and ease of disassembly and reassembly. They are commonly used in clean rooms and laboratories, with a maximum lifting capacity of up to 5 tons.
We provide different choices of crane configurations based on each users' specific needs,including options for fixed or adjustable height and the method of adjustment, crane mobility method, lifting mechanisms, and more. We are always with you, committed to providing you with accurate, safe, reliable, and cost-effective crane that suits you.
Aluminum structure are corrosion-resistant anodized finish make it easy to clean and suitable for clean room applications
Foldable aluminum gantry crane is available enhance easy moving between locations

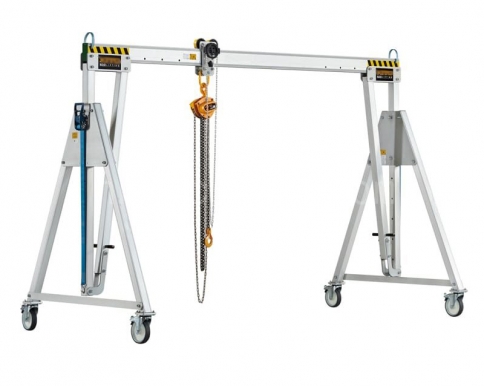

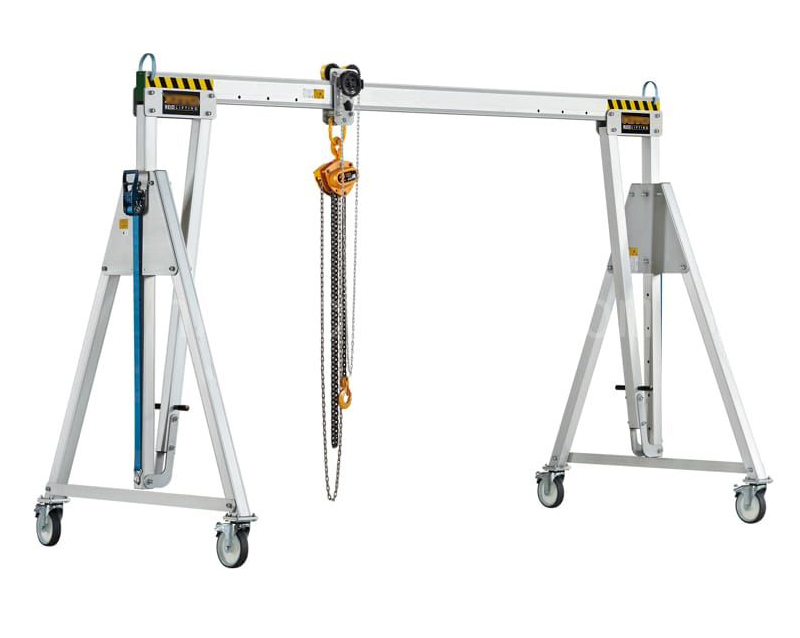

Lifting hoist can be manual chain hoist, electric chain hoist or wire rope hoist to lift different materials
The height and span can be fixed or adjustable, with adjustment options available in three optional ways.
The crane can be moved either manually or using electric drive system to suit different operational needs.
The crane can rotate around the center of the girder or around one leg, either manually or electrically.
36 Swivel-locking castors are included as standard for easy positioning.
All-terrain castors and uneven ground options are available
Captive trolley that is ultra-secure.
Bolted structure, lateral beam, and leg bracing features provide total stability for any lifting challenge.
| Lifting capacity | 0.5 tons to 5 tons |
| Lifting height | Up to 12m |
| Span | Up to 12m |
| Material | Aluminum |
| Lifting hoist | Manual chain hoist, electric chain hoist or wire rope hoist |
| Height and span adjustable | Based on user's needs |
| Crane moving | Manually or electrically |
| Crane rotate | Around the center of the girder or around one leg |
| Rated voltage： | 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC |
| Crane type | Portable single girder |
| Temperature | Standard temperature: -20 - +40°C |
| Power supply | Electricity or battery |
| Environment | Indoors and outdoors |
| Working class | A3 |
Corrosion-resistant anodized finish
Light weight and simple design , quick and easy to assembly
Flexible, reliable and versatile
Be stored compactly, saving space
Lower construction and transportation costs
Reach all corners of your plant
Fast service response and efficient spare parts delivery
Ideal for wide range of industrial applications and business areas

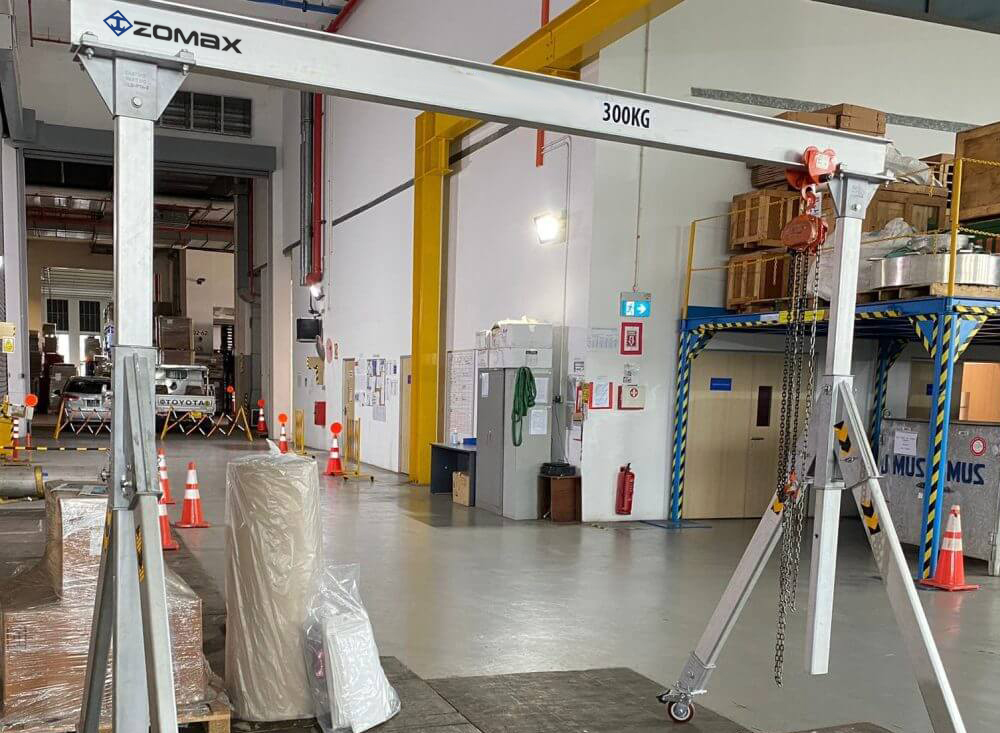

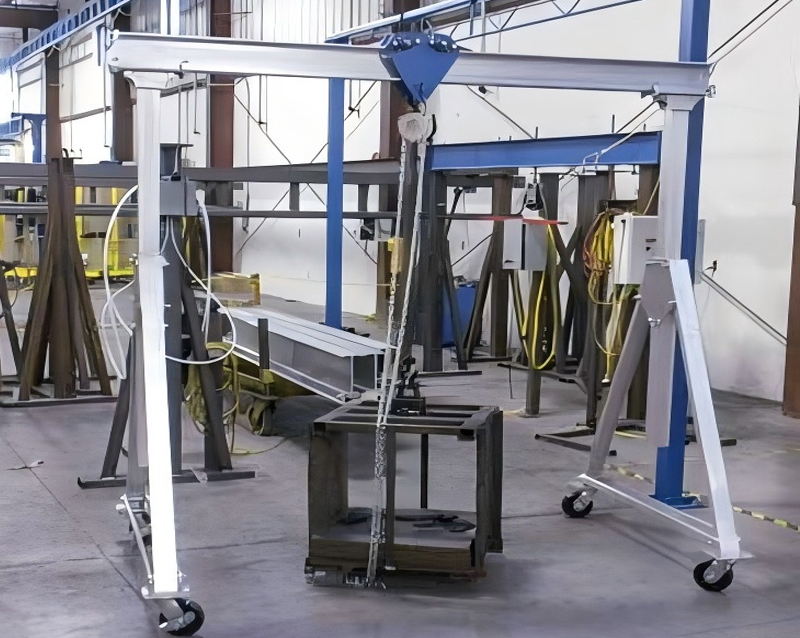

Zomax aluminum gantry cranes are constructed from lightweight aluminum and are available with pneumatic casters, enabling the cranes smooth maneuverability on rough or uneven surfaces. Their lightweight simple design and ease of disassembly and reassembly make them ideal for a wide range of applications, including laboratories, cleanroom environments, electroplating, medical device processing, dust-free workshops, injection molding workshops, and other environments with high safety and hygiene requirements.
