Zomax jib cranes are designed for a seamless user experience offering accuracy, durability and minimal downtime. The cranes are easy to install and relocate,making them ideal for almost any kind of workstation.
We offer a variety of models and structural types to suit different work sites and user needs. Several different ways to fix the jib to the wall or floor are available, along with different lifting mechanisms like chain hoists, wire rope hoists and manual hoists . With a load capacity of up to 10 tons, the pillar jib cranes offer 360-degree rotation to meet a diverse lifting requirements.
For more information, please contact us. Our engineers will provide you with professional and customized material handling consultation and solutions.

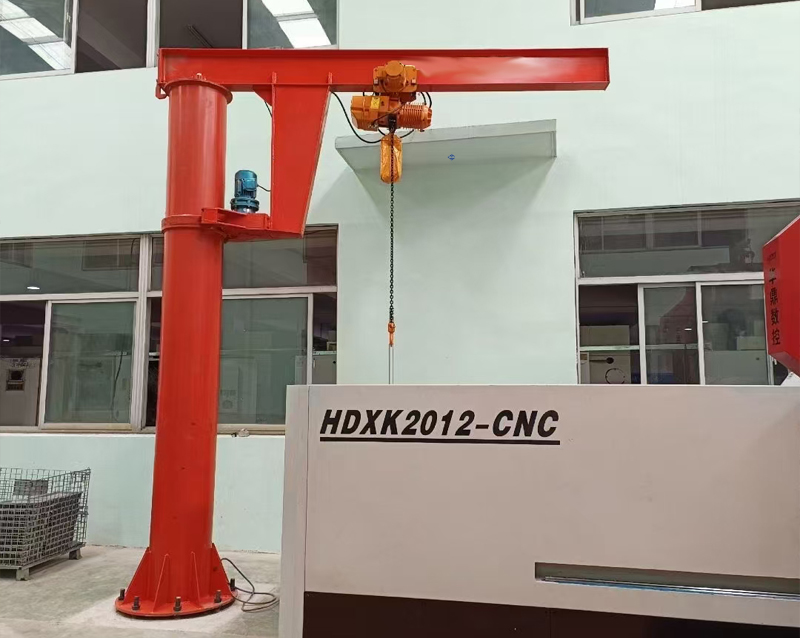

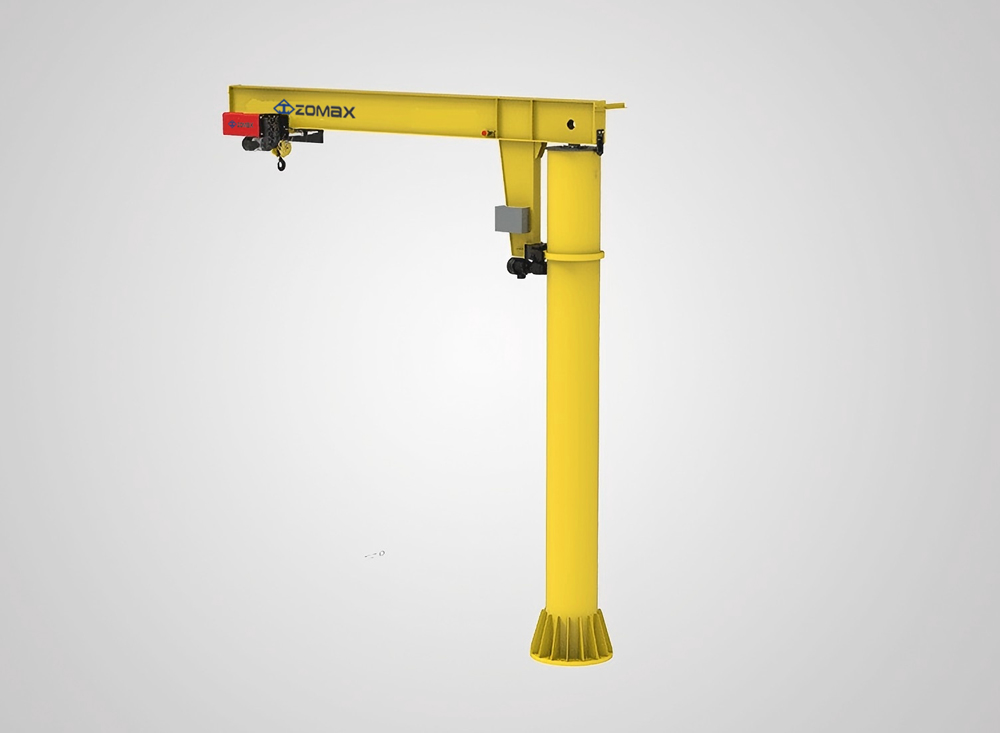

Free standing jib crane / Pillar jib crane / Floor jib crane
Zomax floor mounted jib cranes provide more ergonomic lifting capabilities, simple operation and require less maintenance. Installed on a ground foundation, no other facilities are needed for support,making them ideal for short-distance material handling or as an economical supplementary solution to overhead cranes in crowded spaces.
Zomax floor mounted jib crane supporting a variety of design options. Concrete foundation and foundationless jib cranes are available, with cantilever arms offering 180°, 270°, or 360° rotation and a selection of lifting mechanisms They offers a slewing length up to 16 meters and a load capacity up to 10 tons.
Contact our technical engineer to design a suitable and reliable jib cranes for you.
Multiple designs for jib arms based on customer requirements:I beam, box girder with I beam, tie rod type or other customized options
Material options: Steel and stainless steel are available for different environments
Steel: offers excellent strength and durability, providing cost-effective solution
Stainless steel: offers rust and corrosion resistance, ensuring long-term reliability in harsh environments.

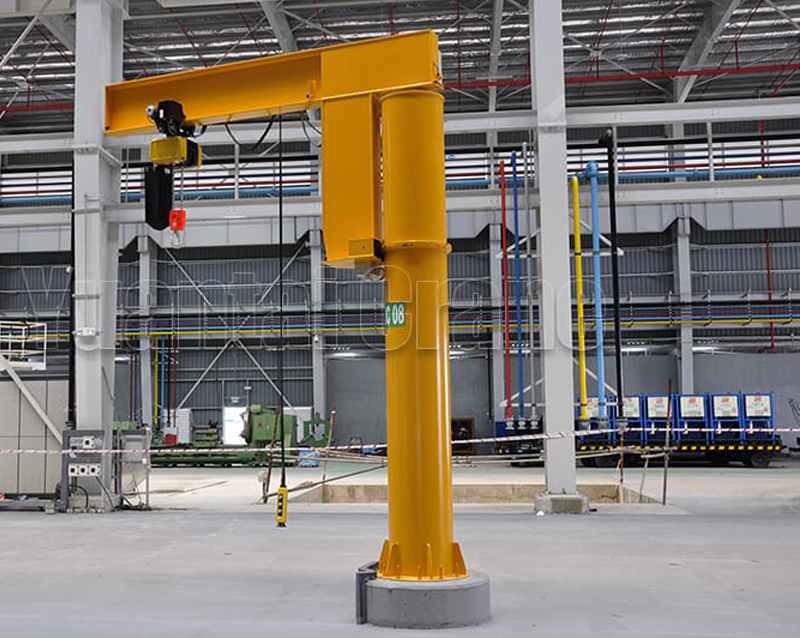

High-strength steel is securely anchored to the floor, providing a stable base for steady slewing.

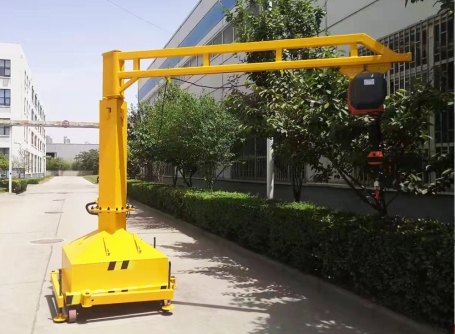

Concrete foundation and foundationless jib cranes are available, providing flexibility and versatility
Three mounting methods for foundation jib cranes: Bolt-type base plate, Insert, or sleeve insert mounted foundation.
Rotation degree：180°, 270°and 360°
Hoist options: manual, electric chain, and wire rope hoist
Robust festooning and easy running with reliable cable carriers
Cable routing options: Cables can be routed from below, the side, or above.
| Lifting capacity | Up to 10tons |
| Lifting height | Up to 12m |
| Span | Up to 16m |
| Material | Steel or stainless steel |
| Two types based on foundation | Concrete foundation and foundationless |
| Maximum rotation | 360º |
| Rotation operation | Manual or electric |
| Jib Cantilever | I beam, box girder with I beam, tie rod type or other customized options |
| Hoist options | Manual chain, electric chain, and wire rope hoist |
| Rated voltage： | 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC |
| Crane type | Pillar jib crane with free standing jib design |
| Temperature | Standard temperature: -20 - +40°C |
| Control options | Pendant / remote |
| Environment | Indoors and outdoors |
| Working class | A3 |
Fast and precise tools for material handling
Easily adapts to your multipurpose facility with a wide range of options
Enhanced safety and productivity
Efficient and accurate load handling up to 10 tons
Advanced ergonomic design and adjustable features improve the operator experience
Simple to install and relocate
Longer lifecycle with low maintenance requirements
Easy serviceability minimizes downtime
Durability and Reliability

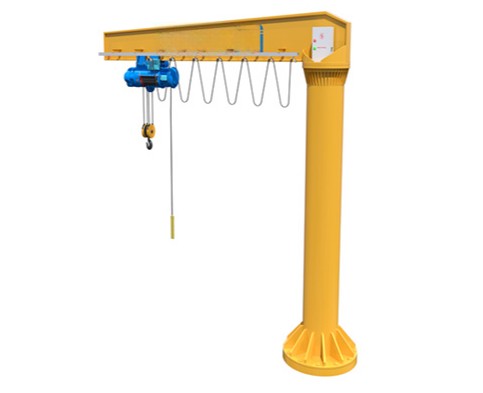

Base: Consists of a heavy-duty base and fixed columns, anchored to the ground with bolts to ensure stability and safety during lifting operations.
Rotating Part: Enables the cantilever to rotate 360 degrees horizontally, enhancing the crane's flexibility and operational range. It typically includes high-quality bearings and drive mechanisms.
Cantilever: The main load-bearing component, made from high-strength steel, offering excellent load capacity and durability. It can be customized in terms of length and shape.
Other Key Components: Includes columns, slewing arms, slewing drive devices, and electric hoists, ensuring the crane is lightweight, has a large span, high lifting capacity, and is both economical and durable.

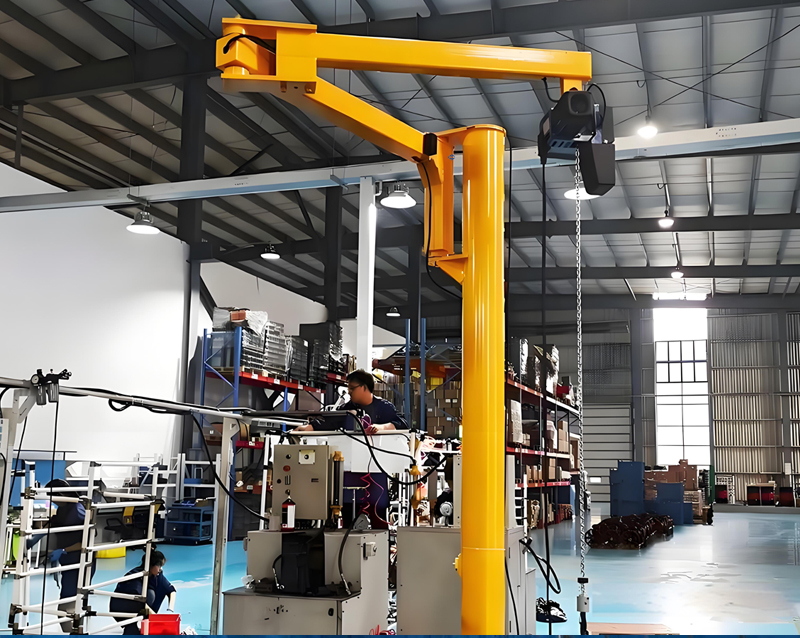

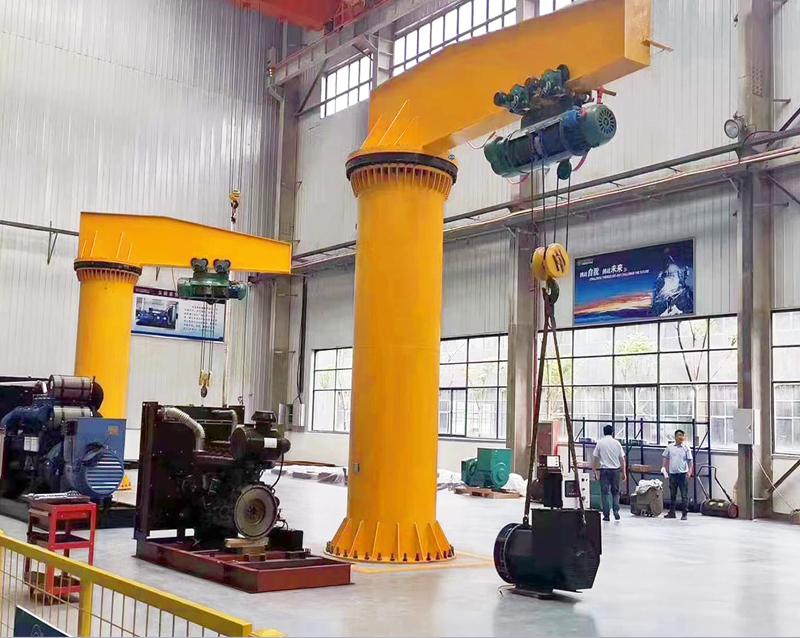

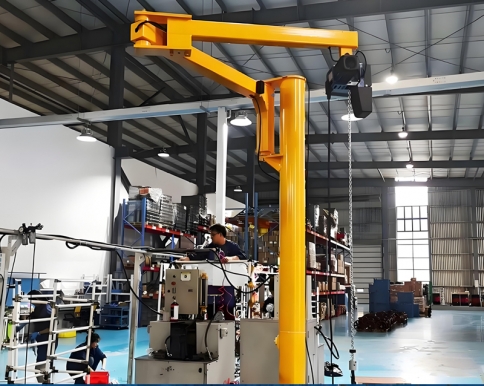

The design of Zomax floor mounted jib crane allows efficient material handling in environments where flexibility, accessibility and reliability are critical, and can be used in a wide range of indoor and outdoor applications. It can also serve as a complementary solution to large overhead cranes for different applications.

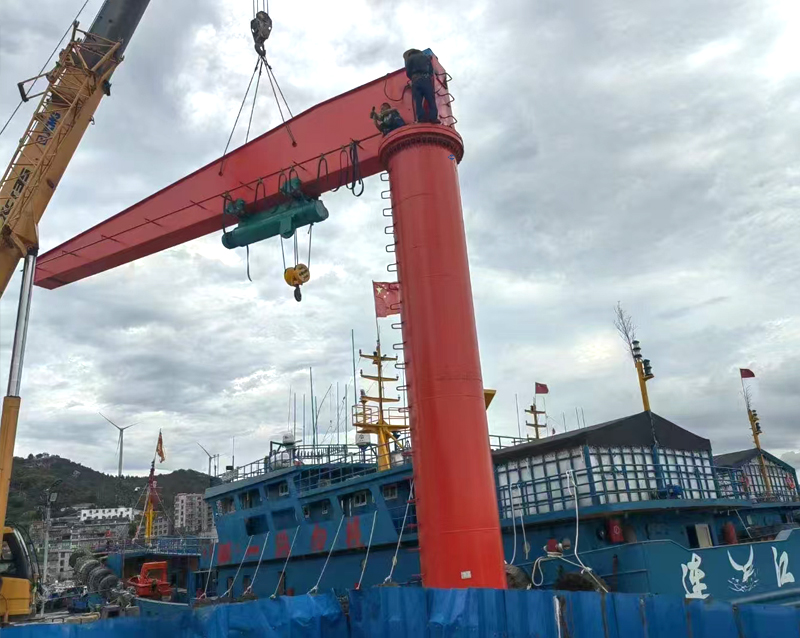

These cranes are widely used in workstations, warehouses, workshops, warehouses, docks, yards, construction sites and other places where floor mounted jib cranes can be installed. However, the crane is not suitable for hazardous occasions such as flammable, explosive, corrosive, etc.
