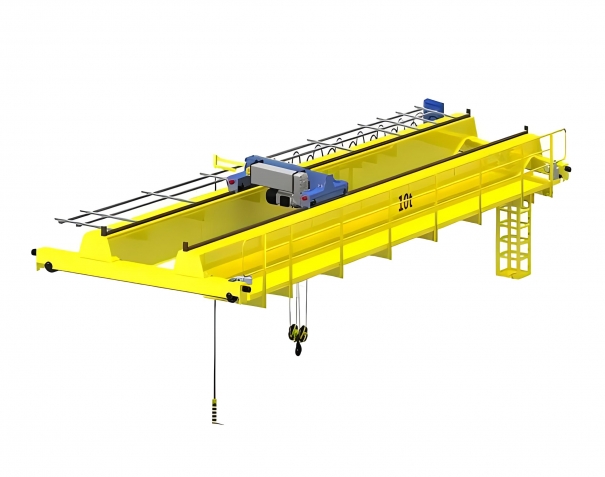

Zomax 80 tons Double Girder Overhead Crane is a double girder crane developed using a electric hoist trolley with superior performance and advanced technology as the lifting mechanism. The lifting capacity is up to 80 tons. The crane features lightweight, modular and parametric design.
The crane travelling mechanism is powered by a three-in-one drive system and controlled by an advanced variable frequency speed control system. It provides a perfect combination of mechanical excellence, lifting intelligence and service support. It has superior performance, safety and reliability, energy saving and high efficiency. It is ideal for lifting and handling tasks in workshops, warehouses, and power stations.
The 80 Tons Double Girder Overhead Crane is a heavy-duty lifting solution designed for handling loads up to 80 tons. Developed by Zomax, it features an advanced electric hoist trolley, double girder structure for enhanced strength, and a three-in-one drive system with variable frequency control for smooth, precise operation. Its modular, lightweight design ensures high efficiency, safety, and reliability, making it ideal for workshops, warehouses, and power stations.
The 80 Tons Double Girder Overhead Crane operates through three coordinated movements to lift and transport heavy loads:
Lifting Movement:
The hoist trolley, powered by a single or double-speed motor, drives the steel wire rope and hook to raise or lower loads vertically (up to 40m).
Cross Travel:
The hoist trolley moves horizontally along the double box girders, enabling side-to-side load positioning across the crane span (up to 50m).
Long Travel:
The entire crane moves along rails installed on the runway beams, allowing forward and backward motion across the workshop or site.
These three motions work together to enable precise, efficient three-dimensional material handling. Powered by a three-in-one drive system and controlled via pendant, remote, or cabin, the crane ensures smooth operation, enhanced safety, and reliable performance under demanding industrial conditions.
The three-in-one drive overhead crane offers significant advantages over traditional cranes by reducing operational complexity and maintenance costs. By combining the motor, gearbox, and brake intoa single compact unit, this system delivers smoother operation, lower noise, and higher efficiency, making it an excellent choice for businesses looking to optimize their material handling operations.
The Zomax 80 tons double girder crane with three-in-one drive is the perfect solution for lifting heavy loads efficiently while maintaining the highest levels of safety, reliability, and energy savings.
1. Handling Heavy Loads with Safety Risks
Lifting capacity up to 80 tons, ideal for heavy-duty applications.
Equipped with anti-sway system, dual braking, and overload protection to ensure safe operations.
Smooth and precise control with frequency inverter and three-in-one drive system improves safety during load positioning.
2. Low Positioning Accuracy and Unstable Movement
Variable frequency drive (VFD) ensures soft start/stop, reducing sway and improving control precision.
The three-in-one drive system ensures smooth travel and high positioning accuracy.
Optional load sway control further enhances safety in precision handling environments.
3. Space Constraints and Low Headroom Issues
Compact box girder design allows installation in restricted vertical space.
Custom span and lifting height options allow for non-standard workshop configurations.
Low-headroom trolley ensures maximum use of lifting height.
4. High Energy Consumption and Maintenance Costs
Energy-efficient three-in-one drive units reduce power loss and wear.
Low maintenance components such as long-life brake pads, sealed motors, and alloy steel hooks.
Reduced downtime and operating costs due to modular, easily replaceable parts.
5. Industry-Specific Challenges and Harsh Environments
Highly customizable options: explosion-proof design, corrosion-resistant paint, outdoor-rated enclosures, high-temperature insulation.
Suitable for industries such as steel production, energy, construction, shipbuilding, and more.
Operates effectively in temperatures from -20°C to +60°C, indoors or outdoors.
6. Lack of Smart Monitoring and Preventive Maintenance
Smart monitoring system (optional) tracks overloads, lifting cycles, motor starts, and brake wear.
On-screen alerts and maintenance tips help with preventive servicing.
Enables integration with factory MES/ERP systems for digitalized operations and equipment health tracking.
Zomax Cranehas over 20 years of experience delivering high-quality, customizable crane solutions. With advanced automation—including 310+ robots, smart equipment management, and automated welding lines—we ensure faster production, higher efficiency, and reliable performance for both standard and tailored crane systems.
Simple and compact hoist trolley equipped in Lifting mechanism
Variable frequency speed regulation improves the crane operation performance
Three-in-one drive system for crane travelling makes low noise, low maintenance and improves efficiency
The whole machine has low power, effectively saving electricity and other resources
High-quality components, low maintenance and long service life
Various options: hook anti-sway, double brake etc.
| Lifting capacity | Up to 80 tons |
| Lifting height | Up to 40m |
| Span | Up to 50m |
| Rated voltage： | 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC |
| Working class | A3-A5 |
| Temperature | Standard temperature: -20°C … +60°C. |
| Crane type | Double girder |
| Girder design | Box girder, compact box |
| Hoist motor | Lifting: single speed or double speedTravelling: single speed |
| Hooks | DIN 34CrMo4 hook |
| Trolley type | Hoist trolley |
| Control options | Pendant / Remote / Cabin |
| Environment | Indoors and outdoors |
| Safety functions | Hoisting safety limit switchOverload protectionHoisting motor thermal protectionLifting times and overload times supervision Hoisting motor startup times supervisionBrake pad thickness alarmDisplay fault information and maintenance tipsOther required functions |
Cost-efficient with higher load capacity
Compact and reliable
Flexible tool suitable for various industry applications
Longer lifetime and lower life cycle costs
Make the most of your work area
Easy to use and service
Low maintenance
Reasonable design and high working efficiency
Main Girder: Off-track box structure, CNC-cut from a single steel plate for high surface flatness and precision. Cross travel rail meets national standards 24#, 38#, and 43#.
End Carriages: Welded rectangular tubes with buffers for safe travel. Easily connected to the main girder with bolts .

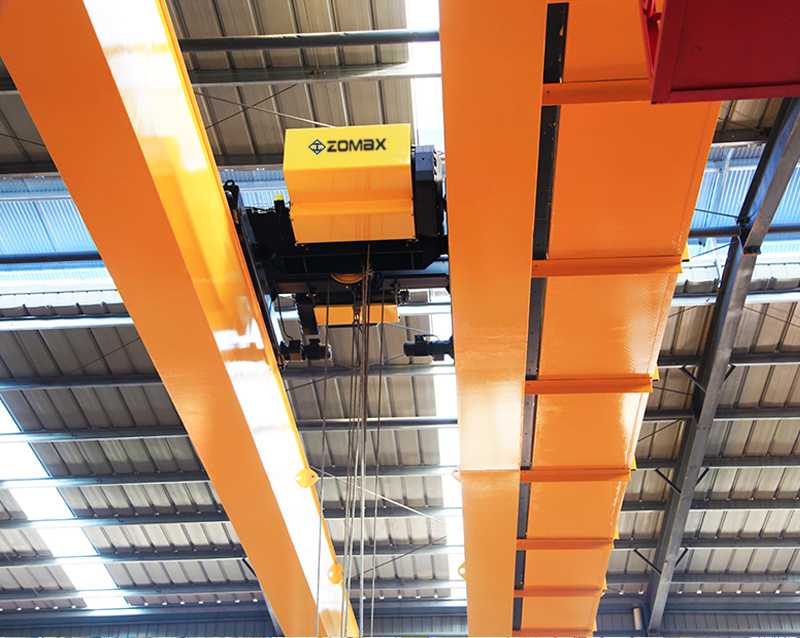

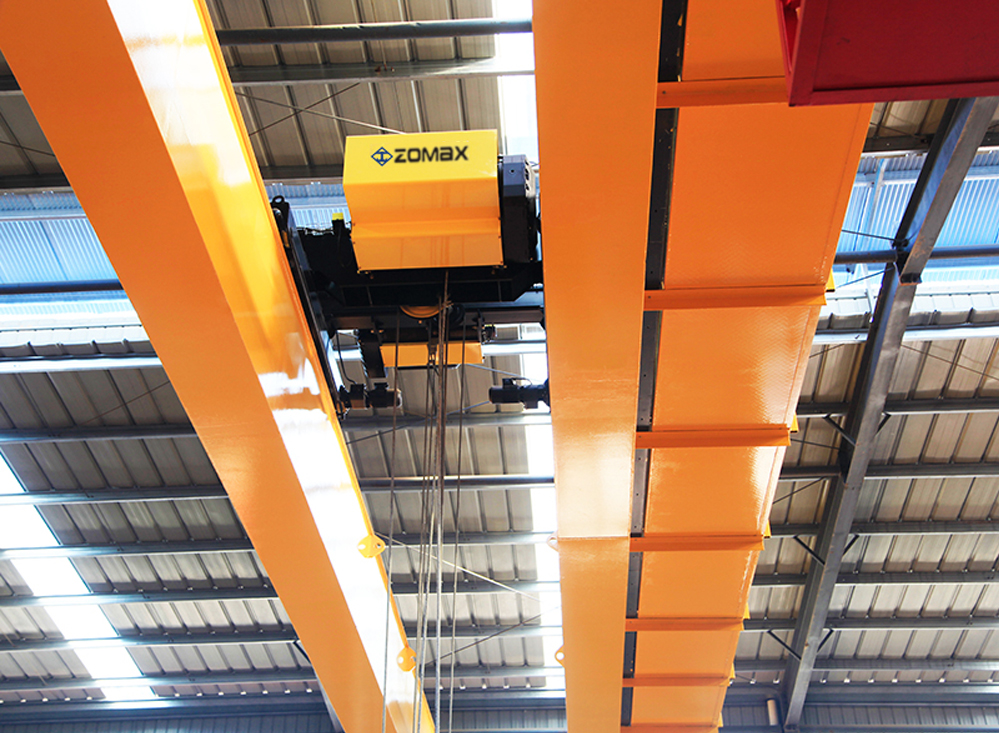

Hoist Trolley: Consists of a hoist, trolley frame, hook, and pulley. Utilizes three-in-one drive technology with a hardened surface reducer with low noise, no oil leakage, and long service life.
Electrical System: Equipped with original Schneider electrical components (France). Motor, reducer, and brake are top-quality Chinese brands.
Safety Devices: Includes buffers, limit switches, overload limiters, and voltage/current protection for safe operation.
The LH Double Girder Overhead Crane is suitable and reliable lifting solution designed for heavy-duty applications across many different industries. With a robust double-girder design, it offers a lifting capacity of up to 80 tons and is equipped with an advanced trolley-type electric hoist for smooth and precise operation. Its lightweight and modular structure allows for easy customization to fit specific operational needs.
The Zomax 80 tons Double Girder Overhead Crane is ideal for a wide range of heavy-duty lifting tasks, including:
Heavy manufacturing and assembly lines
Power plant maintenance
Construction and infrastructure projects
Warehouse and logistics operations
Steel mills and metal fabrication facilities
Its flexibility and robust design make it suitable for both indoor and outdoor operations, providing excellent performance in environments with varying conditions.
