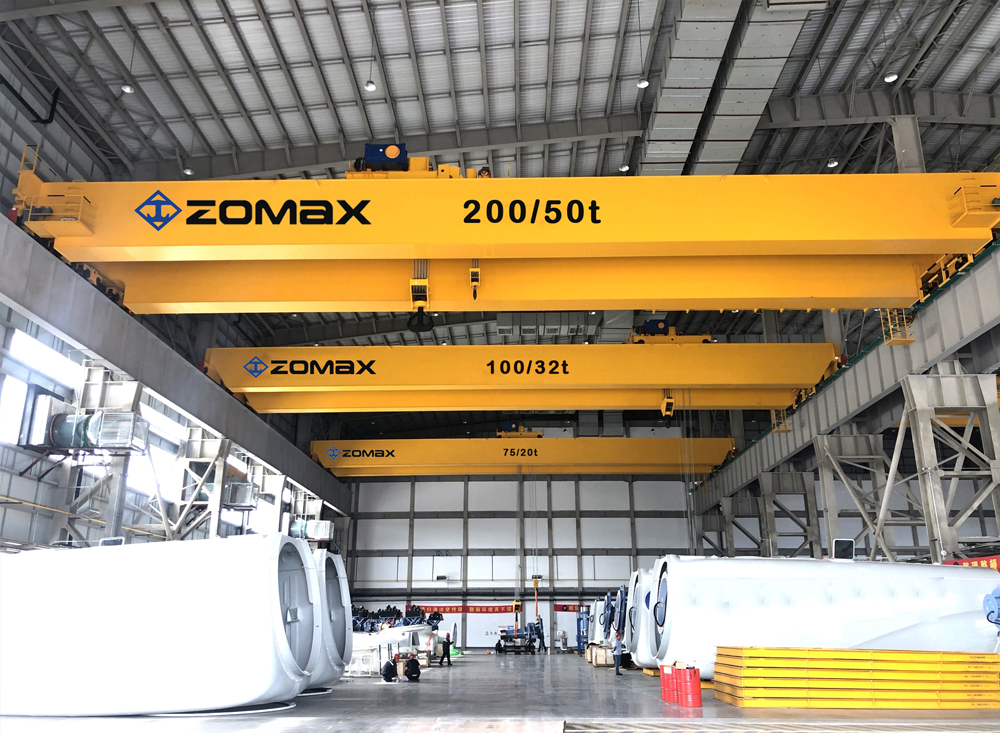

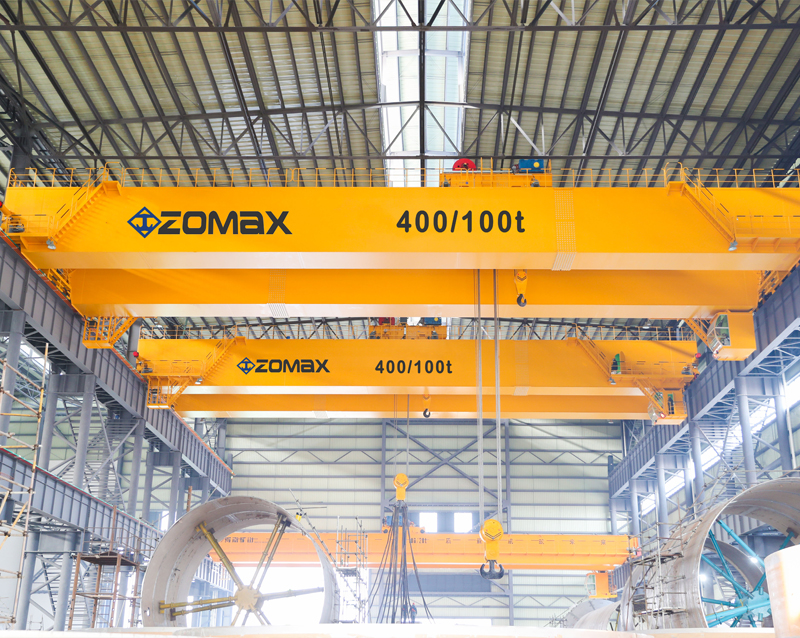

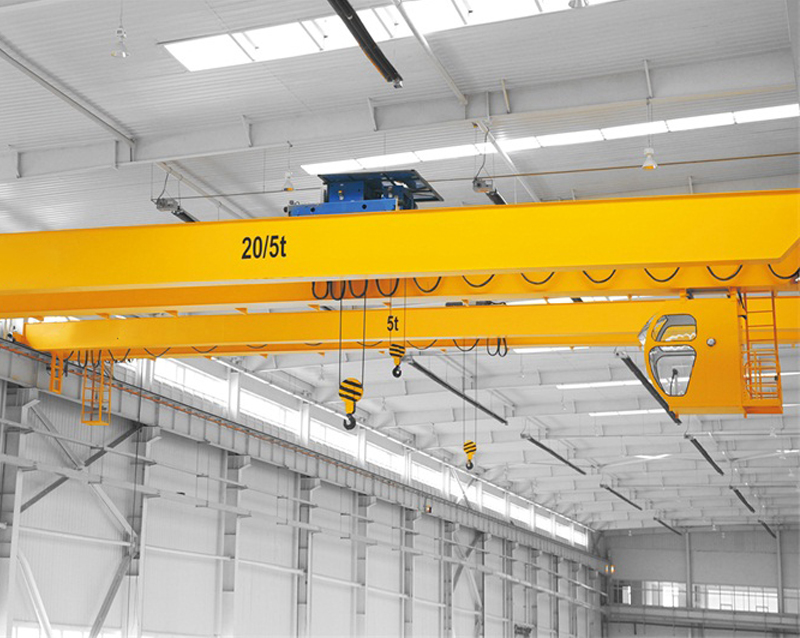

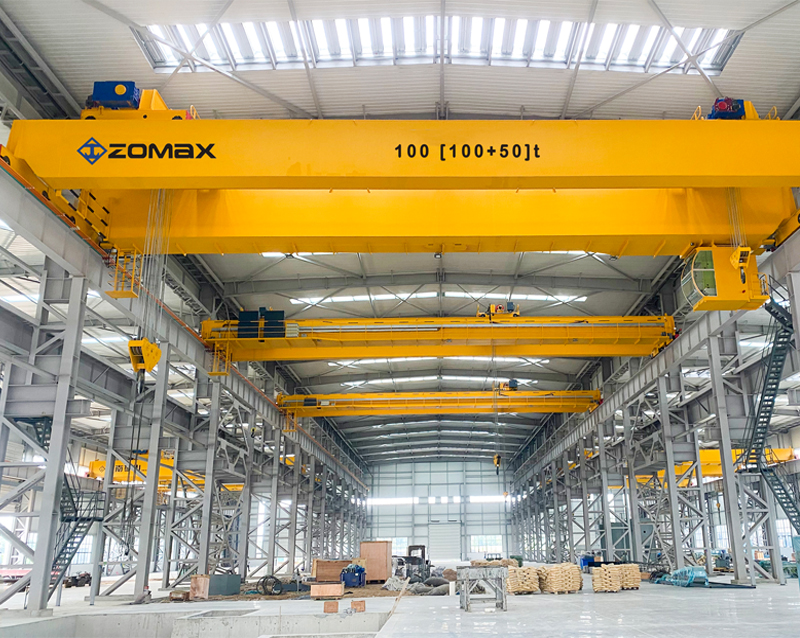

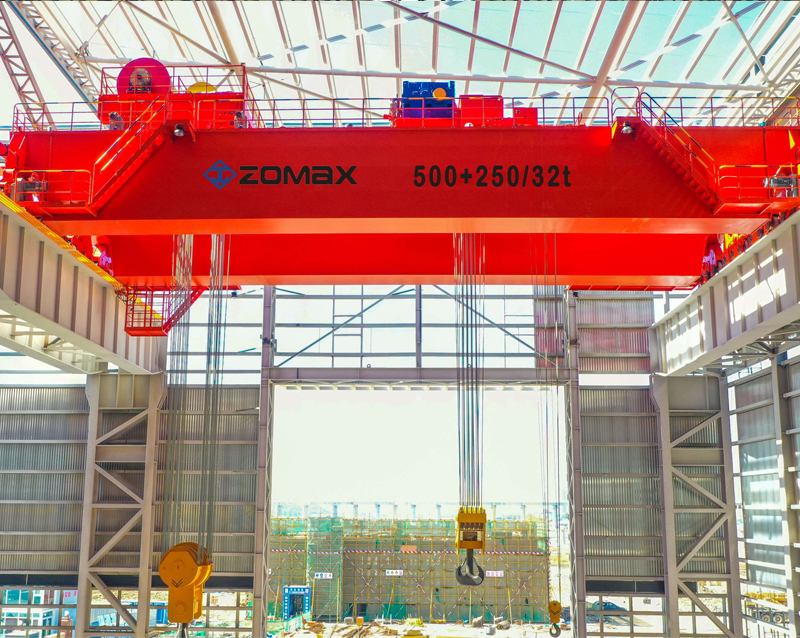

Zomax FEM/DIN double girder overhead cranes is a compact open winch crane having a lifting capacity up to 320 tons. The crane adopts serialization, standardization, and modular design principles, perfectly combining automation technology and mechanical transmission technology, applying advanced microelectronics technology, power electronics technology and fuzzy control technology to mechanical drive and control systems, and realizing automation and semi-automation. This cranes minimize deadweight and wheel pressure, making the building structure lighter and reducing operational costs.
With flexibility and long service life, Zomax FEM/DIN double girder overhead cranes are ideal for almost any industrial environment, especially suitable for heavy-duty process use.
Compact open winch trolley equipped in Lifting mechanism
Adopting three-in-one drive form,Hard-toothed reducer makes low noise, low maintenance, no oil leakage and extends service lifetime
Innovative hoisting machinery suspension enhances the lifespan of components, ensuring better alignment and overall performance.
Optimized rope reeving design minimizes rope wear, extending the equipment's service life.
Compact trolley design allows for reduced approach distances and ensures balanced wheel load distribution.
Trolley service platforms offer safe and convenient access to all key inspection areas.
Modular design, short design cycle, high degree of commonality, and improved component utilization
Full frequency conversion control gives smooth operation and consumption reduction
| Lifting capacity | Up to 320 tons |
| Lifting height | Up to 100m |
| Span | Up to 60m |
| Rated voltage： | 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC |
| Working class | A3-A7 |
| Temperature | Standard temperature: -20°C … +60°C. |
| Crane type | Double girder |
| Girder design | Box girder, compact box |
| Hoist motor | Lifting: double speed standard，VVVF Control optional; Travelling: VVVF Control |
| Hooks | DIN 34CrMo4 hook |
| Trolley type | Winch trolley |
| Control options | Pendant / Remote / Cabin |
| Environment | Indoors and outdoors |
| Safety functions | Hoisting safety limit switchOverload protectionHoisting motor thermal protectionLifting times and overload times supervision Hoisting motor startup times supervisionBrake pad thickness alarmDisplay fault information and maintenance tipsOther required functions |
High performance and reliability
Low headroom
Simple maintenance and upkeep
Wide operational range
Enhanced production efficiency
Energy-efficient and consumption reduction
Modular architecture allows adaptation to most industries and applications
Remote monitoring and digital platform, optimize uptime and facilitate proactive planning

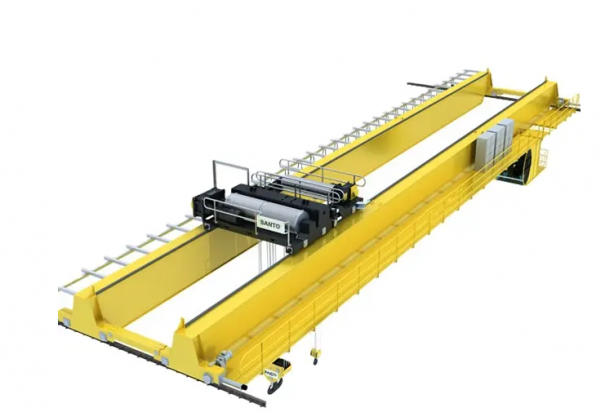

Bridge Frame: Consists of the main girder and end girder. Welded box-type main girder for strength and stability; compact end carriage with easy installation.
Traveling Mechanism: Independent drive ensures smooth and stable operation.
Trolley: Moves on the main girder, equipped with lifting and traveling mechanisms carrying loads with a compact design and wide coverage.
Electrical System: Features phase protection, variable frequency speed control, and anti-collision devices. Corrosion-resistant control box with high protection and easy maintenance.
Zomax FEM/DIN double girder overhead cranes are expertly designed and can handle a wide range of applications, including material handling, assembly lines, maintenance, and transporting loads across long spans. These cranes are capable of supporting higher loads, making them the ideal choice for industries that demand strength, reliability, and long-term durability, such as manufacturing, steel production, logistics, shipbuilding, and construction. We can also customize the span, lifting height, and control systems to meet specific requirements, ensuring our cranes are adaptable to diverse industrial environments
