The shaft pin sensor overload limiter primarily replaces the shafts of balance pulleys and fixed pulleys. It is commonly used in lifting equipment such as gate hoists, port machinery, and chain hoists, as well as in situations where other types of sensors cannot be installed.
Technical data | Action error: ≤±3%F.S. Comprehensive error: ≤±5%F.S. Environmental temperature: -20~+60℃, ≤90%RH. Protection level: Load sensor: lP65 Control instrument: lP42 Installation position: The position of the shaft pin in the pulley |
Alarm point | Warning when load reaches 90% of rated lifting capacity. Alarm when load capacity reaches 105% of rated lifting capacity and power off after 2S. Immediate disconnection when load capacity reaches 130% of rated lifting capacity.

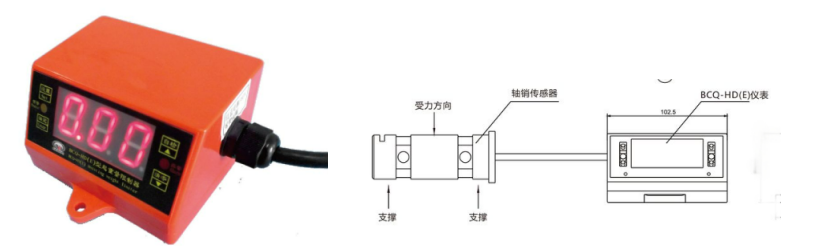

Application: European cranes, European hoists, port crane, chain hoists and where other types of sensors cannot be installed. Feature: 0.8-inch LED display, display data clearly, display angle of 45 degrees, convenient for ground operators to watch. |

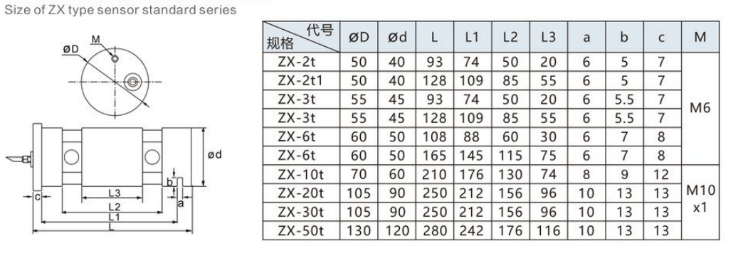

Standard size |
|
