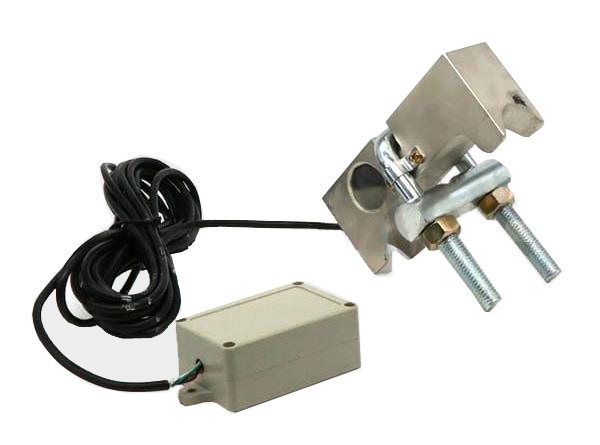

BCQ weight hoist overload limiter is designed for wire rope electric hoists of various specifications. This device offers features such as audible alarms, immediate overload alerts, lifting motor circuit cut-off, and weight display. These functions effectively prevent accidents related to crane equipment and personnel due to overloading. So it plays a vital role in enhancing safety in modern industrial operations like metallurgy, machinery, mining, ironworks, docks, and warehousing.
Zomax offers different configurations tailored to various usage requirements. If you require any further guidance, please feel free to reach out to us.
Technical data | Action error: ≤±3%F.S. Comprehensive error: ≤±5%F.S. Environmental temperature: -20~+60℃, ≤90%RH. Protection level: Load sensor: lP65 Control instrument: lP44 Installation position: Fixed-end wire rope |
Alarm point | Warn when load reaches 90% of rated lifting capacity. Alarm when load capacity reaches 105% of rated lifting capacity and power off after 2S. Immediate cut off power when load capacity reaches 110% of rated lifting capacity. |

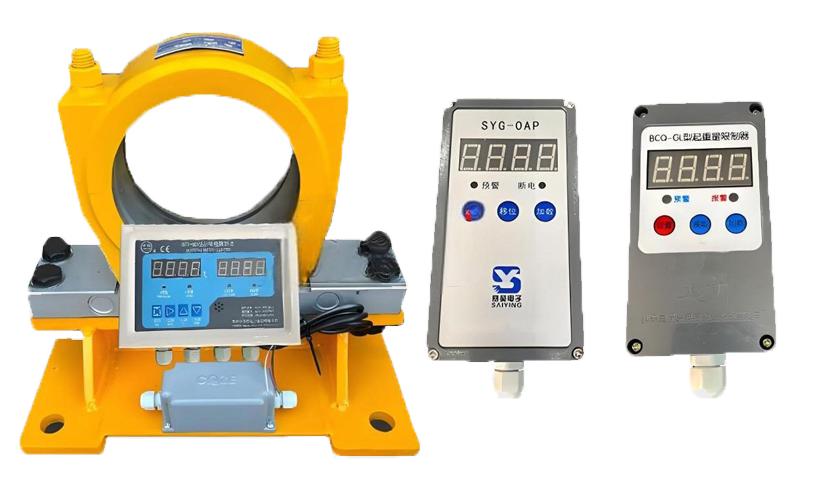

Two configurations | BCQ-HD4 Application: Suitable for various types of electric wire rope hoists. Feature: Stable performance, wide usage BCQ-HD3 Application: Suitable for electric wire rope hoists in environments with strong electromagnetic interference like non-ferrous metal smelting workshops. Features: High protection level, anti-electromagnetic interference design, and wide voltage tolerance making it ideal for harsh industrial environments. |
