Crane end carriage

Crane end trucks

The end beam is a light and small lifting equipment operating mechanism accessory, used for the crane traveling, it is one of the main supporting parts of the bridge crane and gantry crane.

Zomax offers the advanced safety functions for the end carriage, like anti-sway, cross limit switch, photo sensor, storm locker, sound and revolving light, rail deviation correction device etc.

In additions, we can offer wheel block, bogie of overhead crane and gantry crane design for different application. Any requirements please don't hesitate to contact us.We respond fast.


Features:

The length of the end beam ranges from 1.2 meters to 6 meters for cranes ranging from 0.5 tons to 100 tons.
The motor can be equipped with standard or tailored
The crane main beam girder can be connected with the end carriage beam by welding or strength bolts.
There are bolt holes available for bolts connection.
The various combinations of 2 wheels, 4 wheels,8 wheels, and 16 wheels will be satisfied with different wheel pressure.
The various combinations of end carriage and main girder are easily adapted to different workshop space.

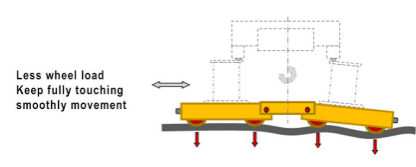

Flexible joint, smoothly running

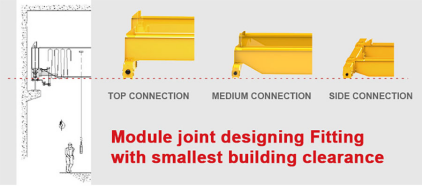

Module joint design fitting with any building clearance
Guide roller for rectifying wheel deviation
Flat wheel, ground safety for logistic
Central lubrication
Adjustable vertical inclination and horizontal divergence

Advantage

Modular end carriage, direct driving

Compacted size, high efficiency

Flexible joint, smoothly running
