Motor type

Features

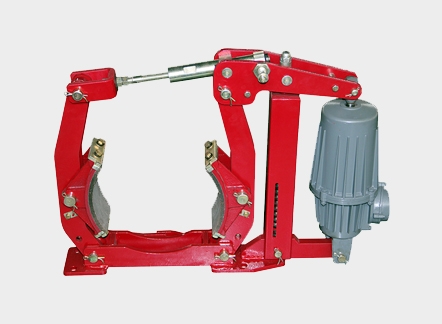

1. YWZ4 Series Electric Hydraulic Drum Brake

• There're two types of brake pad installations: riveted and inserted (please mention when ordering).

• The main pivot points have self-lubricating bearings, ensuring smooth operation and a long lifespan

  without needing additional lubrication.

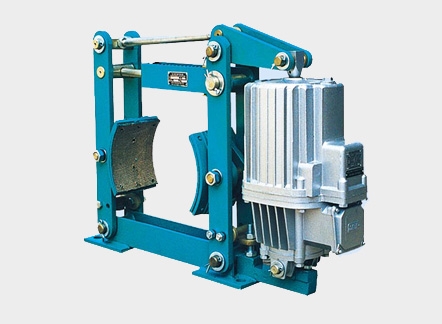

2. YWZ9 Series Electric Hydraulic Drum Brake

• The interlocking shoe clearance balancing and auto-aligning devices ensure equal brake shoe clearance on both sides, eliminating the need for adjustments and preventing one-sided brake lining adhesion.

• Self-lubricating bearings at the main hinge points enhance transmission efficiency, extend service life, and require no lubrication during operation.

• The brake spring is housed in a side square tube, with a surveyor's rod for easy torque reading, simplifying customer usage and eliminating the need for calculations.

• The card-type one-piece brake lining allows for quick replacement and is available in various materials, including half-metal (non-asbestos), hard, semi-hard, and soft (with asbestos) options.

• Advanced thrusters provide precise performance and long service life.

3. YPZ Series Disc Brake

• Main pivot points feature self-lubricating bearings, ensuring high transmission efficiency, extended service life, and maintenance-free operation.

• Brake springs are enclosed in a square tube, with a torque scale for easy and precise adjustment of braking torque.

• Asbestos-free brake pads are designed with a quick-replacement cartridge system.

• An automatic wear compensation device maintains consistent brake pad clearance and braking torque during use.

• Optional features include:

• A manual release device.

• Limit switches for release and closure, providing status signals for proper brake operation.

• Brake pad wear limit switches, signaling when pad wear reaches its limit.

• An Ed series actuator with a delay valve for smooth, delayed brake closure.

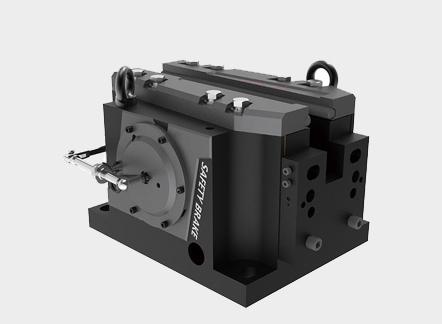

4. AP Series Electromagnetic Safety Brake

• Its unique braking principle eliminates the need for an external power source, making it more economical than comparable brake.

• The mechanical structure ensures braking force is directly proportional to load force, enhancing safety and reliability.

• A compact and lightweight design offers advantages over similar brakes of the same specification.

• Provides fail-safe operation by ensuring safety braking during transmission system failures or malfunctions.

• The electromagnetic mechanism employs low-voltage DC control, high-voltage excitation, and low-voltage maintenance, improving safety, extending lifespan, and reducing energy consumption.

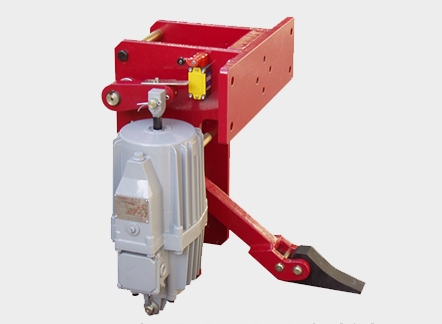

5. YFX Electro-Hydraulic Windproof Iron Wedge Brake

• Includes a release limit switch for interlock protection.

• Main pivot points feature self-lubricating bearings, ensuring high transmission efficiency, responsive and reliable operation, and extended service life.

• Equipped with a manual release mechanism for convenient maintenance.

• Compatible with the Ed reset spring pusher, delivering excellent performance, robust sealing, and a high casing protection level.

• The spring reset function ensures reliable wedge block resetting after a power outage, preventing unresponsiveness.

• The wedge block is specially processed for a high friction coefficient and enhanced anti-corrosion properties.

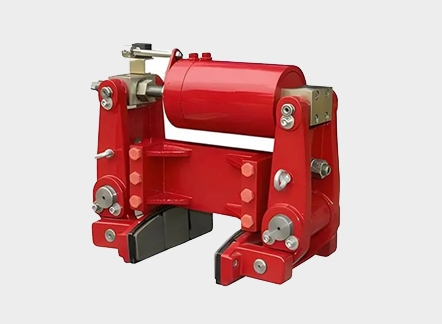

6. YLBZ Series Hydraulic Wheel Brake

• Features a normally closed design, where the hydraulic station applies force to the disc spring for release, ensuring safety and reliability.

• Includes a limit switch for interlock protection.

• Asbestos-free friction pads provide stable performance, with a unique installation structure for easy replacement.

• Corrosion-resistant construction, with all fasteners and pins made of stainless steel.
