Industrial radio remote controls for cranes provide flexible operation with rain and dust protection. Big buttons enable easy operation, even with heavy gloves.

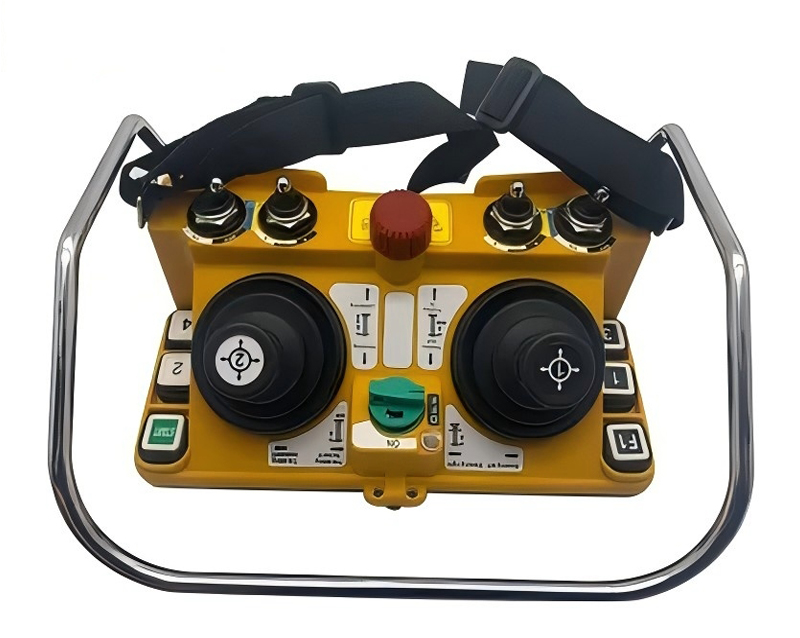

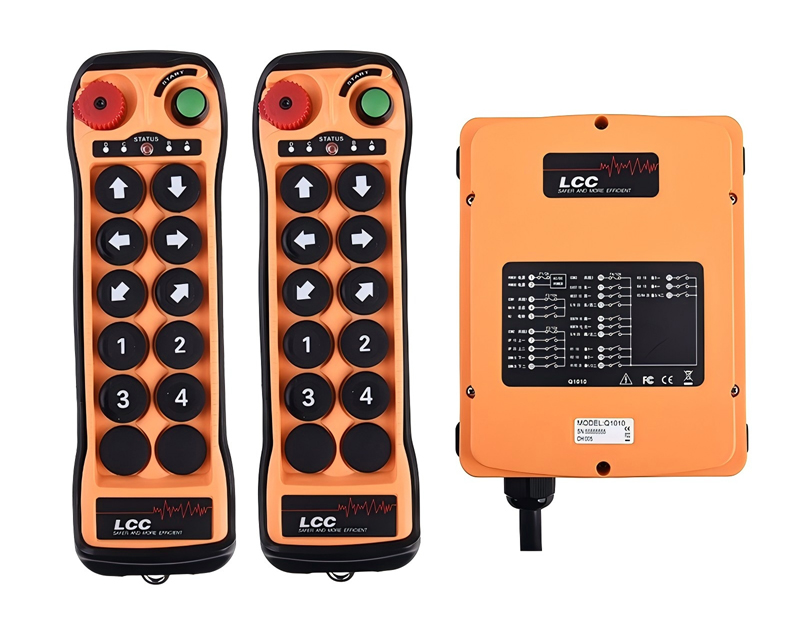

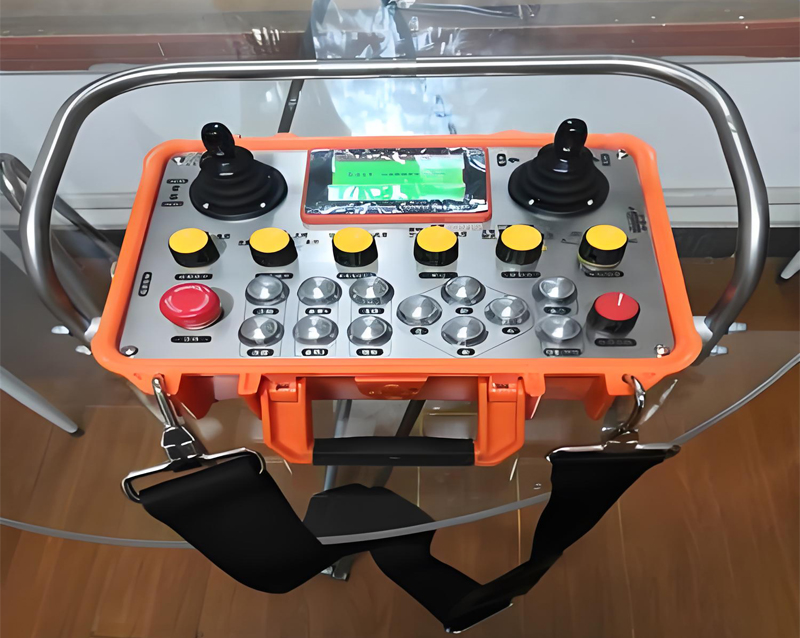

Zomax can offer 2-12 double speed buttons, or joystick controls with step-less speed. Meanwhile, we provide customized remote controls to meet specific technical needs, like multi-switch , 0–10V voltage signals, 4–20mA current signals, and communication protocols (232, 485, CAN bus), plus dual transmitters, dual receivers, and synchronization control for two cranes

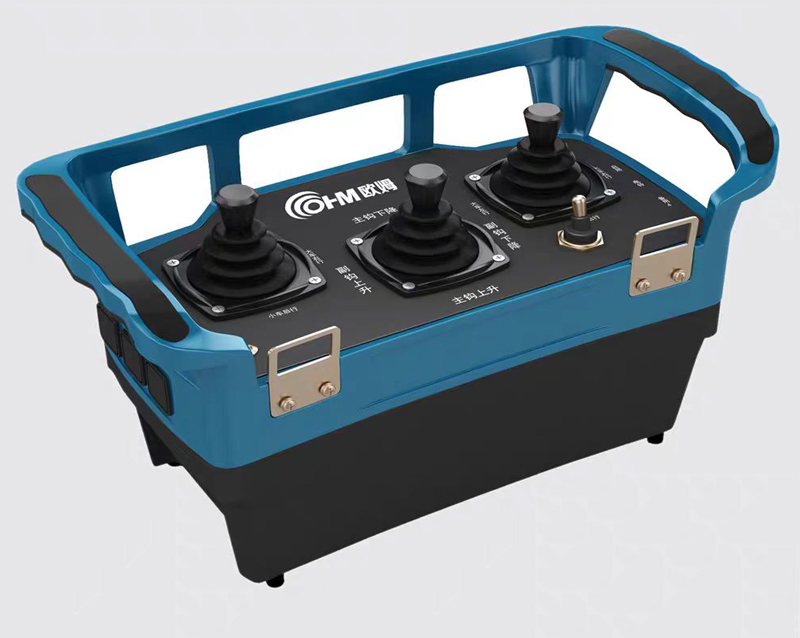

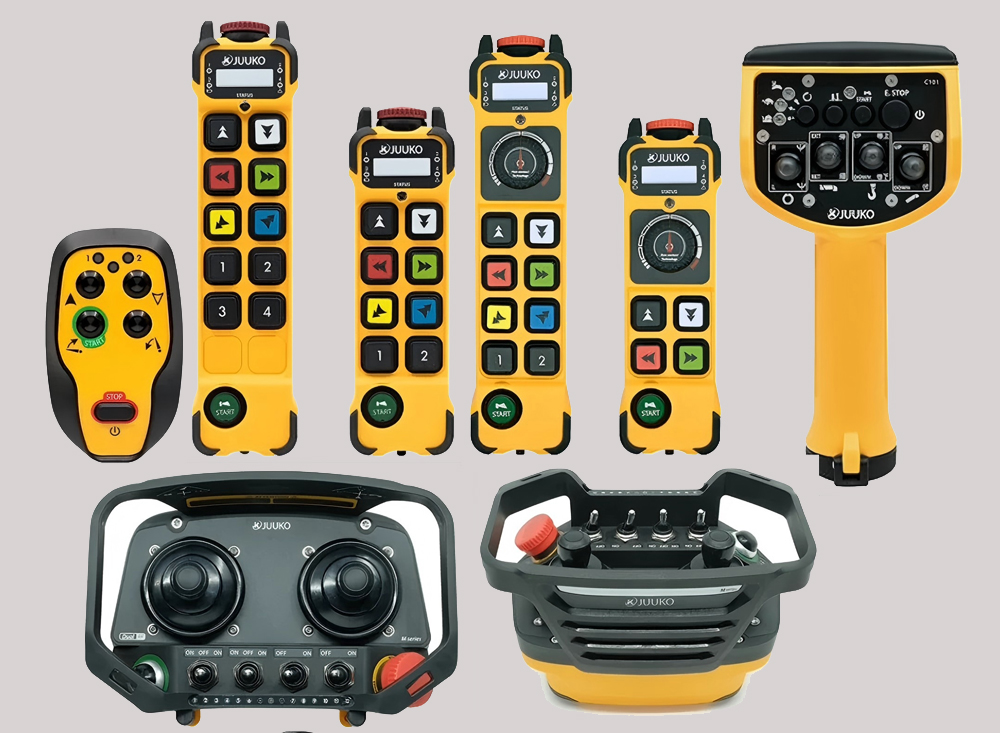

Schneider, Juuko, and OHM remote controls are also available, preferred by many crane users, and offered at competitive prices.

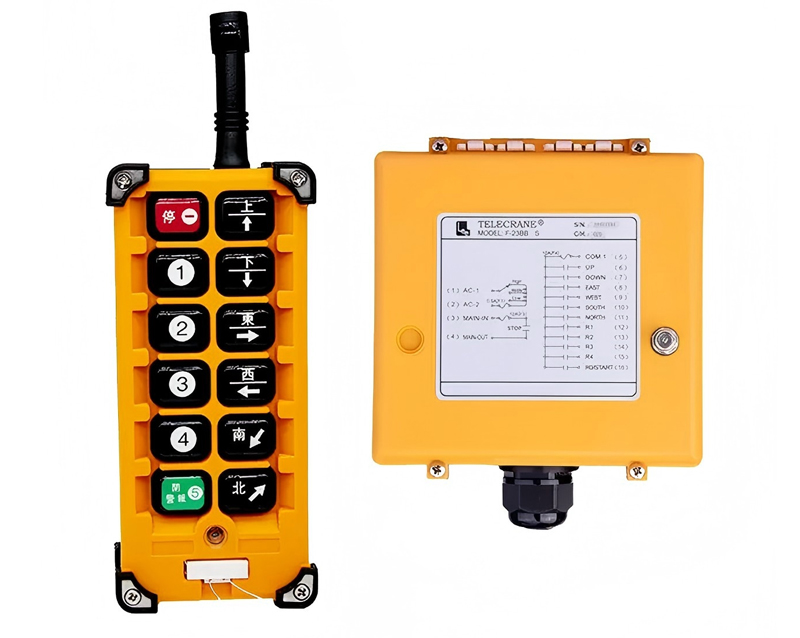

Comprises a transmitter unit, generating control signals and a receiver unit, permanently being installed on the crane and electrically connected to the crane's control panel
Durable nylon-fiber housing for superior shock resistance
Low power consumption using 2 AA batteries (lasting up to 2 months under normal operation)
Operating range of up to 100 meters
Programmable functions via Windows-based software
Cost-effective, easy to operate, and pre-wired with standard cabling for simpler installation
Fully compatible components, reducing spare parts inventory needs
4.3 billion unique ID codes, hamming code, and enhanced watchdog circuit for security and reliability
Control distance | Up to 100m |
Control point | 16 |
Certifications | CE,FCC,ISO 9001 |
Unique code | Over 4.3 billion unique ID codes |
Operating temperature | -35℃ to +80℃ |
Enclosure protection class | IP65 |
Transmitter power | DC 6V |
Receiver power | AC 380V/220V/110V/48V/24V or AC/DC12V |
Output capacity | Full sealed relay output , 5 A |
Frequency range | VHF 312-331 MHz |
Radio output voltage | 0-10 V |
Offers different speed options and intuitive controls, easy operation
Compact, lightweight, and ergonomically designed
Waterproof, dustproof, and resistant to acids and alkalis
Low power consumption with excellent stability
Frees operators from cab or pendant controls, away from hazards,enhancing safety by allowing operation from a safer distance
Provides diagnostic data for operators or service professionals during crane maintenance or inspections

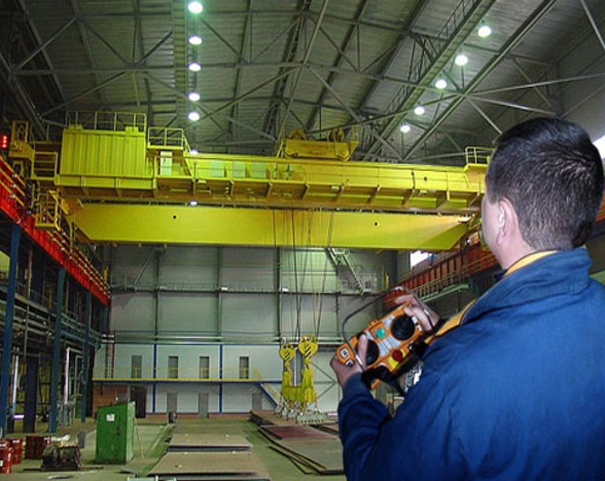

An industrial crane remote control is a device used to operate construction machinery or industrial equipment. It is widely used in sectors like metallurgy, shipbuilding, container terminals, warehousing, machinery manufacturing, chemical processing, paper production, construction, firefighting, and engineering. With an effective control range of up to 100 meters in any direction, it functions reliably even when obstacles are present.
