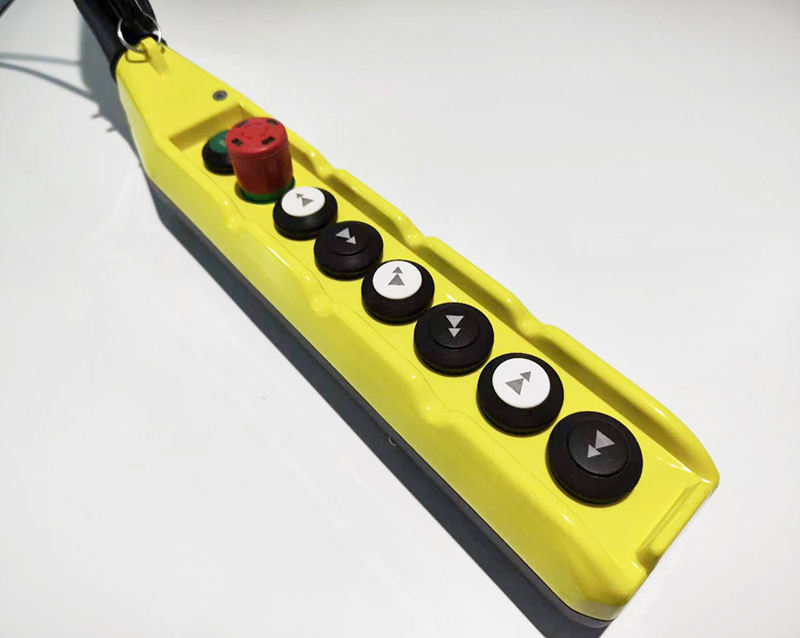

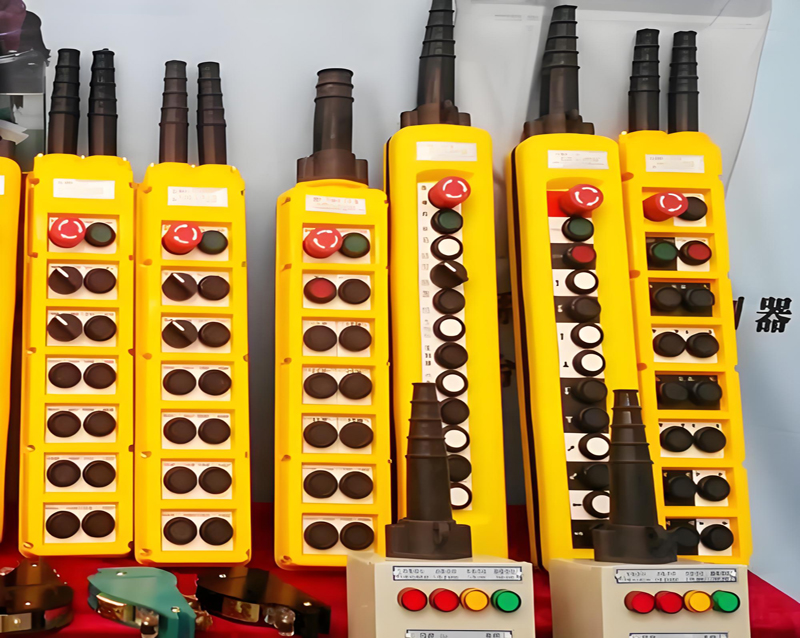

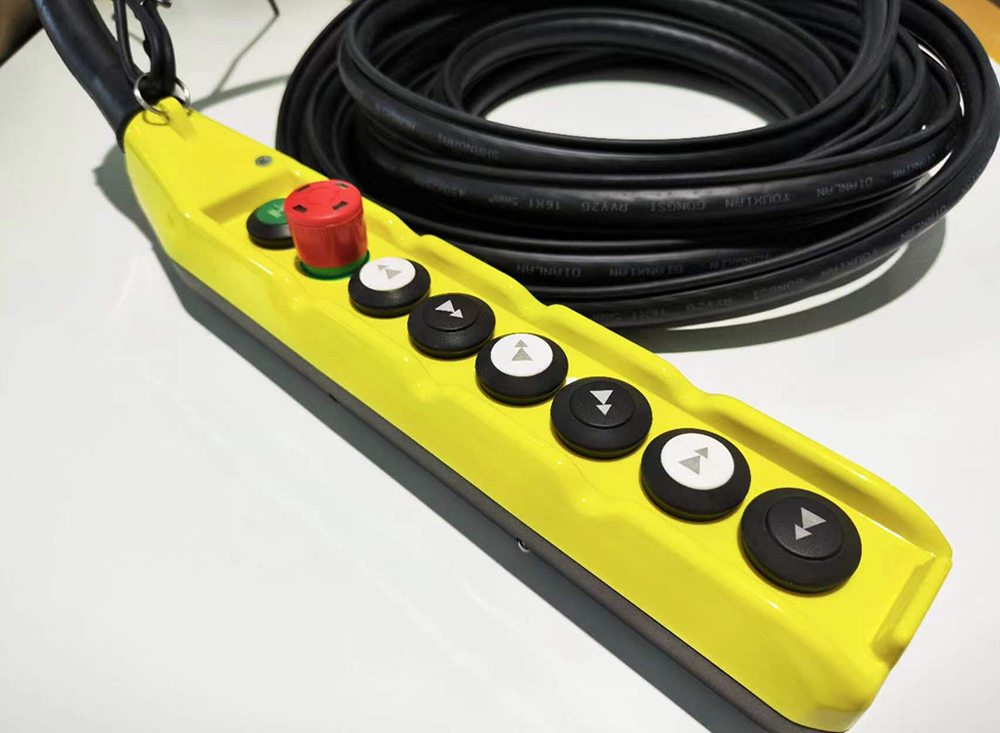

The crane pendant control is a button-operated transmitter connected to the crane's electrical control panel via a pendant cable, allowing control over the crane's movements. Zomax offers pendant controls with 2 to 16 single speed and dual speed buttons including emergency stop button. Additionally, we can provide Explosion proof pendant controller for explosive environments.
New reinforced ABS material, difficult to wear, long service life.
Silver-nickel alloy contact surface.
A wide range of design styles to fulfill individual requirements
Applicable to dust, outdoor, rain operating environment
Operation at single and double speeds, huge contact capacity, shock resistance up to 100g

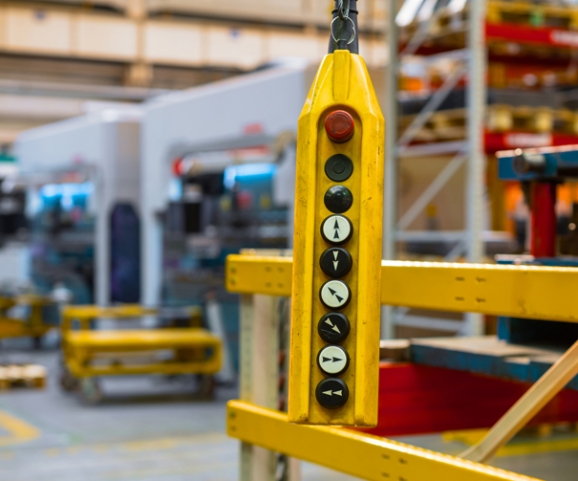

Keeps the operator close to the load for precise handling
After rotation or finger movement, the emergency stop switch shall be reset, and the operation button is automatically reset.
| Protection rating | IP 65 |
| No. Of push-button | 2~16 |
| Conductive electrical contact | Copper-based |
| Speed | Single or double speed |
| Circuit control system | 50 Hz or 60 Hz, rated voltage below 500 |
| Temperature range | - 15 °c to + 70 °c |
| Installation ambient | Altitudes up to 2000 m, pollution level 3, and class ii installation |
High impact resistance – can't be dropped by the operator because it's suspended from the crane;
Resistance to corrosion, moisture, dust, dirt, and grime;
Insulated design provides shock resistance;
Ergonomic design for operator comfort and less fatigue;
High mechanical strength, collision resistance, emergency stop switch, and mechanical interlock,safe and reliable.
The contact has great capacity and extended service life.
Operation with one hand, light and convenient.
Copper contact with excellent conductivity
Suitable for cranes with lower duty cycle classifications but adaptable to nearly any overhead crane type, Ideal for indoor and outdoor, Not suitable for environments with heavy shock or vibration, explosive hazards, or corrosive gases and dust
