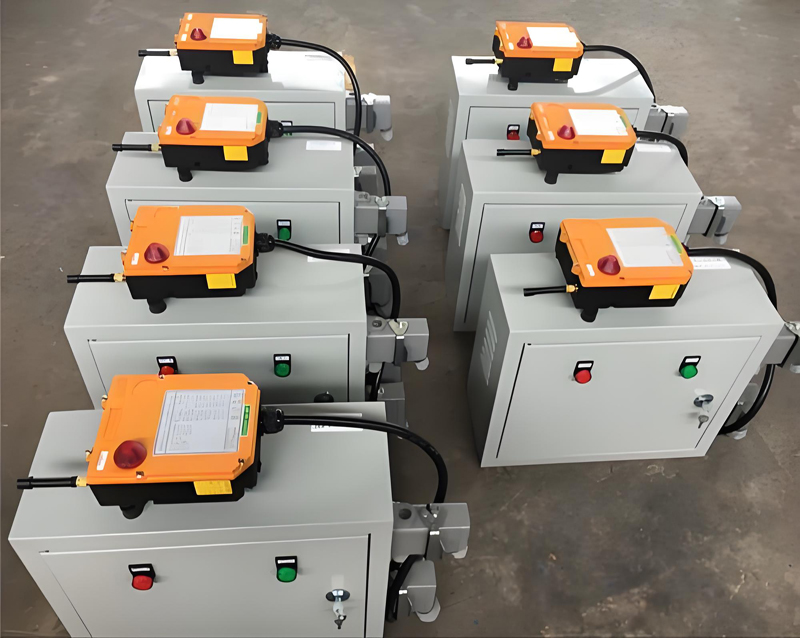

The crane control panel is the core component of crane operation. It consists of a hoisting control box, a long travel control box, or an integrated crane control box. These control boxes issue commands to perform various crane movements. Once a command is received, the control box sends action signals to different mechanisms to execute the crane’s functions.
In addition, Zomax offers advanced intelligent electrical system services, such as anti-sway technology, crane automation, IoT integration, and data recording
The enclosure has an IP65 or IP66 rating
The socket plug-in design enables easy on-site connection.

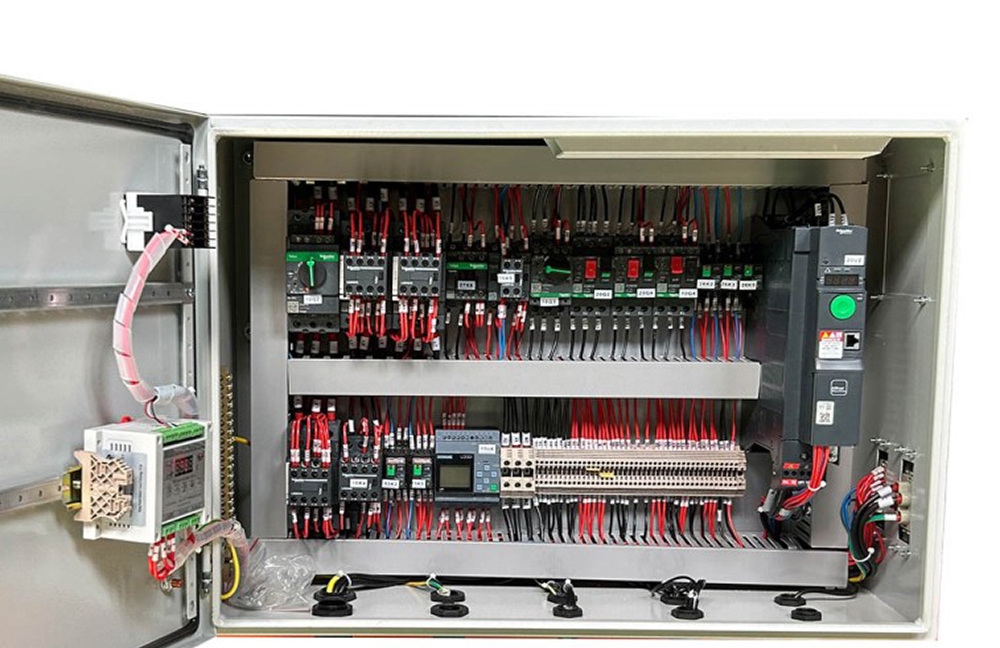

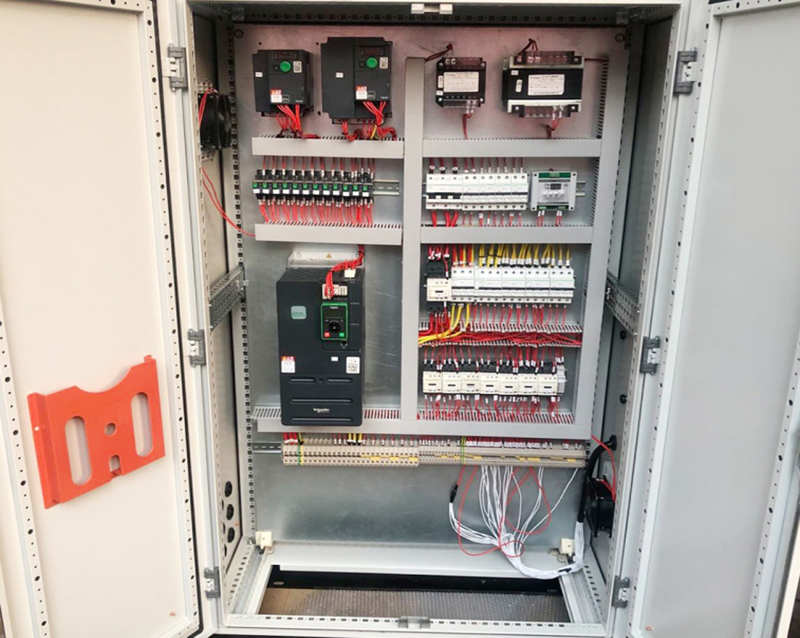

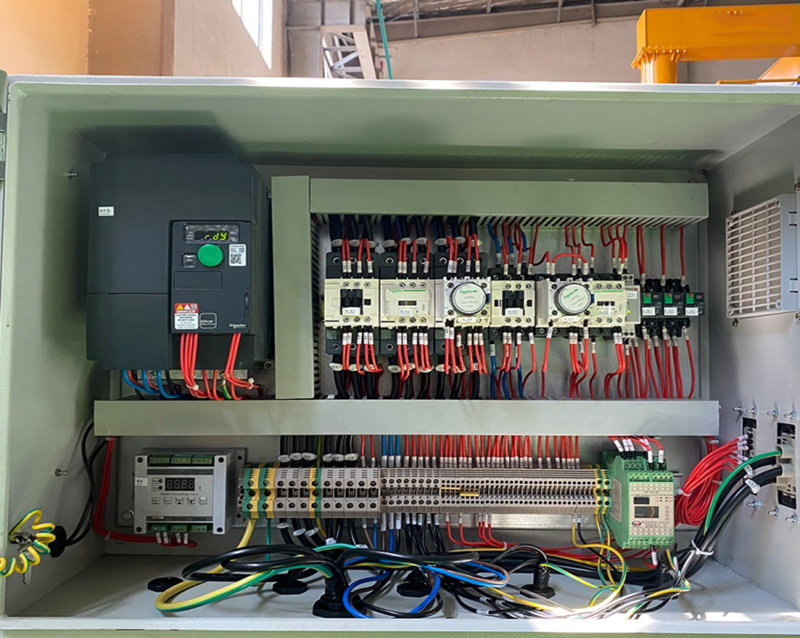

High-quality electrical components are used, including Schneider contactors and MCBs, Phoenix terminals,etc.
Various inverter brands are available, including Schneider, Siemens, Delta, and ABB.
The main power options range from 220V to 580V, 3-phase, 50/60 Hz, with control voltages of 24V, 36V, 48V, 110V, or 220V.
| Model | Functions |
| Long Travel Control box (NLCP) | Include the control and inverter for the crane long travel |
| Hoisting Control box (NHCP) | Include the control and inverter for cross travel and lifting |
| The Whole Control box (NCCP) | Include the control and inverter for long travel, cross travel and lifting |
