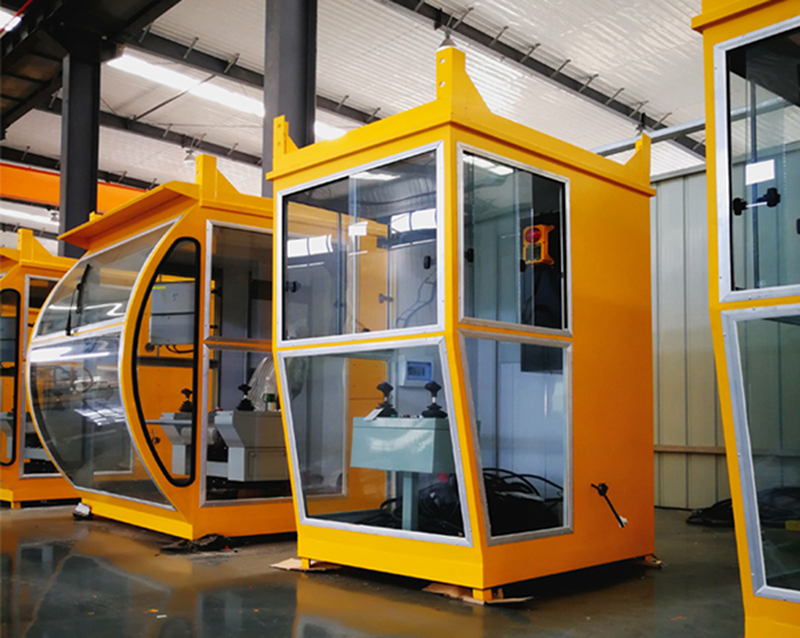

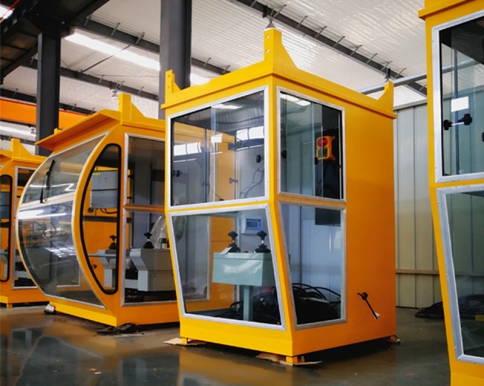

The crane cabin is a key facility ensuring operator safety, providing a vantage point for real-time monitoring of the crane, hook, and cargo movements. Zomax crane operator cabins are designed for ergonomic comfort, visibility, and ease of use, creating an ideal workspace.

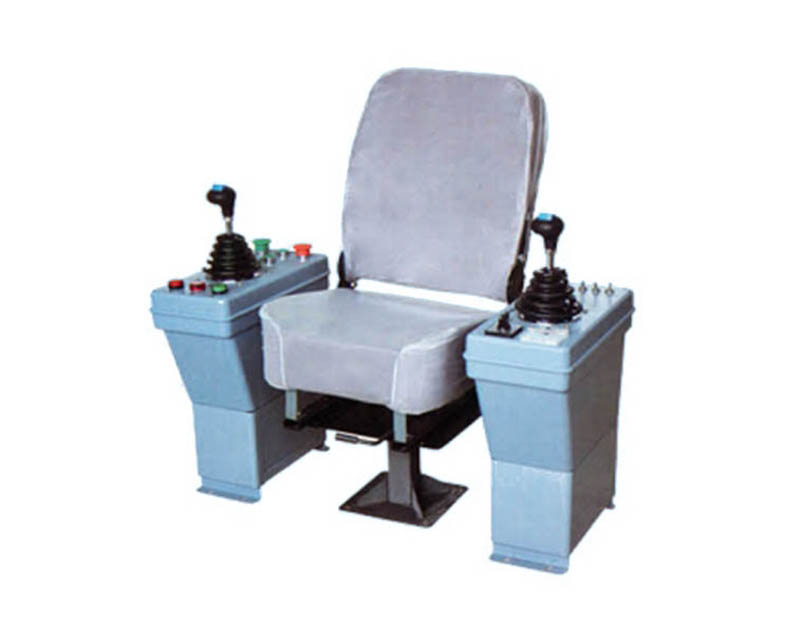

Each cabin includes a seat with a joystick console; Zomax offers a 5 stepless control joystick console for overhead and gantry cranes. Cabins can also be customized to different dimensions and feature additional options like monitoring screens, air conditioning, etc.
Comfortable Seating: Adjustable, breathable seats with easy access,comfortable operation and optimal viewing angle.
Ergonomic Design: Spacious enough for operators to work comfortably over extended hours.
Durable Construction: CNC-cut cold-rolled steel cab structure with tempered glass for impact and heat resistance.
Ideal Flooring: Removable steel floor with anti-slip, insulating rubber mats.
Protective Interior Materials: Fireproof, waterproof, soundproof, and heat-insulating finishes and keep noise below 70 dB.
Environment Control: Adjustable temperature and sufficient lighting inside.
Quality Assurance: Includes ultrasonic testing and magnetic inspection.
Precision Craftsmanship: Precisely cut, smoothly welded walls and frames ensure durability and a polished appearance.
| Types | Open crane cabin; Closed crane cabin; Insulated crane cabin;Capsule crane cabin |
| Cabin door orientation | According to requirements |
| Installation position | Left/right mounted |
| Operating temperature | Open cab: 10~30°c; Closed cab: 5~35°c; Insulated cab: -25~+40°c. |
| Painting | 3 layers, film thickness 75~140㎛ |
| Standard configuration | Ceiling lights;Grilles (footplates);Power sockets and strips;Insulated floor rubber mats;Oscillating fans;Coat hooks; Fire extinguisherOperator's consoleCab platform door limit switchElectric bell |
| Options: | Storage cabinets; air conditioning; safety railings; cooling fan; windshield wipers and washers; roller blinds; audible and visual alarms; spare sockets/strips; foot pedal controllers; or other options as per customer requirements. |
Simple, Intuitive Controls: Easy-to-use controls enhance operational efficiency.
Dust proof and Sealed Design: Doors and windows are well-sealed, providing waterproof, dustproof, and shockproof protection.
Low Vibration and Noise Reduction
Enhanced Comfort and Ergonomics: Designed for operator comfort over long periods.
Improved Visibility: Wide field of view allows clear monitoring of crane and load movements.
Safety-Focused: Built to maximize safety for operators in all conditions.
Crane cabins can be mounted on different types of cranes, including overhead (bridge) cranes and gantry cranes. They are extensively utilized across a range of industries, such as ports, container yards, waste management, construction, paper production, mining, steel manufacturing, machining, material handling, and shipping.
The following are specific adaptions for each type cabin:
Open Crane Cabin: Designed for indoor use only, typically used with bridge cranes, double hoists, and electric single-beam cranes.

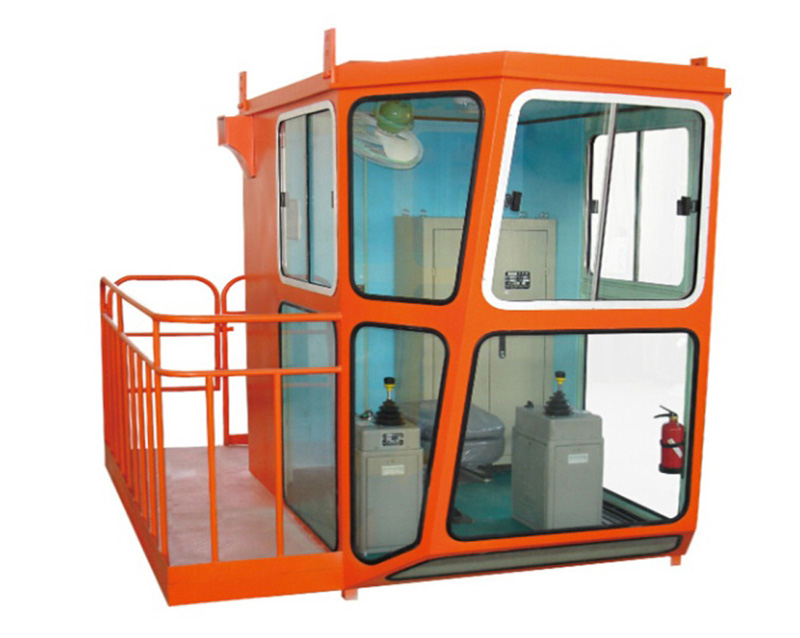

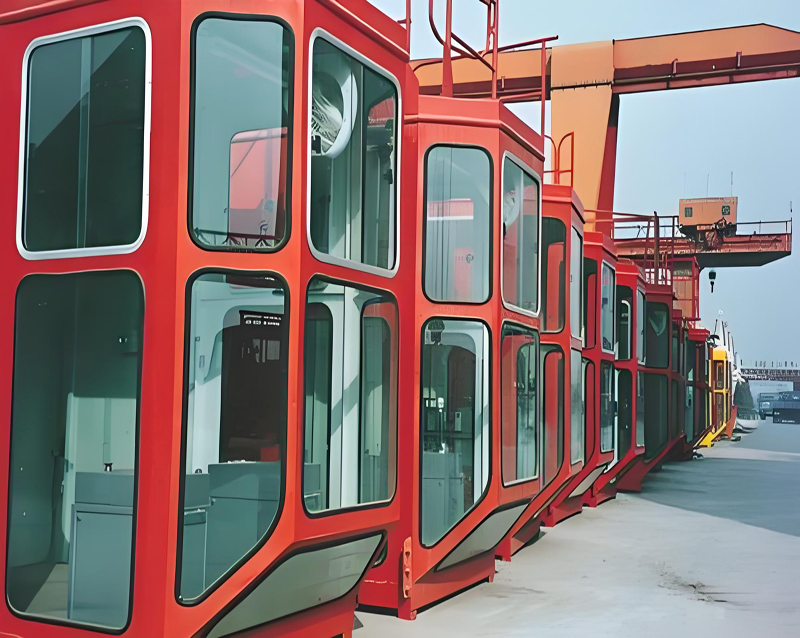

Closed Crane Cabin: Suitable for both indoor and outdoor applications, commonly found on bridge cranes, gantry cranes, and electric single-beam cranes.
Insulated Crane Cabin: Ideal for metallurgical environments, often used on casting cranes.

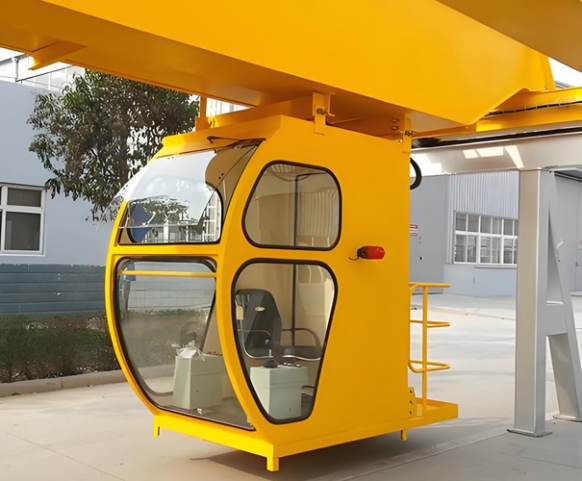

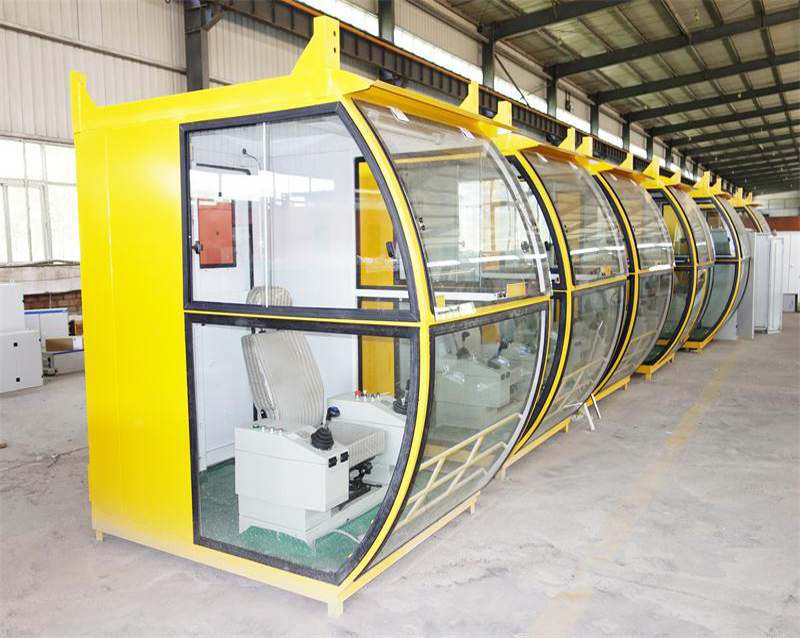

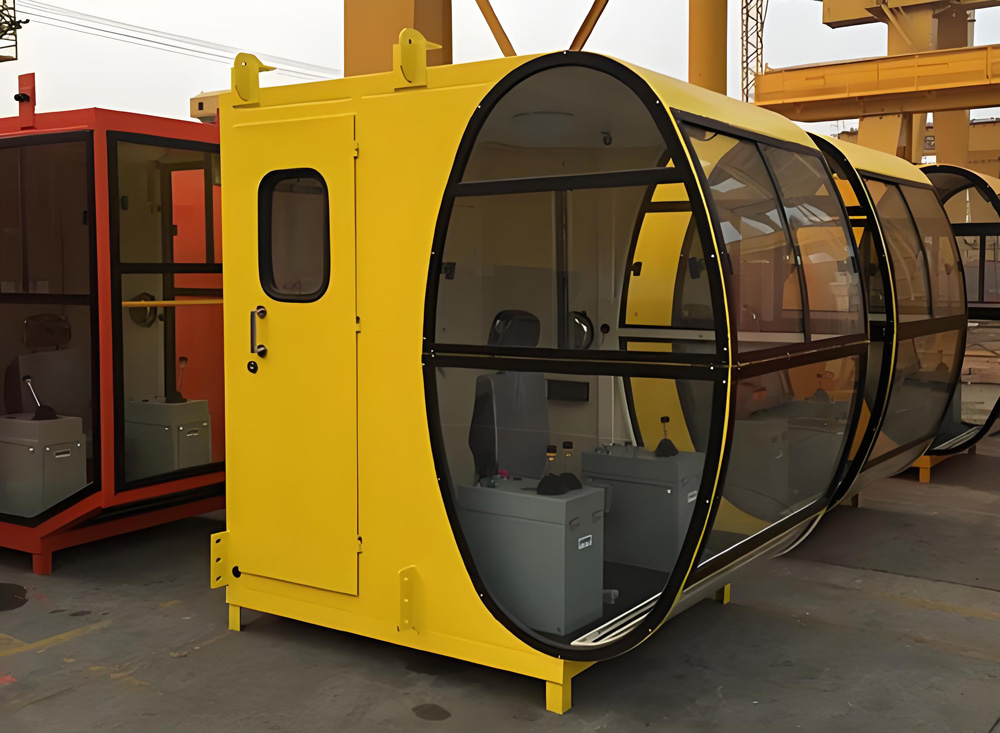

Capsule Crane Cabin: Generally enclosed and frequently used on European-style (FEM standard) cranes.
