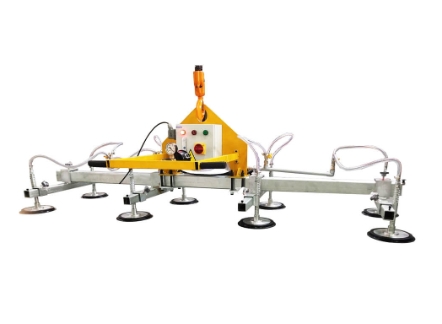

1.Metal sheet vacuum lifter

Description:
Designed for efficiently loading, unloading, transporting, and handling metal sheets in warehouses, factories.

Powered by AC with an electric vacuum pump, creating vacuum to suck the plates

They can operate horizontally or rotate 90 degrees between horizontal and vertical positions.

Features:

lUtilizes vacuum suction for suction and release,specially designed system, easy to operate

lAdjustable suction frame and cups in the X-Y axis accommodate different plate sizes.

lLightweight, ergonomic design allows comfortable, fatigue-free operation over extended periods.

lWide AC 380V-440V 50Hz-60Hz electric drive (optional compressed air driven or electric driven)

lComplies with international safety standards, safety and efficiency.

lEquipped with visual and audible safety alerts

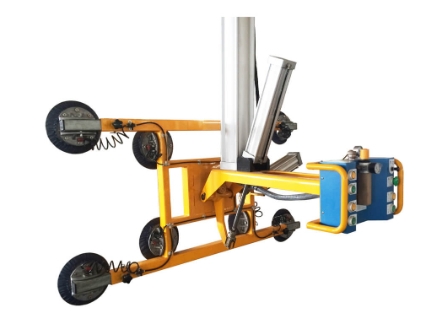

2.Glass lifter -Tilter & Rotator

Description:
Designed for moving and handling glass panels and window fabrications,

provides powered 90° tilting and rotating for precise load manipulation.

Suitable for most work positions in a plant, it enables operators to handle loads safely and easily.

Features:

lHigh-speed air injection to the vacuum nozzle ensures quick glass gripping.

lTilt and rotation functions can do most of handling.

lSpring-mounted silicone suction pads provide secure contact with glass.

lSingle energy source (compressed air) makes it less maintenance.

lOptions: Energy Saving System, Acoustic & Optical Alarm
