Lifting electromagnets and magnetic lifting devices are essential below-the-hook attachments for industrial overhead and gantry cranes. These devices are widely used across steel processing plants, metal scrap yards, foundries, coil and pipe distribution centers, shipyards, loading and unloading docks, warehouses, and other facilities where steel loads require lifting and transport. Versatile and compact, these lifting electromagnets can be adapted to various types of overhead cranes to meet diverse material handling requirements and ensure ease of operation.
The primary information of each type are outlined below
| |

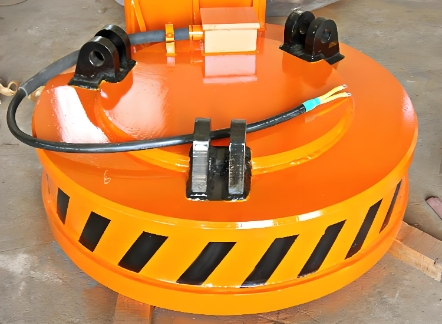

1. Circular lifting magnet | Description: Designed for handling ingots, pig iron, steel chips, steel and cast iron scrap, return scrap,etc Features: Diameter up to 2000 mm, power up to 40 kw; nominal load capacity from 500 kg to 75 tons; they are grouped into heavy, medium, small , aggregate and light duty scrap magnet. Applications: Steelworks, shipyards, foundries, scrap processing plants,ports, railway terminals and steel warehouses. |

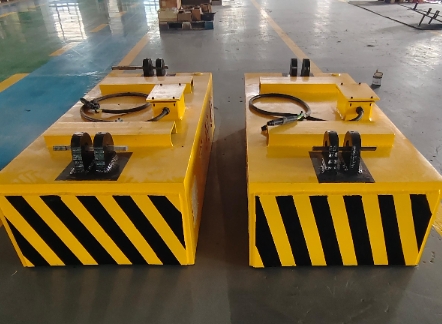

2. Rectangular lifting magnet
| Description: Lift heavy sheets, plates, rounds or square bars, bundles, billets, ingots, and other similar items Features: Nominal load capacity from 500 kg to 30 tons;handling material temperatures up to 650°c; be used individually or in groups and employed with a variety of suspension systems. Applications: Steelworks, shipyards, foundries, ports, railway terminals and steel warehouses. |

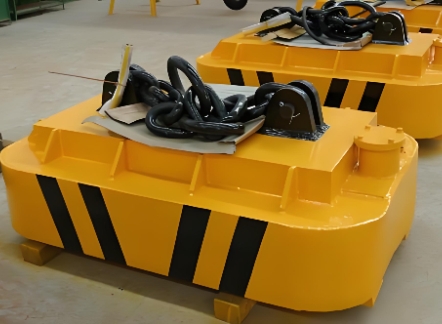

3. Oval electromagnet | Description: Steel scraps efficiently at narrow trunk-shaped container.Tailored lifting magnet with specific chute dimensions are available. Features: Tailored lifting electromagnet are available for specific chute dimensions. Applications: Steelworks, shipyards, foundries |

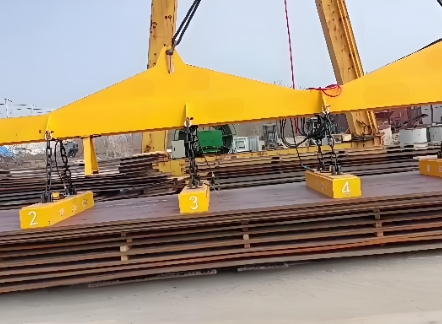

4. cross-beam lifting magnet | Description: Mainly handling long and larger object like steel pipe, steel plate, steel bars,steel tubes, billets, large-sized ingots,lifted by individually, in packages or bundles. Features: The beam allows using multiple magnets at a time Wide varieties of spreader beam models are available in many different design configurations. Fitted a single pick-up point and safety latches on each hook. Applications: Steelworks, shipyards, ports, railway terminals and steel warehouses |
Customizable Design: Tailored lifting magnets are available to meet specific requirements.
Robust and Reliable: Built for S3 75% intermittent periodic duty, they are suited for challenging and intermittent operation in demanding conditions.
Exceptional Strength and Efficiency: High magnetic force provides superior lifting capacity and handling efficiency.
Durable Windings: Constructed with high-quality aluminum tape windings, offering top-grade insulation and resistance to high temperatures, ensuring durability.
High-Temperature Insulation: Insulated to Class C standards, rated up to 300°C.
Efficient Duty Cycle: Operates at a 75% duty cycle with a maximum 10-minute cycle time.
Optimal Thermal Management: Excellent heat dissipation ensures reliable performance and longevity.
High-Temperature Handling: Capable of handling materials heated up to 650°C.
Adjustable Current and Force: Digital AC/DC converter enables precise control over magnet current and attractive force.
Rapid Magnetization and Demagnetization: Fast response times maximize operational efficiency.
Enhanced Efficiency: High handling efficiency compared to competing solutions.
Integrated Power and Control: Power and control systems seamlessly integrate with gantry crane operations.
