Crane Hook Block

Crane hook block

Crane hooks are a critical component of all lifting machinery, as any issue can lead to serious accidents.

Zomax crane hooks are manufactured in strict adherence to process requirements, with high-quality materials for maximum reliability. Our hook devices ensure durability, efficiency, and safety in handling your valuable products. Our engineers are available to assist with design at any time.For optimized performance for lifting equipment, our hooks can be combined with various pulley configurations, capacities, control options, and rope threading methods.

There are different types depending on the classification method：

Classified by hook shape: Single hook, Double hook

Classified by manufacturing method: Forged hook, Laminated hook

Classified by attachment form: Closed hook, Semi-closed hook

Other types: Electric rotating hook

Write Whatever You Want

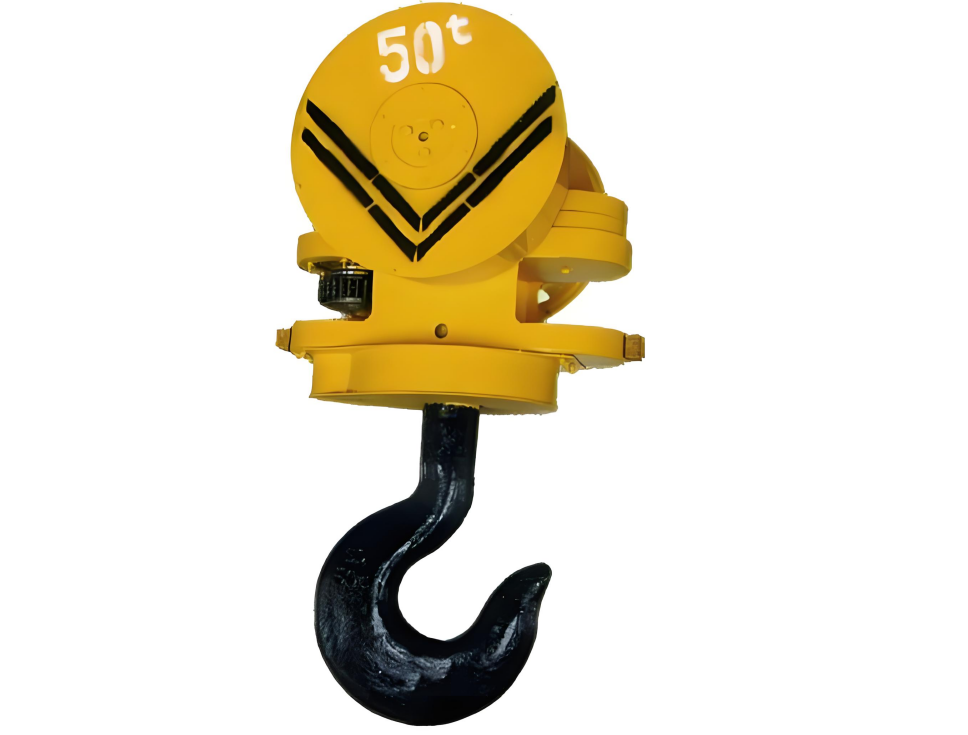

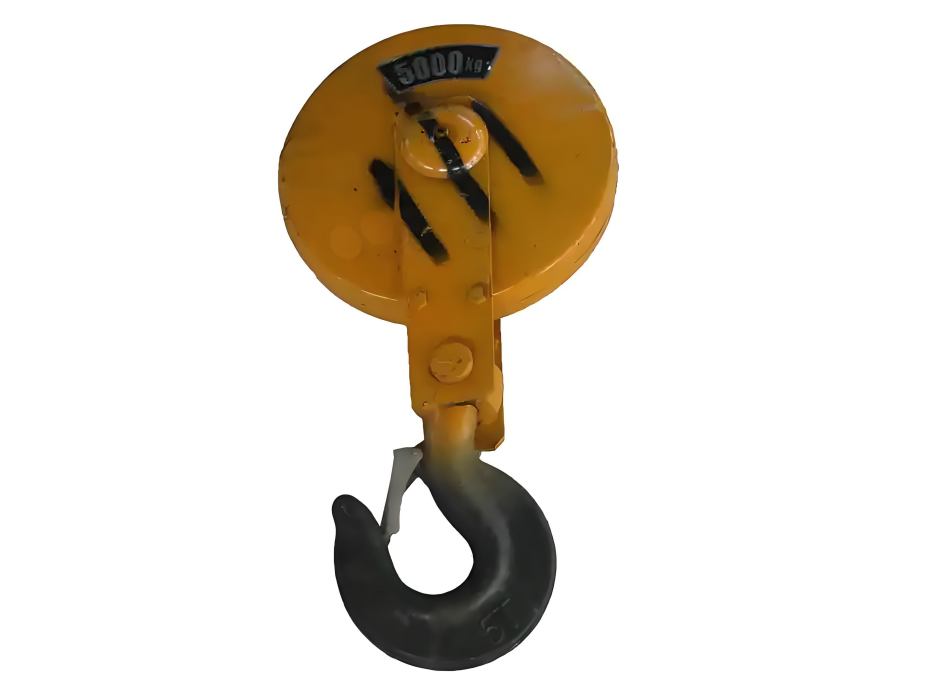

Single hook Double hook Electric rotating hook

Parameters

Capacity: 0.5-500 tons

Color: Customized

Material: High-quality mild steel or low-carbon alloy steel, including 20-grade mild steel, 16Mn, 20MnSi, and 36MnSi, or steel plate riveting

Style: C-Type or Ram’s Horn

Standard: GB, ASTM, JIS, DIN

Heat Treatment: Quenched and tempered

Drawing: Available upon request

After-Sales Service: Field installation, commissioning, and training

Application: Suitable for use in hoists, winches, trolleys, and cranes

Features

The Hooks are built with lifetime-lubricated, anti-friction bearings and constructed from hardened and tempered 34CrMoV steel
Each hook features a spring-loaded safety latch to prevent accidental release of the sling
With one or more pulleys integrated into the hook assembly to boost lifting capacity.
All hook assemblies are uniquely designed by Zomax with a simple, ergonomic structure for ease of use.
Crane hook assemblies are available in large quantities for new crane installations.

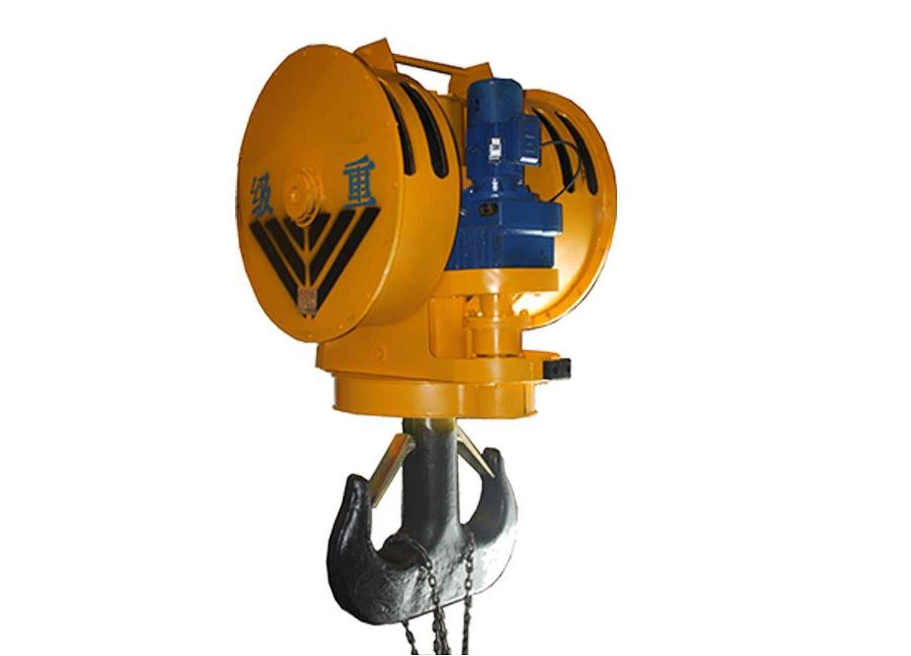

The electric 360° rotating hook enables easy placement of heavy or bulky loads in difficult-to-access areas while maintaining a secure grip on the cargo, enhancing convenience and efficiency.
Laminated hooks remain functional even if one plate is damaged, ideal for heavy-duty cranes due to their high safety and load capacity.
Lifting devices can be customized in capacity, pulley setup, control features, and rope threading to meet specific industrial requirements.

Want to learn more about crane hook block? Ware ready to help.
