Crane C Hook

Zomax crane C-hooks are constructed from high-strength alloy steel with high-density reinforcement plates and lifting lugs,feature multi-layer anti-rust treatment and precise CNC cutting. Lightweight yet durable, they ensure safe, efficient, and low-maintenance lifting.

We offer a range of C-hooks with lifting capacity from 0.5 tons to 32 tons, suitable for handling steel and paper rolls, and other industrial applications. Customized overhead hooks & roll lifters like Electric Rotating Devices, High-Temperature, Dual-Leg and Multi-Leg Designs and Digital Weighing Systems,are available for your specific applications.

Counter balanced C-hooks

1 Counter balanced C-hooks

Motorized Rotating C Hook

2 Motorized Rotating C Hook

Adjustable C hook

3 Adjustable C hook

Close Stacking C-hook for Narrow Aisles

4 Close Stacking C-hook for Narrow Aisles

Paper Roll C hook

5 Paper Roll C hook

C-hooks for Narrow Coil rolls

6 C-hooks for Narrow Coil rolls

Double Roll Lifting C-Hooks

7 Double Roll Lifting C-Hooks

C-Hooks for Container Loading and Unloading

8 C-Hooks for Container Loading and Unloading

The primary features,benefits and applications of each type are outlined below

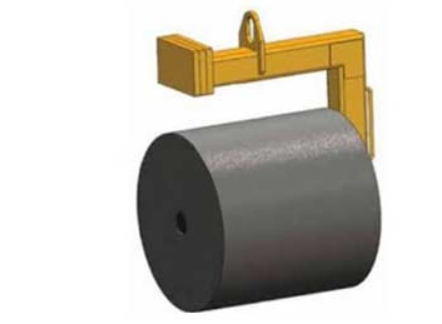

1. Counter Balanced C-Hook

Features：L-shaped design; bottom length matches coil width

Benefits：Full contact support; minimizes inner coil damage

Applications：Widely used for handling coil materials

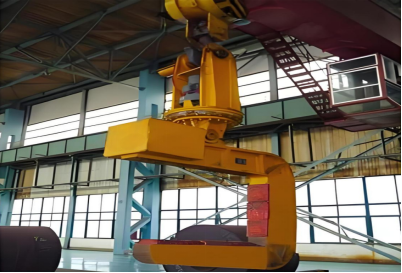

2. Motorized Rotating C-Hook

Features：Electric motor with 360° rotation

Benefits：Precise positioning; suitable for heavy-duty steel mill applications

Applications：High-intensity lifting tasks in steel mills

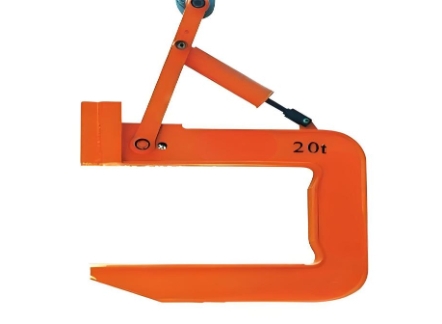

3. Adjustable C-Hook

Features：Flexible and adjustable design

Benefits：Handles rolls of various sizes

Applications：Suitable for a wide range of roll handling

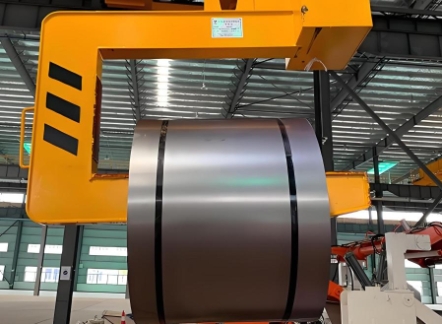

4. Close Stacking C-Hook for Narrow Aisles

Features：Short lifting arm for narrow aisles

Benefits：Reduces aisle space requirements; increases storage capacity

Applications：Ideal for compact stacking in warehouses

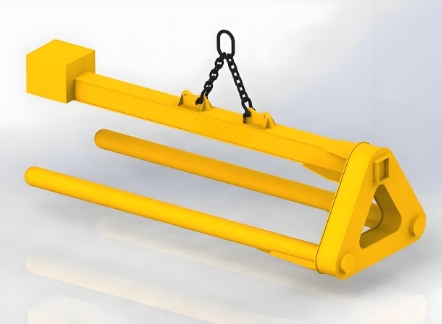

5. Paper Roll C-Hook

Features：Lower arm inserts into roll core

Benefits：Ensures safe handling of paper rolls

Applications：Used in paper roll loading and unloading

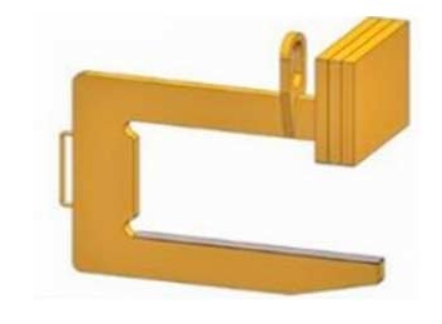

6. C-Hooks for Narrow Coil Rolls

Features：Designed for smaller, narrower coils

Benefits：Lightweight and compact

Applications：Suitable for handling narrow coil materials

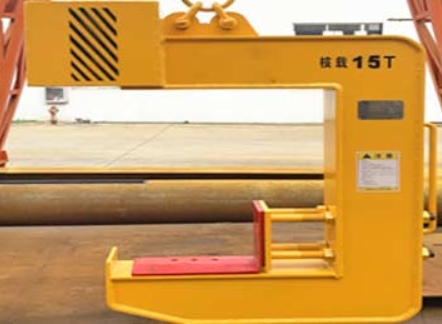

7. Double Roll Lifting C-Hook

Features：Lifts two rolls simultaneously

Benefits：High stability; efficient for heavy-duty tasks

Applications：Improves efficiency in steel mills and manufacturing

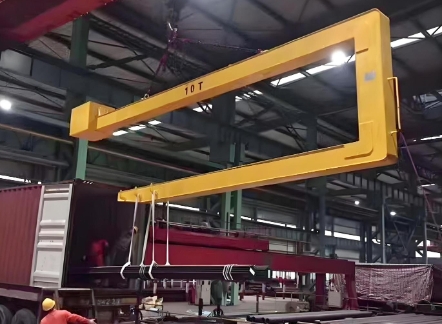

8. C-Hooks for Container Loading and Unloading

Features：Designed for long, heavy materials

Benefits：High load-bearing capacity and stability

Applications：Ideal for container operation

Unsure which hook to choose?

Our professional engineers can recommend the appropriate equipment based on your specific application needs.

Additional details about the hook

Main structure of the crane c-hooks

Spreader: Constructed from high-quality low-alloy steel and steel pipe; offering lightweight, bending resistance, torsion resistance, and extended service life.
Counterweight Iron:(except C-hooks for Narrow Coil rolls) Balances the spreader by adjusting the center of gravity to ensure stable, aligned lifting.
Protective Nylon Plate: Attached to the leg to prevent damage to coils or paper rolls and prolongs the working life of the hook.
Guide Handle: Most hooks equipped with a guide handle, offering improved control and maneuverability, making it easier to position and secure the coil during lifting.
Optional Features:

Customization based on load weight, configuration, headroom, and lifting area

Available options include high-temperature resistance, motorized rotation, digital weighing systems, protective pads, remote controls, and specific configurations for

general storage or steel mills.

Advantage of Zomax Crane C-hooks

1. User-Friendly Design

· Easy Operation: Allows operators to manage loads efficiently with minimal training.

· Optimizes Efficiency: Enhances overall operational productivity.

2. Durability and Reliability

· High-Strength Materials: Constructed from durable alloy steels to handle heavy, frequent loads.

· Wear-Resistant: Built to withstand harsh environments, reducing equipment failure.

· Consistent Performance: Reliable under various conditions, ensuring safe and efficient load handling.

3. Reduced Maintenance Needs

· Simple Design: Fewer moving parts, leading to less frequent maintenance.

· Ease of Inspection and Repair: Simple structure allows quick inspections and repairs.

· Cost-Effective: Durability and low maintenance requirements reduce overall operational costs and downtime.

4. Tapered Load Arms: Enables smoother access to coils or rolls, minimizing material damage.

5. Customization Options:

· Electric Rotating Devices: Enables rotation for precise load positioning.

· High-Temperature Applications: Special coatings for safe operation in elevated temperatures.

· Dual-Leg and Multi-Leg Designs: Offers added stability for handling larger loads.

· Digital Weighing Systems: Provides precise load measurements to prevent

Maintenance and Care of Crane C-Hooks

1. Daily Maintenance Practices

· Storage and Protection: Store in clean, dry areas; use covers outdoors; handle carefully to avoid damage.

· Cleaning and Lubrication: Regularly clean to remove dirt; lubricate moving parts to reduce friction and wear.

2. Inspection and Troubleshooting

· Visual Inspections: Check frequently for wear, cracks, deformation, or corrosion.

· Load Testing: Conduct periodic tests to confirm load capacity and safety.

· Troubleshooting: Address issues like uneven loads, engagement difficulties, or noises by adjusting or repairing parts.

3. Professional Services

· Consultation: Seek expert advice to select and customize the right C-Hook.

· Installation: Ensure professional setup and alignment to enhance safety.

· Maintenance Services: Schedule regular professional inspections, repairs, and upgrades to maintain performance and safety compliance.

Custom Capacity Solutions

1. Design Modifications

· Increased Load Capacity: Engineered for higher weight capacities with reinforced structure.

· Specialized Shapes and Sizes: Altered dimensions to fit specific load profiles or unusual shapes.

2. Material Enhancements

· High-Strength Materials: Uses advanced alloys for high strength-to-weight performance.

· Corrosion-Resistant Coatings: Specialized coatings for longevity in harsh environments like marine or chemical settings.

3. Operational Adjustments

· Weight Distribution: Adjustments for better balance and handling of irregular loads.

· Integration with Equipment: Options like electric rotation or digital weighing for precise handling.

4. Safety Enhancements

· Additional Safety Features: Enhanced locks or sensors for secure load stability.

· Regulatory Compliance: Designed to meet specific industry standards for assured safety and performance.

Application

C-Hooks are vital tools across various industries, providing efficient handling solutions tailored to specific needs. In steel mills, they facilitate the transport and management of heavy coils, while in cold-rolled sheet production, they ensure delicate sheets are handled carefully to prevent damage. Warehouses and logistics use C-Hooks for organized storage and swift retrieval of materials. In the papermaking industry, they help move large rolls of paper without compromising quality. The oil and gas sector relies on C-Hooks for safely handling heavy pipes and materials, while manufacturing plants utilize them for versatile material transport. Overall, C-Hooks enhance safety, efficiency, and productivity in material handling across these sectors.
