The primary details for each product are outlined below

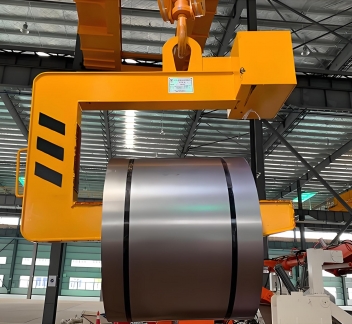

1. C-hook

Description：“C” shape for easy insertion and lifting of steel coils in horizontal orientations

Features：

Capacity : 0.5-32 tons

Available in multiple designs and can be used with various capacities

Applications：Handling steel and paper rolls, and other industrial applications

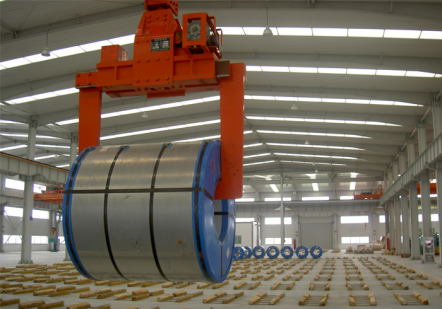

2. Horizontal Coil Lifter

Description：Designed to handle horizontally oriented steel coils,the jaws can be turned over 90°

Features：

Capacity :8-50 tons

The lower carrying arm is completed in a cone for easy C-hook access to the coil;

with an electrical detection device or a polyurethane protection device

Applications：Handling horizontal steel coils in the hot & cold rolling mills

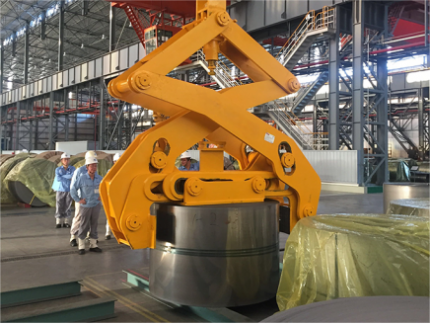

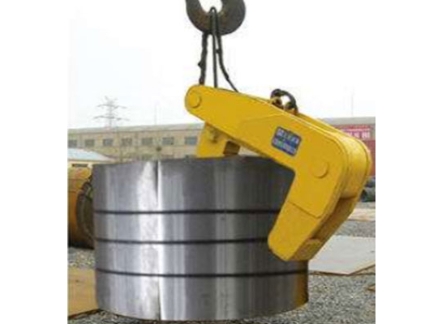

3. Vertical coil lifter

Description：Designed to lift vertical steel coil, the clamp’s clamp legs move individually and hold the two walls at the diametric direction operation.

Features：

Capacity :8-50 tons

The clamp and steel coil hasn’t relative slip, small contact stress, safe operation

Applications：Handling vertical steel coils in any applications where vertical coil handling required

4. Tilting coil tongs

Description：Heavy-duty double-plate tilting chain, forged from 40Mn with a safety factor of 3

Features：

Capacity :Up to 40 tons

Delivers efficient, safe, and precise handling, making it ideal for versatile applications.

Applications：Used for flipping coils between vertical and horizontal orientations.

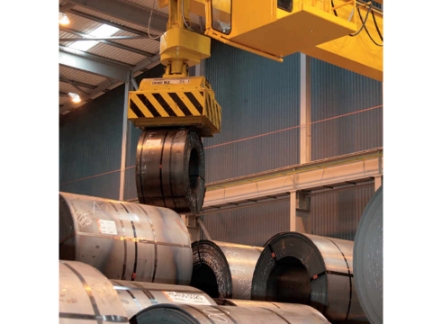

5. Electromagnetic Coil Lifter

Description：Uses electromagnetic force to lift steel coils, available in vertical, horizontal, and general-purpose designs

Features：

Capacity :Varies by application

High-temperature models handle temperatures from 100℃ to 600℃

Applications：Ideal for mills and industrial

Applications：Settings requiring flexible coil orientation and annealing operations.

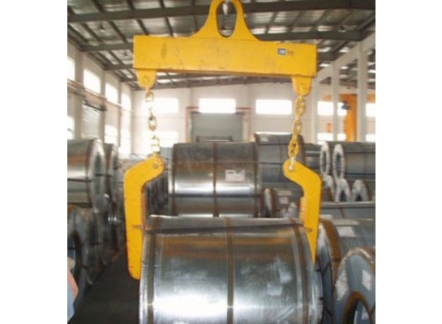

6. Double Leg Coil Lifter

Description：Designed with less aisle space, made of high tensile alloy steel,Customized double leg coil lifter are available

Features：

  Capacity :Up to 32 tons

  Economical, easy-to-use, adjustable coil width, optional coil protection

Applications：Common for standard coil lifting in applications needing less aisle space.

*Customized Coil Solutions

Description：With process design, we can process and provide quality coil handling devices for your unique handling equipment

Features：

 Capacity :tailored

  Features can include enhanced safety mechanisms, protection layers, size and shape adaptations.

Applications：Specific industrial applications requiring custom below-the-hook devices and process integration.
