Zomax Grab Buckets are designed based on the bulk material's nature to be handled, focusing on boosting productivity, reducing costs, and enhancing safety and sustainability.
We use premium high-tensile, wear-resistant steel, achieving competitive pricing without compromising quality. An optimized manufacturing process further ensures shorter delivery times.
We offer varies of grabs with volumes from 0.25 to 30m³ and load capacities from 0.5 to 70 tons. We also provide customized clamshell grabs for special requirements.
There are different types depending on the classification method：
Classified by grab shape: Clamshell Grab 、Orange Peel Grab（also called Cactus Grab Bucket or Polyp grabs）、Tong grabs
Classified by power supply type: Mechanical Rope Grabs (includes single, double, and four-rope options)、Hydraulic Grabs
Classified by loading application: Electric stainless steel grabs、Wood Grab bucket or log grabs、Coal Grabs、Steel scrap grab、Waste grab & garbage grab bucket、
Coal grabs、Scissor grab bucket
Main characteristic for each type of above grab
| |

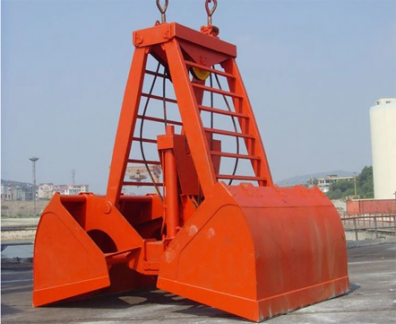

1. Clamshell Grab | Description: Two opposing bucket shells are main components Key Features: With leaking proof design Common Applications: Grabbing silty, clayey and sandy objects such as fertilizer and grains etc.
|

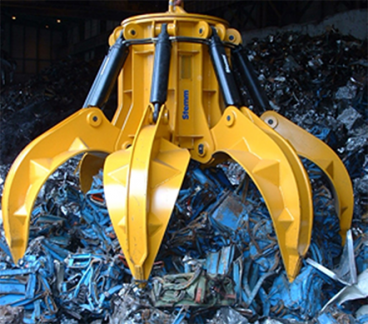

2. Orange peel grab | Description: Designed with multiple claws from 4 from to 8 tines Key Features: Depending on the material to be processed, with an open, half-open or closed claws. Common Applications: Used for large irregular pieces handling like scrap metal, wood chips, garbage, etc.
|
3.Tong grabs | Description: Safety end stops,Special anti-wear manganese steel penetration teeth Key Features: Interchangeable Maximum penetration, dragging and compacting force.High yield strength steel reinforced structure Common Applications: Handling of marc, seaweed, manure, agricultural waste, garbage, composite, very light industrial refuse.
|
4. Mechanical grabs | Description: Rely on mechanical systems like ropes, chains, or cables to open and close the shells Key Features: Tailored for specific load types with single, double, or four-rope options, for specific conditions like underwater Common Applications: Bridge cranes, gantry cranes for bulk loads
|

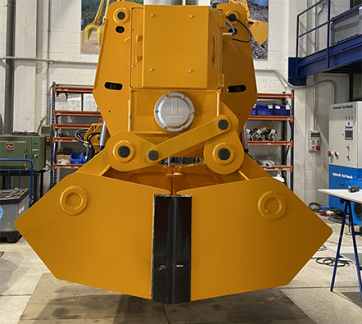

5. Hydraulic grabs | Description: Use hydraulic cylinders and valves to control the shells’ movement Key Features: Strong grip force, high automation,ideal for irregular-shaped and heavy loads Common Applications: Steel mills, recycling, waste management |
Wear-resistant and high tensile steel,Long lifespan
Optimal penetration due to moveable suspended claws
Robust arm construction with pivot point protection
100% symmetrical closing
Available with built-in rotators that allow for 360-degree rotation if necessary
Reduction of stress in grab construction
Short delivery times and enhanced ease of maintenance
Competitive price point
Worldwide availability of parts
Easy assemble and disassemble
Optimized production for quick delivery
Enhanced safety by reduced deployment of trimming machines and staff
Efficiency and Profitability Investing ,significant time and cost savings on your project
