Spreader beams, lifting beams and magnet beams are below-the-hook lifting devices that lift loads with single or multiple attachment points. They act as a crosspiece for spacing the hooks or chains that hold loads such as bundles, rolls, cylinders and machinery.

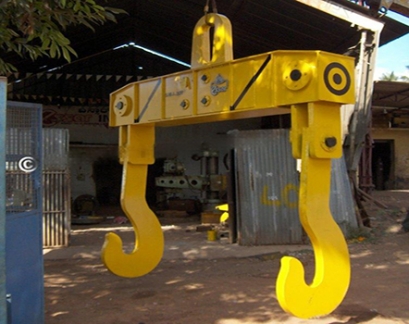

1.ladle hook&beam
| Description:
Technical Data: Capacity: 10t to 177.5t Working duty: M1-M8 Standard：DIN 15401 Standard Hook Body Material: Q355 Axis Pin Material: 40Cr Painting: Shot blast Cleaning Dispose- 2 Grade, Epoxy Primer, Anti-corrosion Paint, Polyurethane surface painting
Features: High-Quality Construction: Made from premium low-carbon alloy steel for strength and reliability. Durable J-Hooks: Crafted from high-temperature-resistant alloy steel, ensuring consistent performance under heavy use. Enhanced Strength Design: Laminated, riveted, and welded structure improves overall durability and toughness. Safety Features: Forged chase blocks and pins provide added security, with safety latches preventing disengagement of lifting ropes. Maintenance Efficiency: Removable wear strips and bronze bushings allow for easier upkeep. Protection for Trunnions: Palm bushings guard trunnions from wear, secured in place by radial keys. Flexible Suspension Options: Beam can be suspended with hooks or pulleys, with custom configurations and additional attachments available for handling extra loads.
|

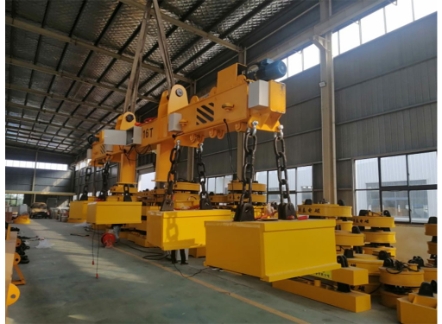

2.Telescopic Magnetic beam | Description:
Technical Data: Spreader Beam Weight: Up to 21t Spreader Beam Length Options: 12–16m or 14–18m Extension Time: 30 seconds to extend, 30 seconds to retract Rated Lifting Capacity: Up to 24t Magnet Specifications: Length 3000–20000mm, Width 900–4900mm
Features: Heavy-Duty Design: The beam structure is designed for high-demand applications in steel mills, paper mills, distribution centers, and service centers. Adaptable Suspension: Equipped to transport additional loads (e.g., bundles, rolls) using belts, chains, or ropes, Optional Magnetic Attachment points (telescopic electromagnetic beam) for versatile operation. Rotating Mechanism: Box-type double-beam structure, powered by two integrated reducers, provides vertical wheel guidance, allowing smooth extension within the fixed beam and automatic adjustment of magnet spacing. Safety Enhancements: Includes built-in limiters, buffers, and other safety mechanisms. Key Advantages: Broad application range, flexible operation, high productivity, reliable safety, and a high degree of automation. |

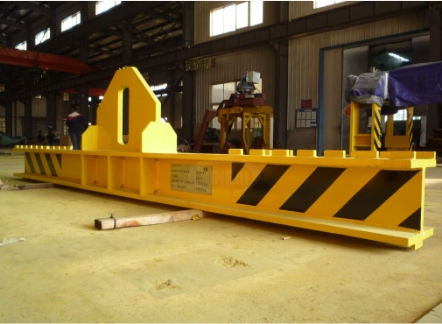

3.Fixed lifting beam | Description： Features： Additional Load Accommodation: Can be equipped with swivel hooks or other connection points to manage extra loads; magnets can be added as needed. Standard Compatibility: Central suspension fittings are compatible with standard crane hooks. Flexible Attachments: Beams can be fitted with various suspension attachments upon request to accommodate additional load requirements. Multi-Point Beam Options: Available with three-point or four-point configurations. Versatile Sling Choices: Includes options for loose slings, such as belts, chains, or ropes. Custom Beam Sizes and Types: Any required size and type of custom beam can be provided. High Load Capacity and Rigidity: Designed with heavy-duty load-bearing capacity and rigidity, ideal for handling loads with high flexibility |
Lifting beams are available in a range of capacities and designs, making it essential to select the correct type for your specific application, with various factors to consider.
For expert guidance on crane lifting beams or to receive a free consultation on customized designs and pricing, we are here to help.
