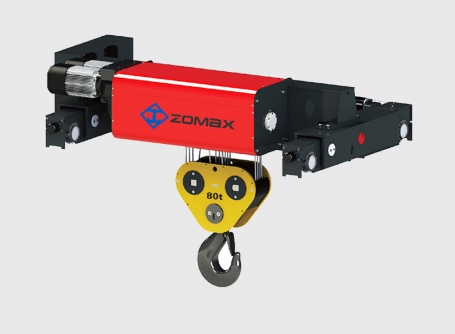

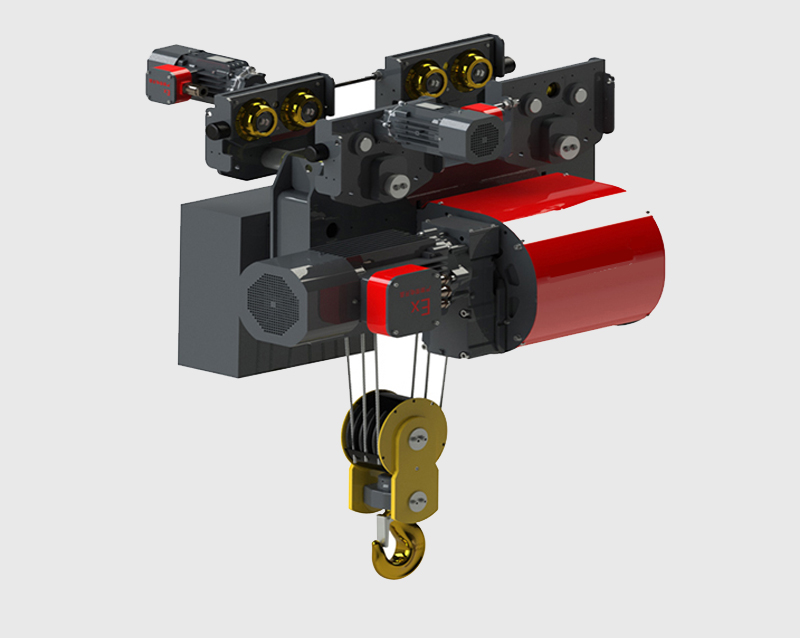

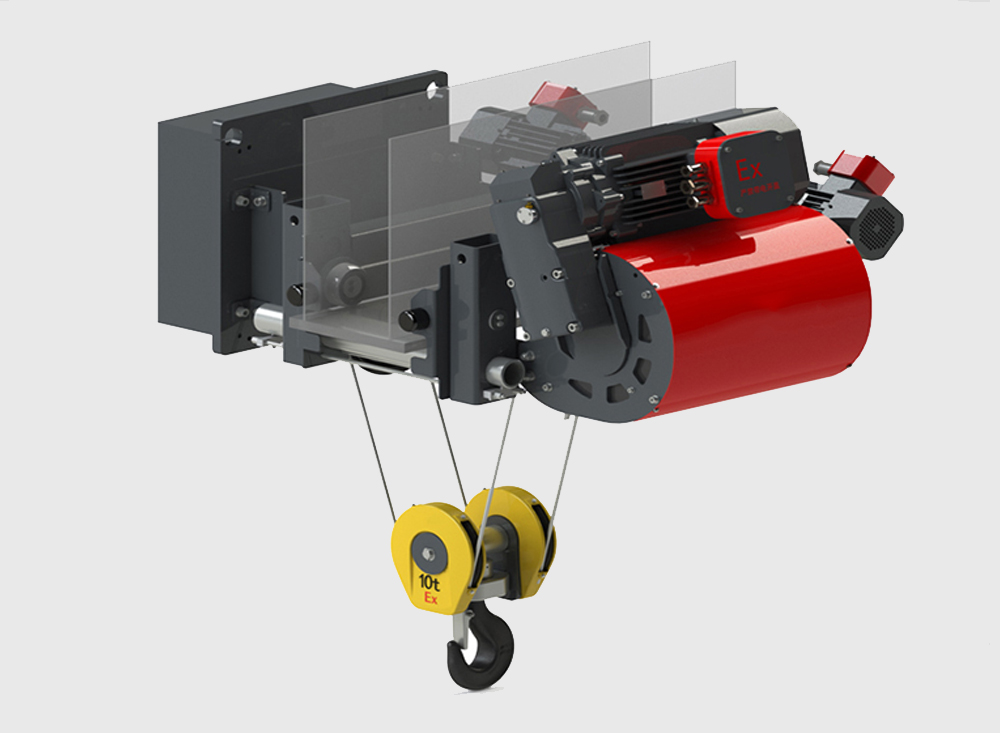

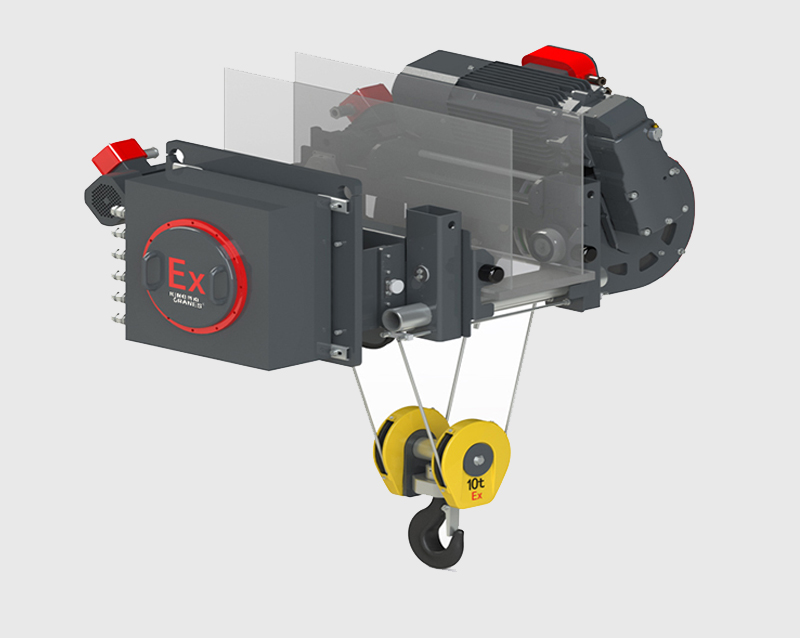

The Zomax FEM Explosion-Proof Wire Rope Electric Hoist is engineered for hazardous environments, delivering high performance, long-term reliability, and minimal maintenance. It ensures safety and efficiency throughout its service life, ensuring trouble-free operation throughout the lifespan.
With a load capacity of up to 20 tons, it is suitable for areas with explosive gas or vapor mixtures, classified as IIA, IIB, IIC, and T1-T4, in Zones 1 and 2. It has been certified after passing the explosion-proof performance test by the Quality Supervision and Inspection Center of Explosion-Proof Electrical Products.
For expert consulting and tailored design, our engineers are here to help. Contact us today.
Designed on the base of FEM wire rope electric hoist, with low headroom feature
Designed and tested specifically to fulfil ATEX and IECEx requirements for explosive atmospheres in Zones 1 and 2
Wide operating ambient temperature range from -20 °C to +40 °C enables the safe use of the equipment in various locations throughout the year.
All required parts are properly Ex-proof rated and tested for the safety of the equipment.
All spare parts are standardized and interchangeable, making the electric hoist maintenance simple and easy.
The electric hoist is designed and manufactured in accordance with GB3836-2000 standards.
Pendent control or remote control options are available.
Lifting capacity | Up to 20 tons |
Lifting height | Up to 30m |
Lifting speed | Double speed |
Explosion-proof level | ExdIIBT4 or ExdIICT4 |
Hoist type | Low head room |
Motor Type | Heavy-duty squirrel-cage motor |
Maintenance Requirement | Maintenance-free |
Hook | High-quality carbon steel |
Trolley Type | Nylon trolley |
Rated voltage： | 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC |
Temperature | Standard temperature: -20 - +40°C |
Control options | Pendant / remote |
Environment | Indoors |
Working class | M3-M5 |
Low headroom, compact design and free maintenance
Helps maintain safety of operators and facilities in potentially explosive environments
One EX certificate for the complete hoist
Enhanced Safety: Spark-proof design and Ex-protection ensure safe operation in hazardous environments.
High Performance: Maximum load capacity of 20 tons and efficient motor design for reliable lifting.
Versatility: Multiple duty classes and advanced configurations cater to various operational needs.
Durability: High-quality materials and maintenance-free components extend service life.

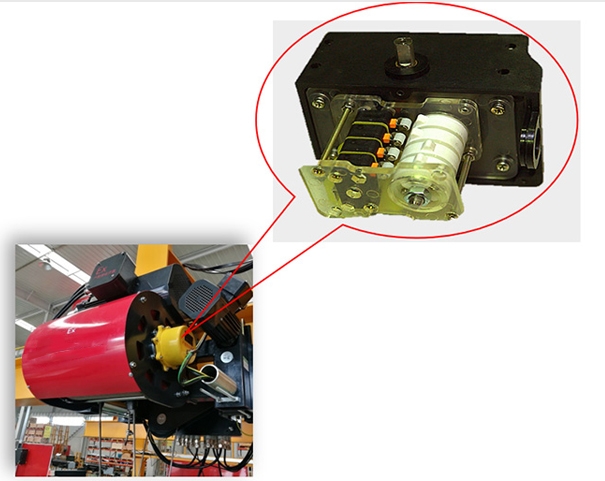

Easy Operation: User-friendly features like dual-limit switches and smart driving enhance operational efficiency.
Explosion-proof electric wire rope hoists are commonly used in hazardous environments where explosive gases or dust are present, such as in industrial workshops and plants in mining, chemical, petrochemical, power generation, pharmaceutical, and food industries
